Description

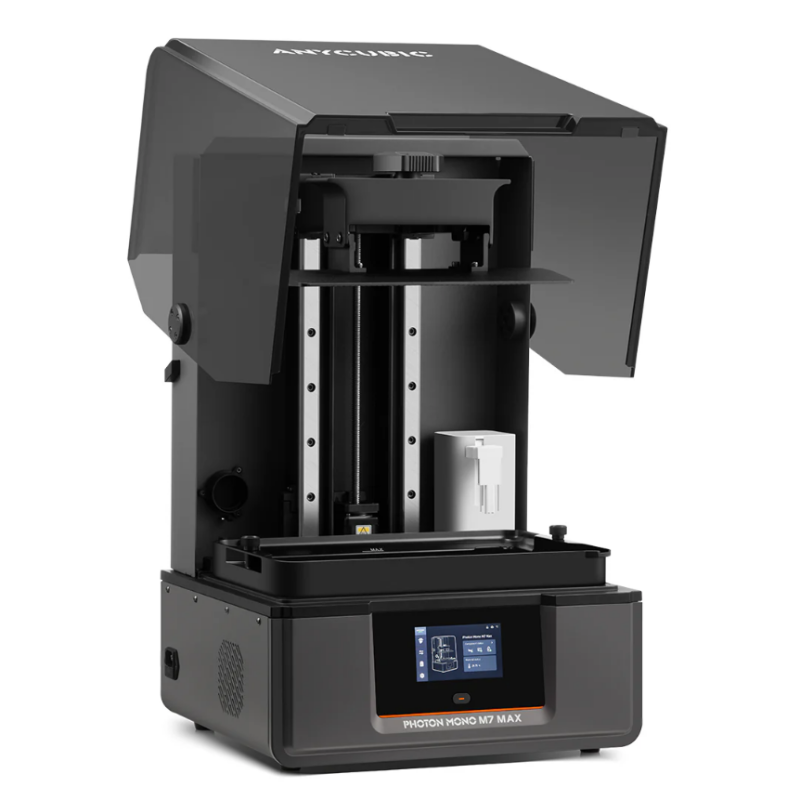

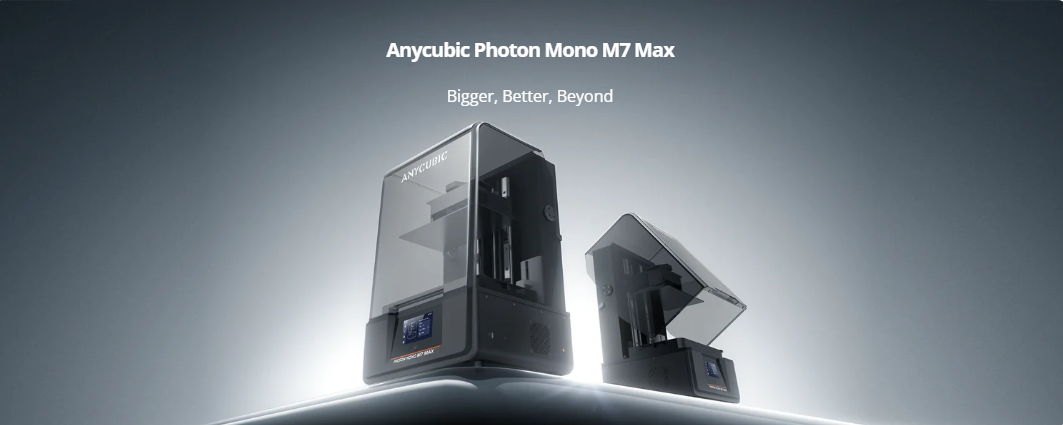

The Anycubic Photon Mono M7 Max is a large-format resin 3D printer designed for sizeable models and batch production.

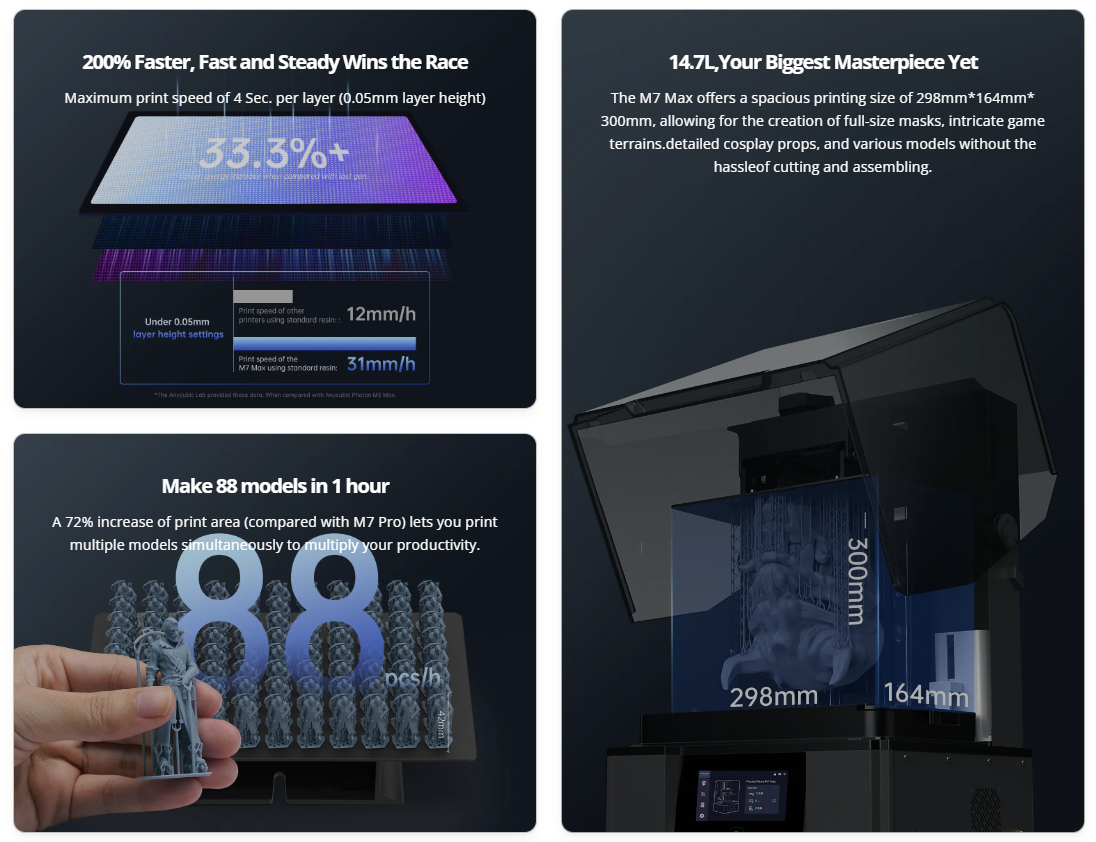

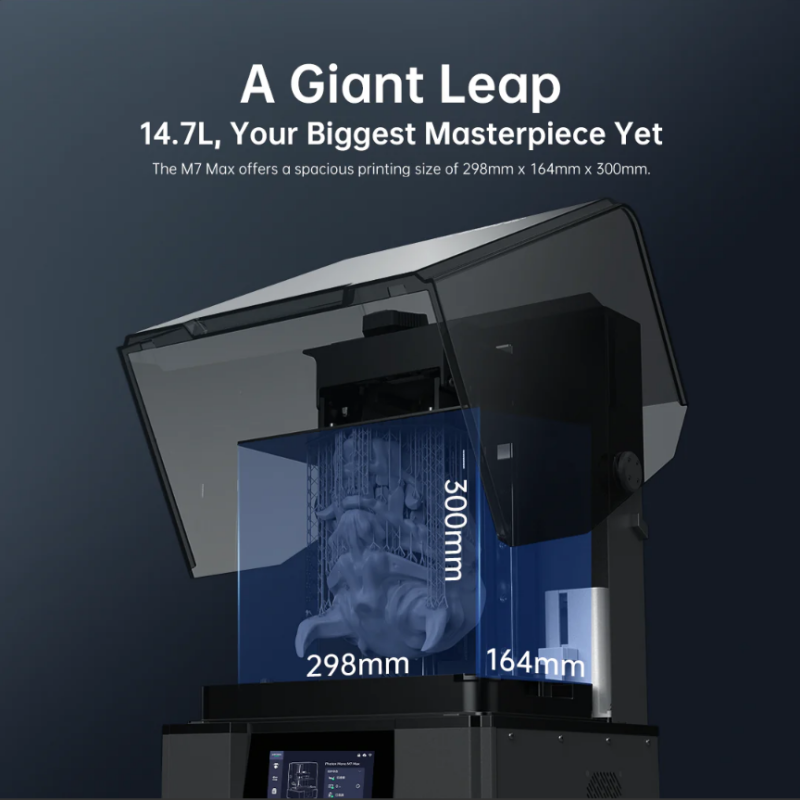

- Build volume: 298 × 164 × 300 mm (14.7 L)
- Display: 13.6-inch 7K monochrome LCD
- XY resolution: 46 × 46 μm
- Print speed: up to 63 mm/h with standard resin and 86 mm/h with high-speed resin at 0.1 mm layers

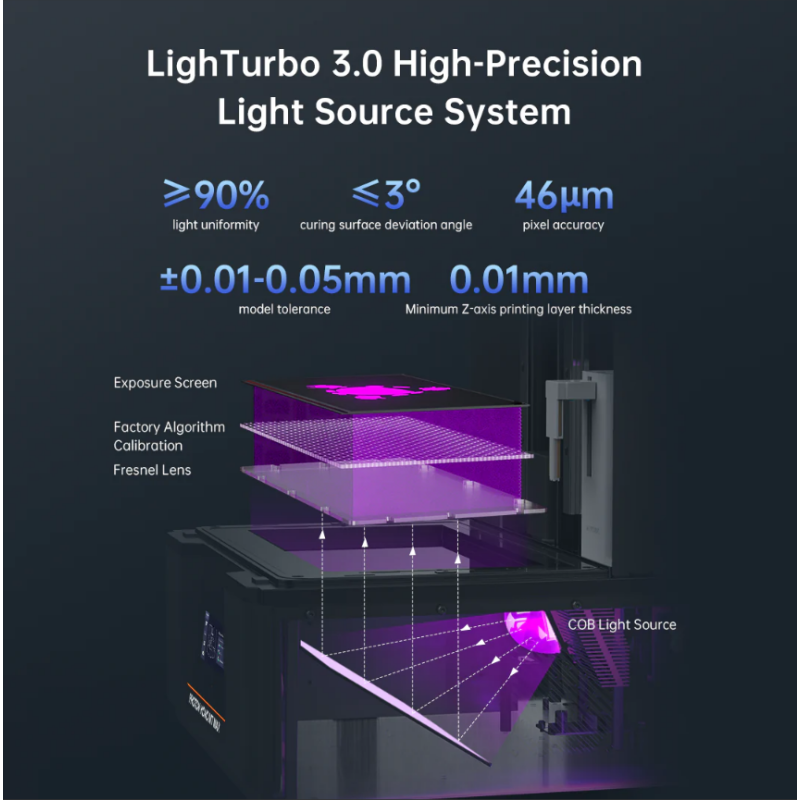

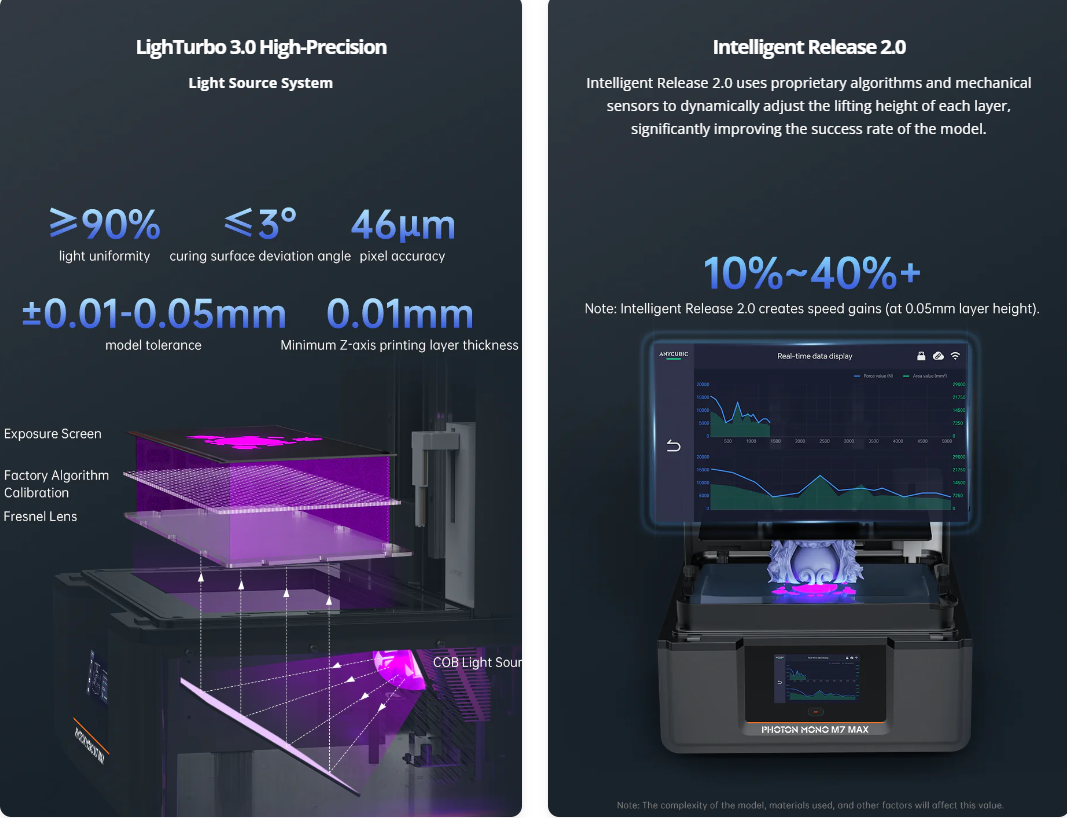

- Optics: COB light source, Fresnel lens and light-uniformity algorithm
- Mechanics: dual linear rails with 10 μm precision

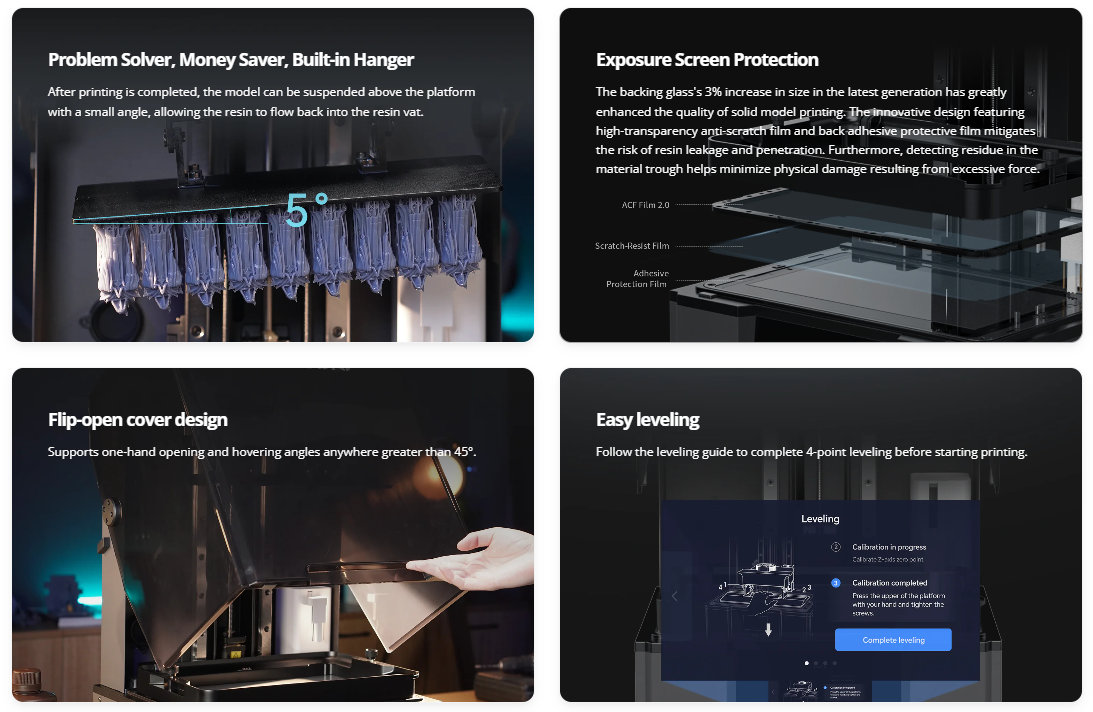

- Release film: improved ACF film

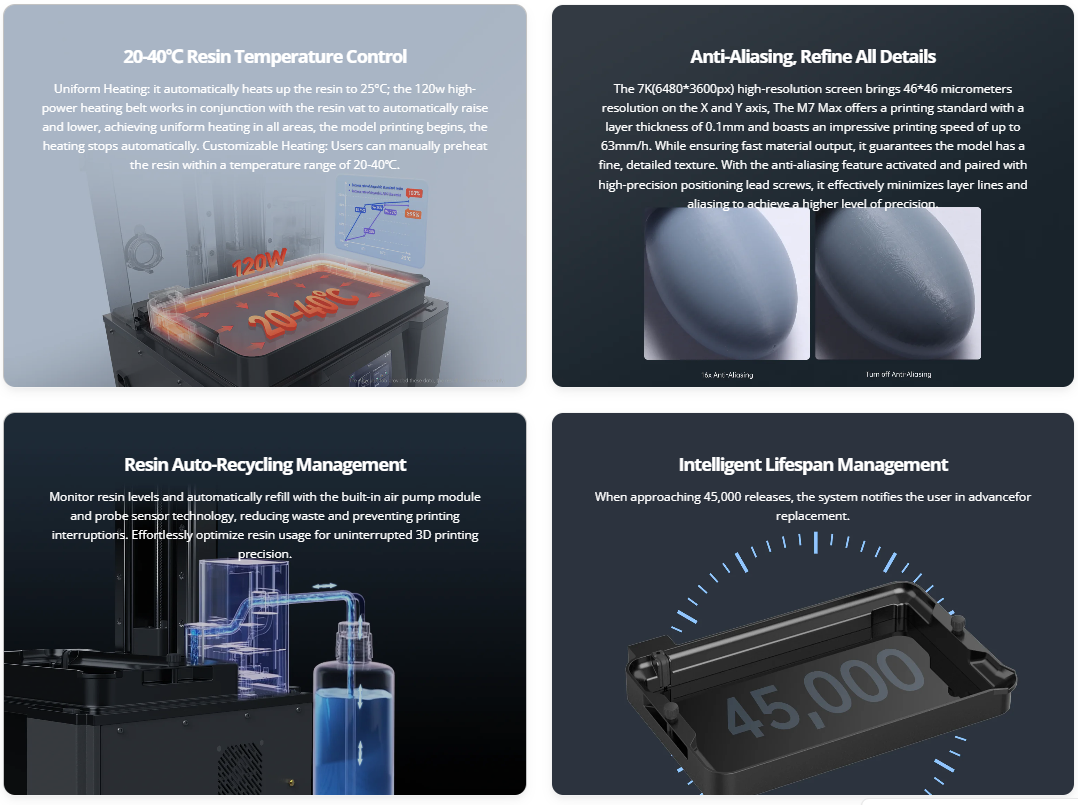

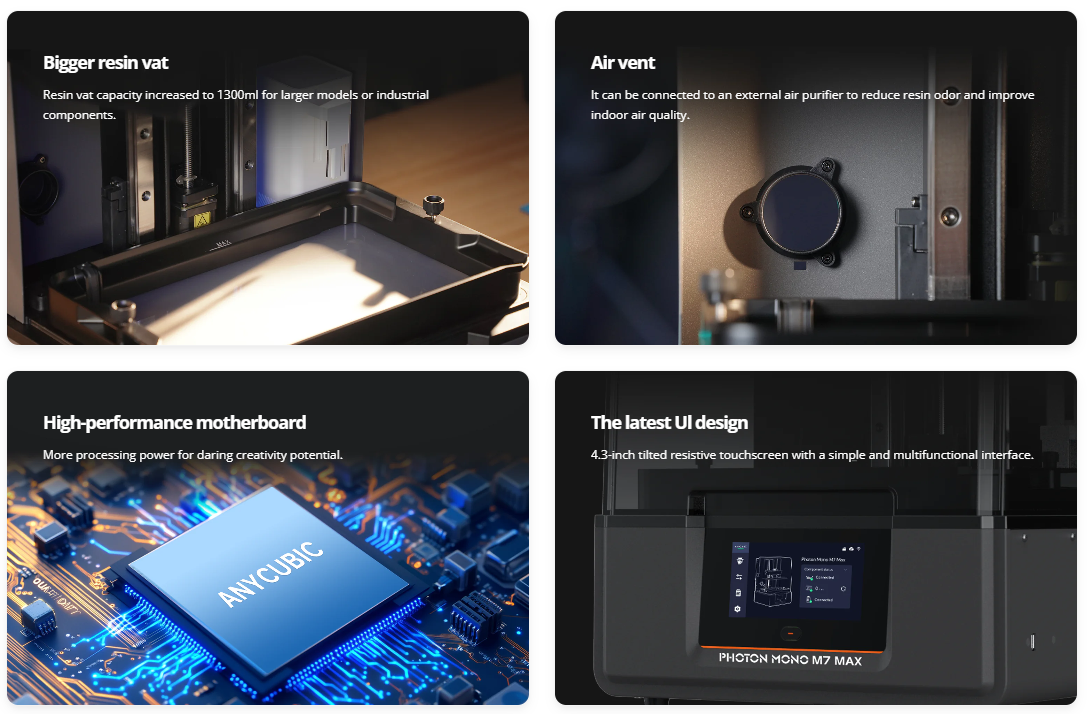

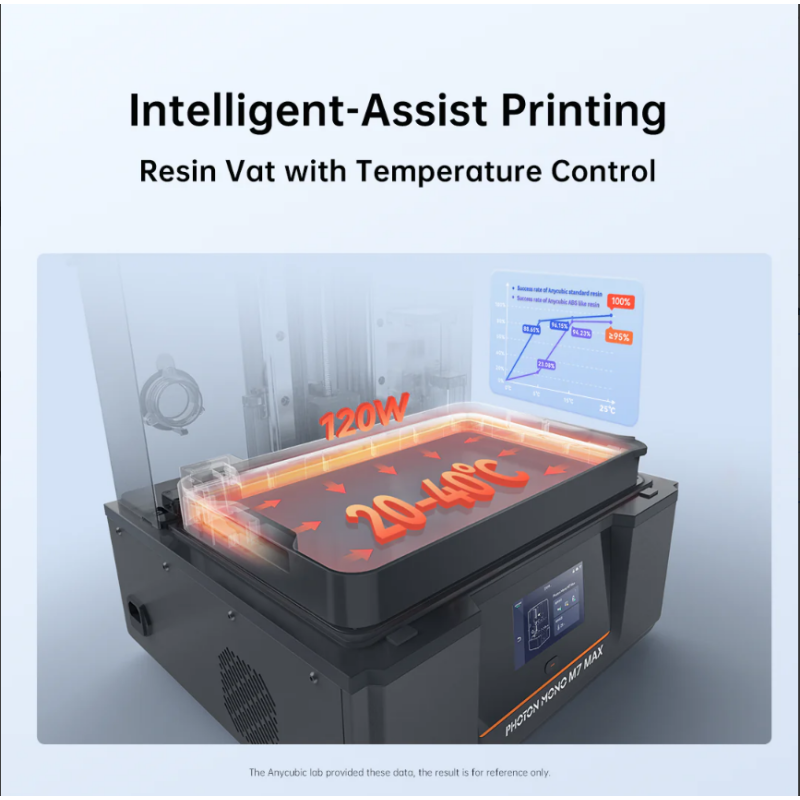

- Resin vat: ≤1.3 L integrated vat with scale markings

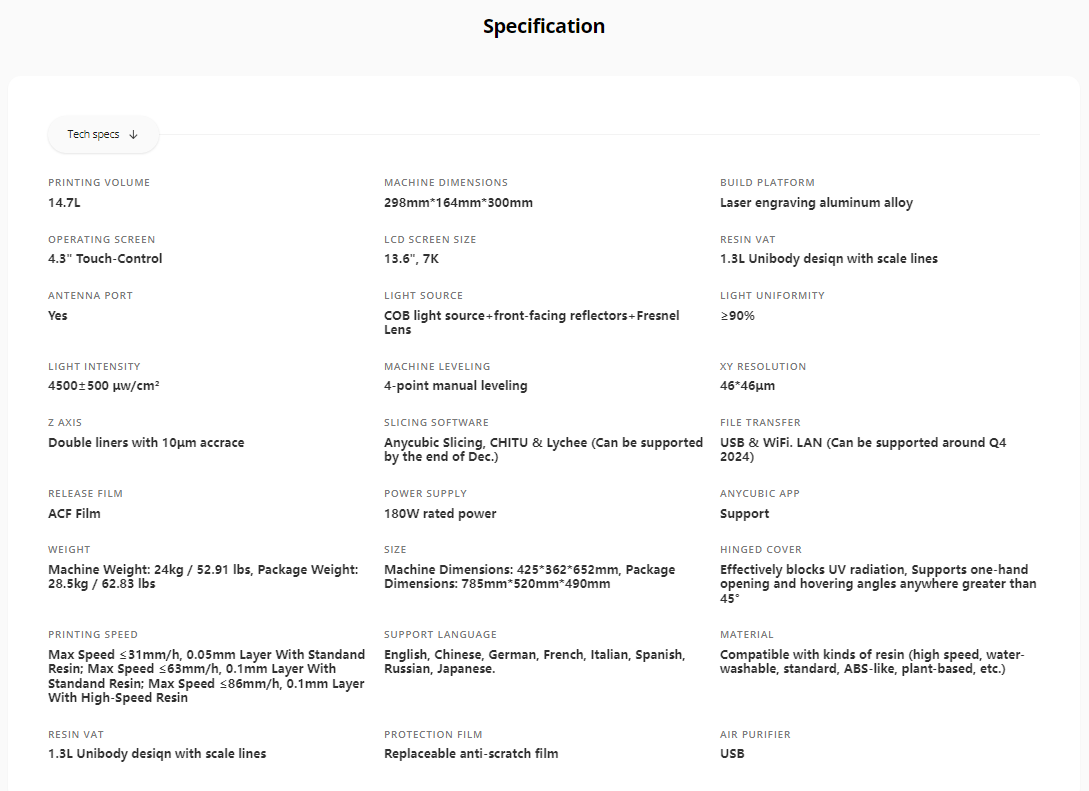

Specifications
| Build Volume | 298 x 164 x 300 mm (14.7 L) |
| Technology | LCD 7K (13.6" monochrome LCD, 46 x 46 um XY resolution) |
| Layer Thickness | 0.01 – 0.15 mm |
| Print Speed | Max 63 mm/h; standard resin (0.1 mm) up to 63 mm/h; high-speed resin (0.1 mm) up to 86 mm/h |
| Light Source | COB light source + Fresnel lens + light uniformity algorithm, 4500 +/-10% uW/cm2 |
| Connectivity | USB / Wi-Fi / LAN |
| Machine Dimensions | 425 x 362 x 652 mm |
| Machine Weight | 24 kg |
| Power Supply | 180 W; EU plug / other plug types |

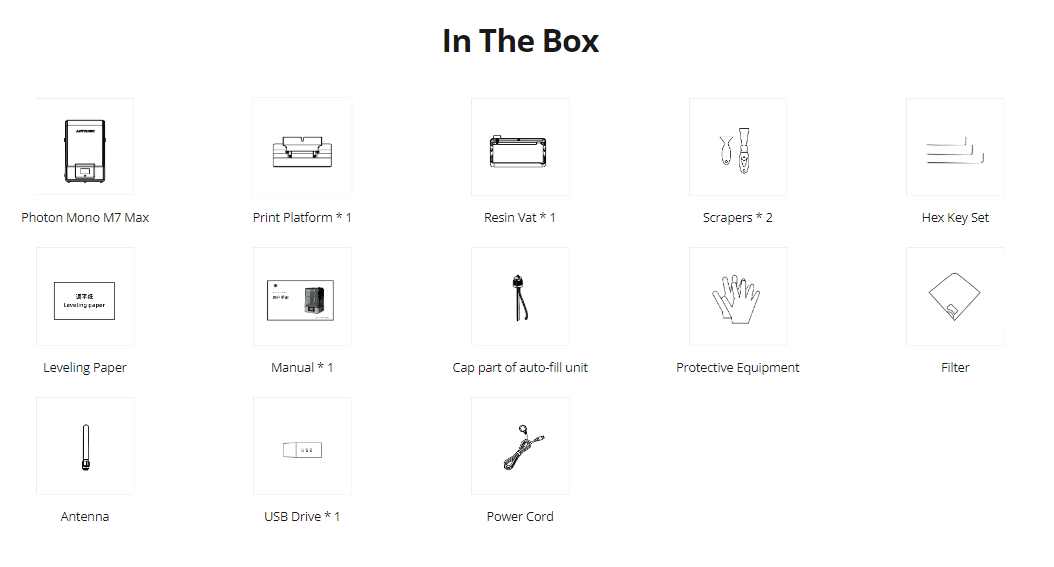

| Package List | Printer, print platform, resin vat, auto-fill unit cap, hex key set, filter, scrapers x2, leveling paper, USB drive, antenna, power cord, manual |
Request a quote for wholesale pricing, bulk orders and current lead times.
