Description

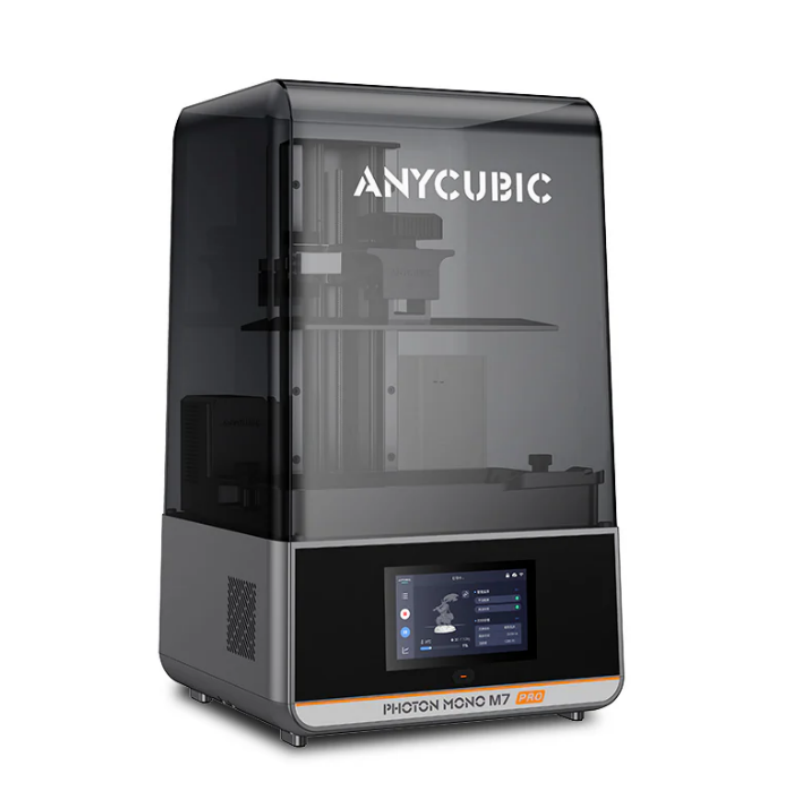

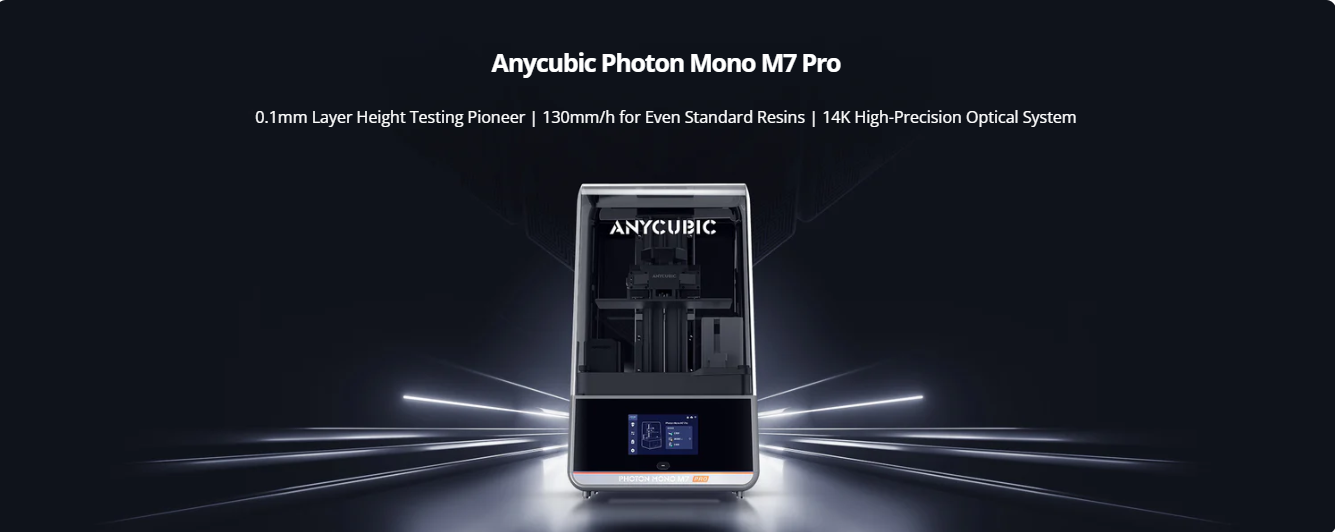

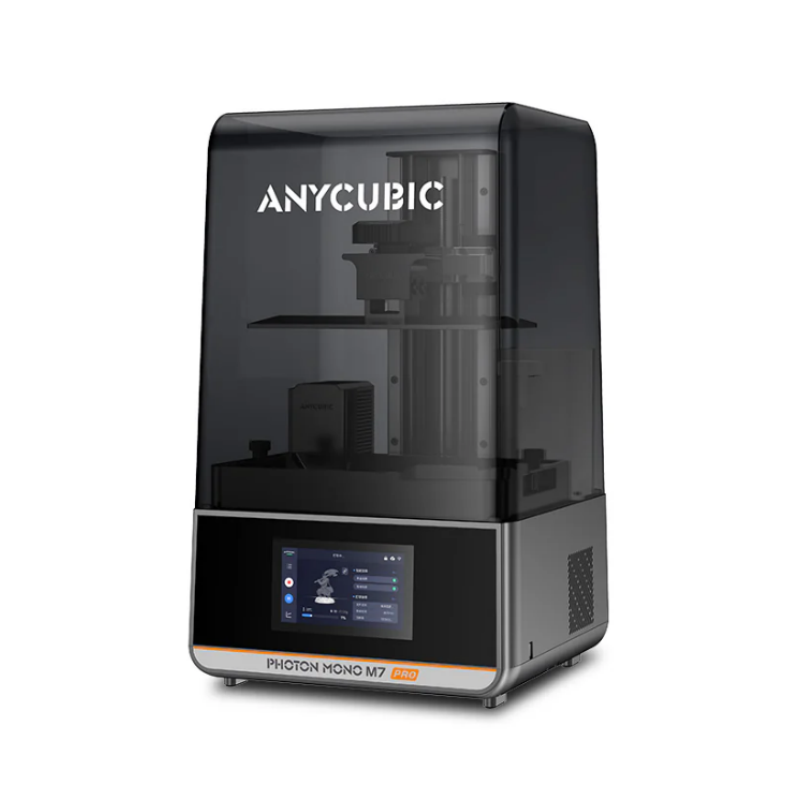

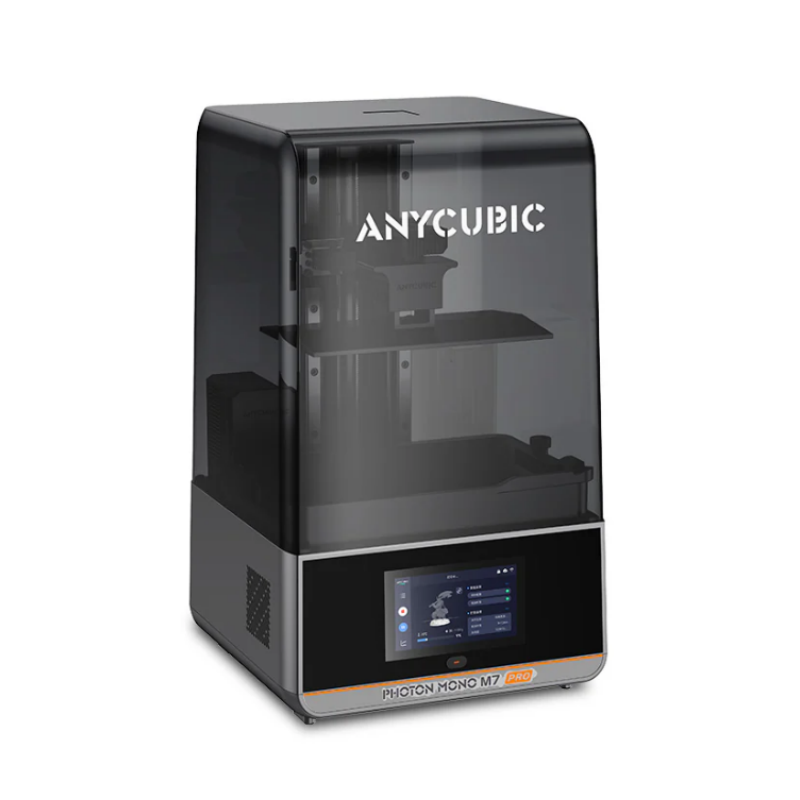

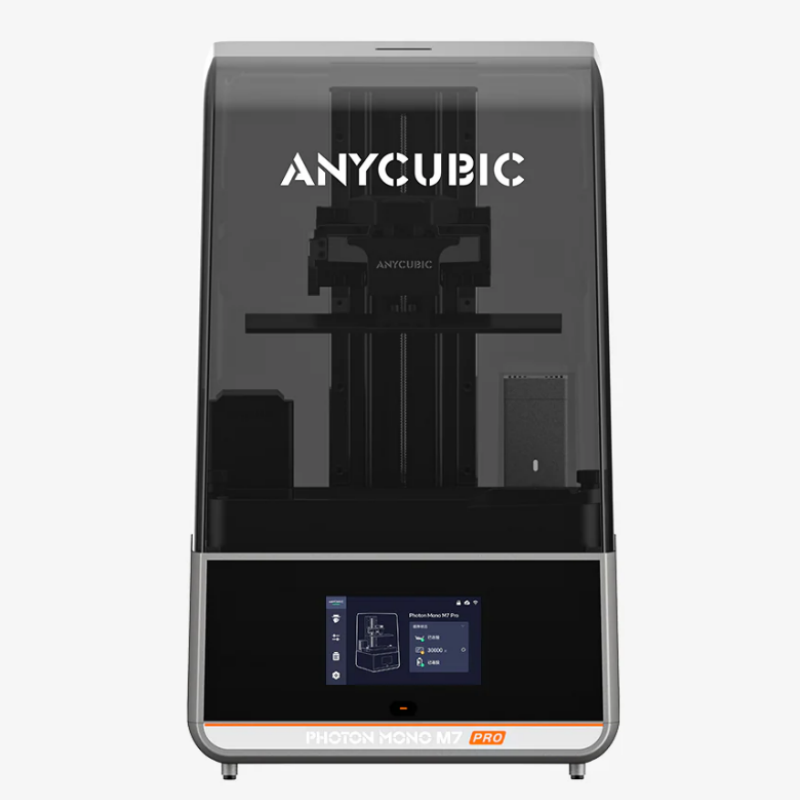

The Anycubic Photon Mono M7 Pro is a 14K resin 3D printer engineered for rapid, detailed production.

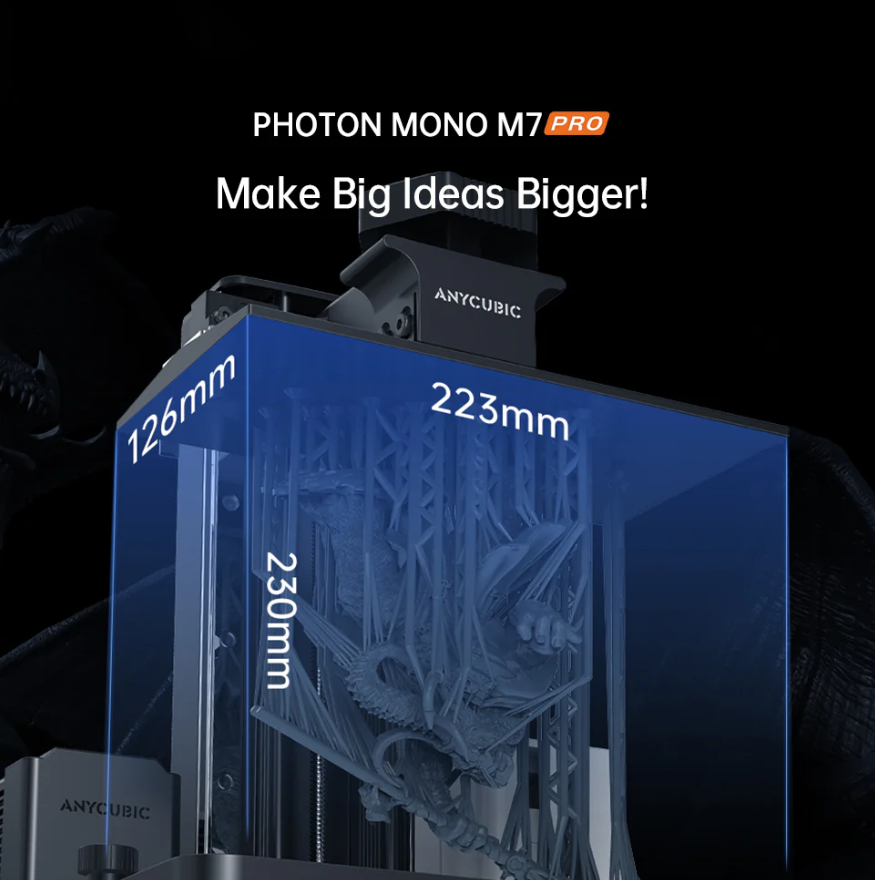

- Build volume: 223 × 126 × 230 mm (6.5 L)
- Display: 10.1-inch 14K monochrome LCD
- XY resolution: 16.8 × 24.8 μm
- Print speed: up to 130 mm/h with standard resin and 170 mm/h with high-speed resin at 0.1 mm layers
- Optics: COB light source, Fresnel lens and light-uniformity algorithm
- Mechanics: dual linear rails with 10 μm precision
- Light intensity: 5500 ±10% μW/cm²
- Materials: high-speed, water-washable, standard, ABS-like and plant-based resins

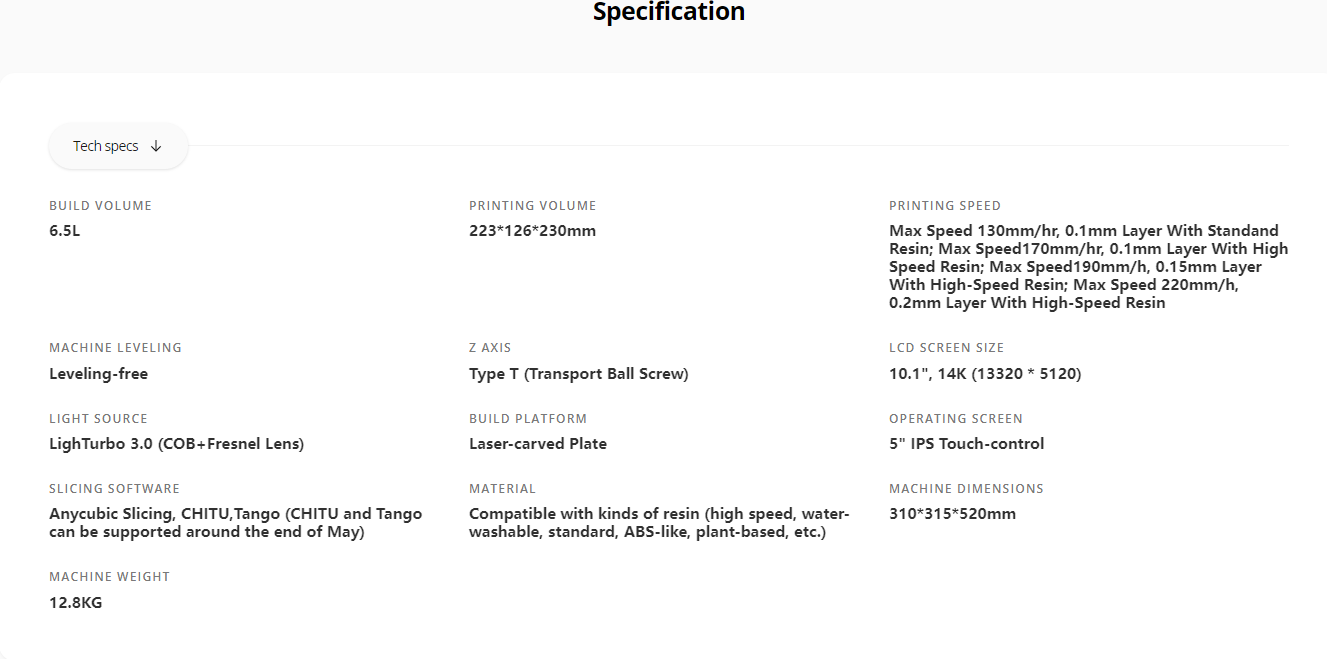

Specifications
| Build Volume | 223 x 126 x 230 mm (6.5 L) |
| Technology | LCD 14K (10.1" monochrome LCD, 13320 x 5120, 16.8 x 24.8 um XY resolution) |
| Layer Thickness | 0.01 – 0.15 mm |
| Print Speed | Max 130 mm/h; standard resin (0.1 mm) up to 130 mm/h; high-speed resin (0.1 mm) up to 170 mm/h |
| Light Source | COB light source (LighTurbo 3.0) + Fresnel lens + light uniformity algorithm, 5500 +/-10% uW/cm2 |
| Connectivity | USB / Wi-Fi / LAN |
| Machine Dimensions | 312 x 315 x 520 mm |
| Machine Weight | 12.8 kg |
| Power Supply | 240 W |

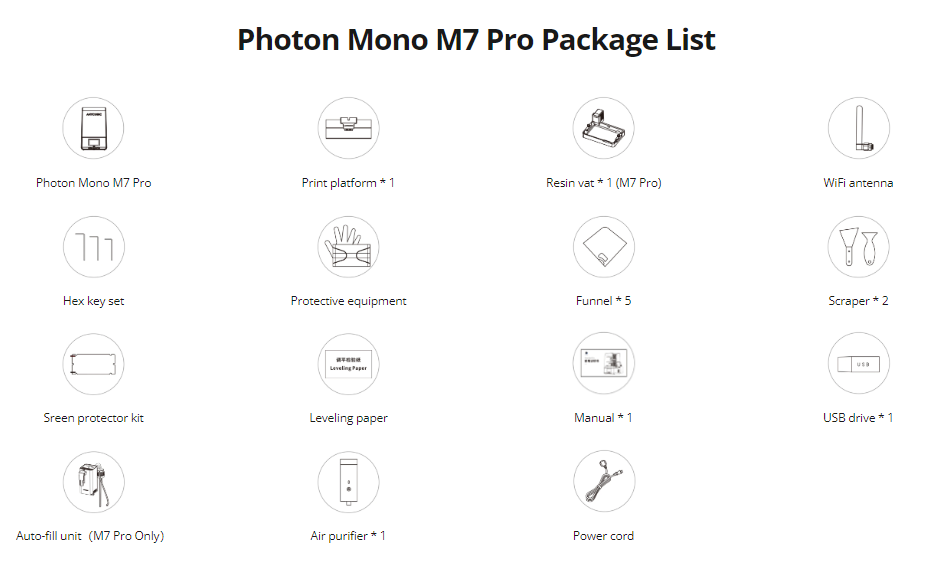

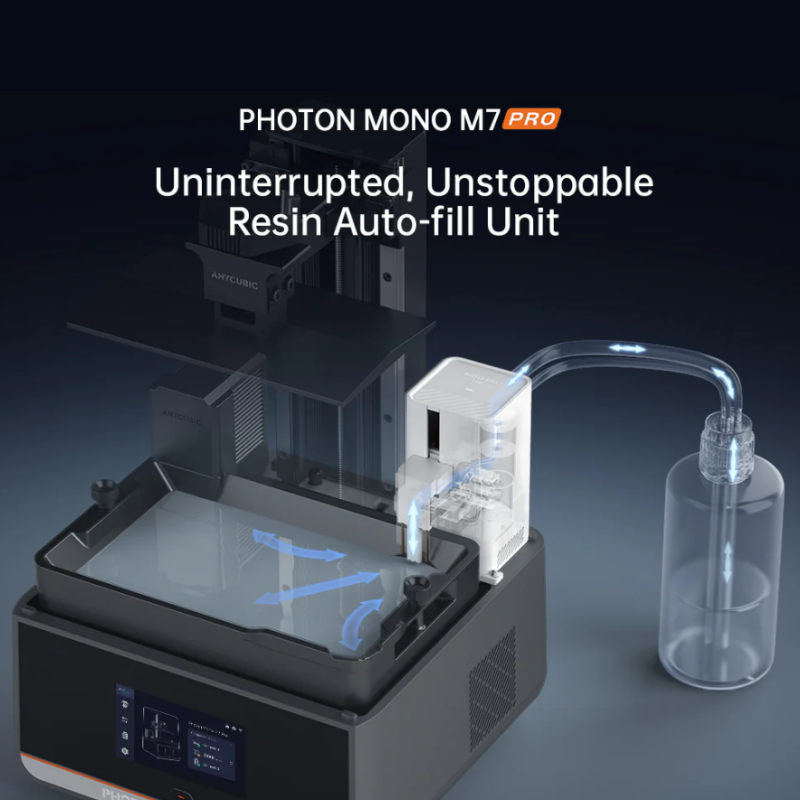

| Package List | Printer, print platform, resin vat, auto-fill unit, Wi-Fi antenna, hex key set, filters x5, scrapers x2, USB drive, power cord, manual |
Request a quote for wholesale pricing, bulk orders and current lead times.
