Description

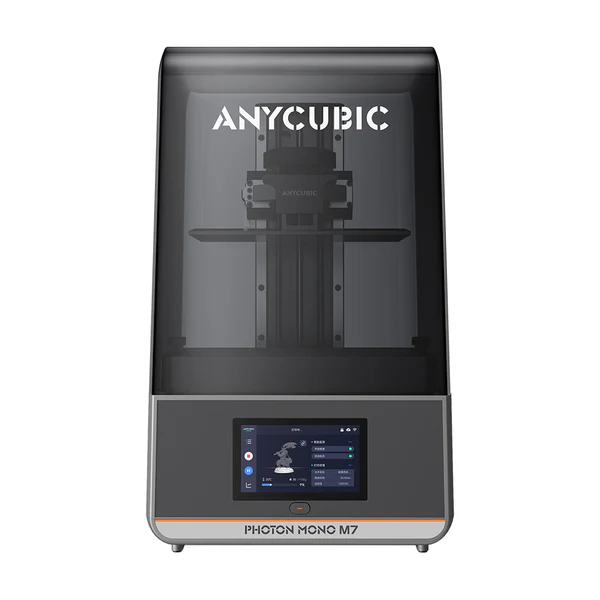

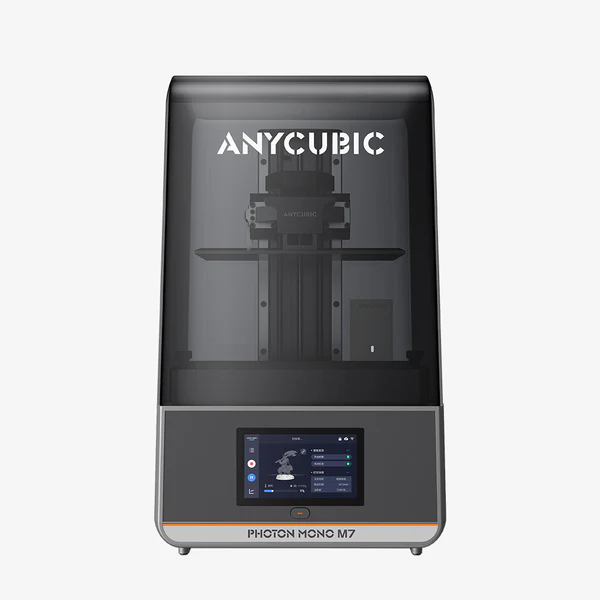

The Anycubic Photon Mono M7 combines a 14K resin-printing platform with high-speed capability for detailed models and small-batch production.

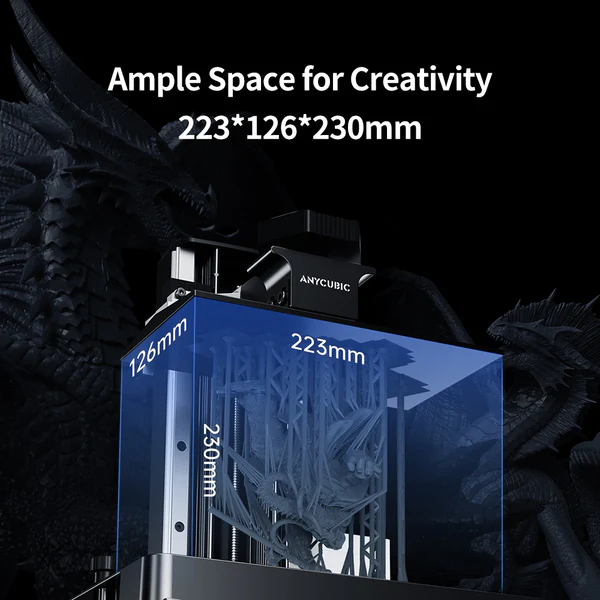

- Build volume: 223 × 126 × 230 mm (6.5 L)
- Display: 10.1-inch 14K monochrome LCD
- XY resolution: 16.8 × 24.8 μm

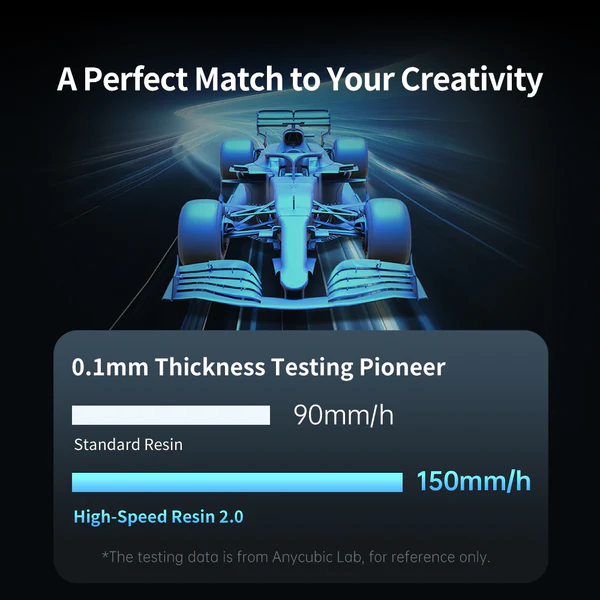

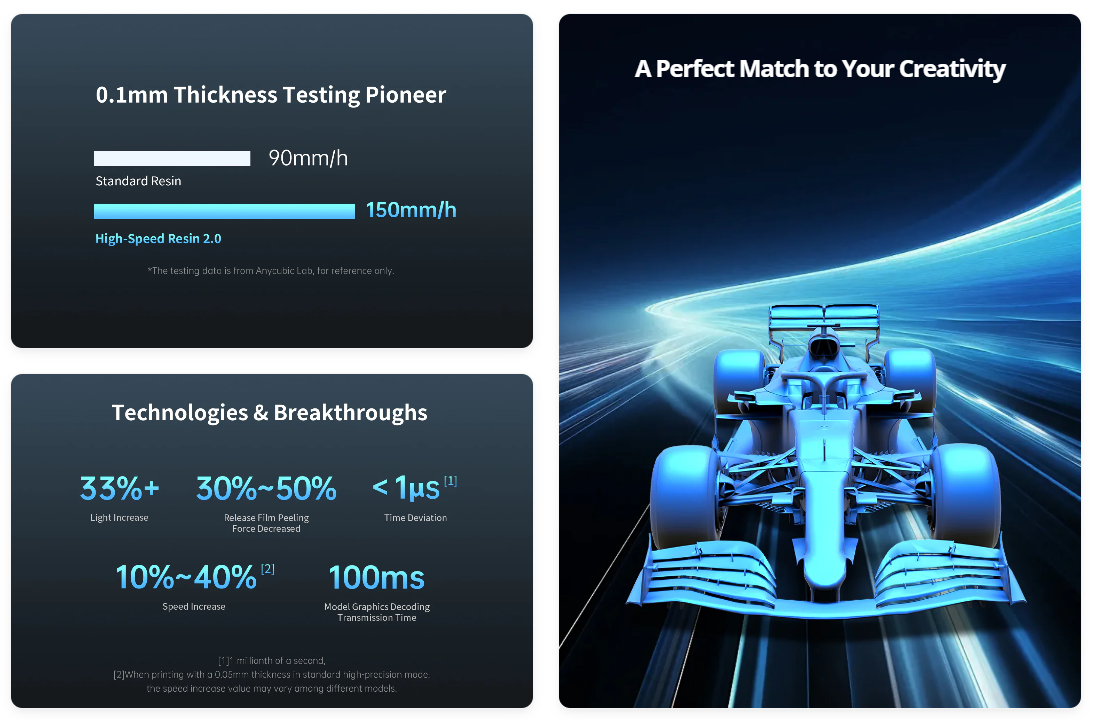

- Print speed: up to 90 mm/h with standard resin and up to 150 mm/h with high-speed resin at 0.1 mm layers

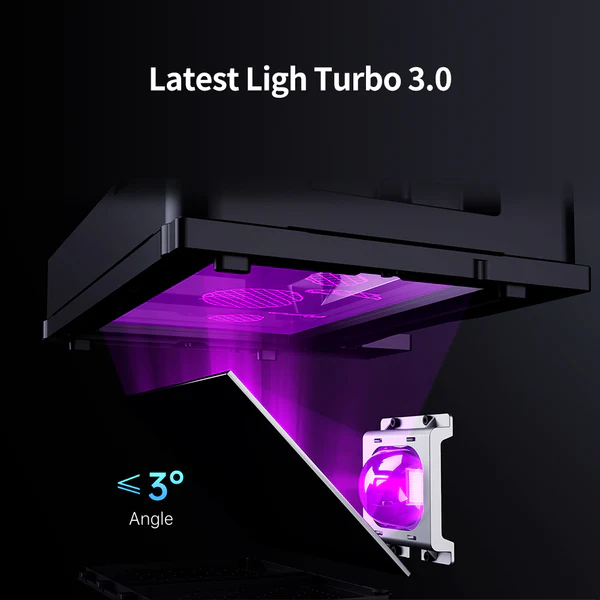

- Optics: COB light source, Fresnel lens and light-uniformity algorithm

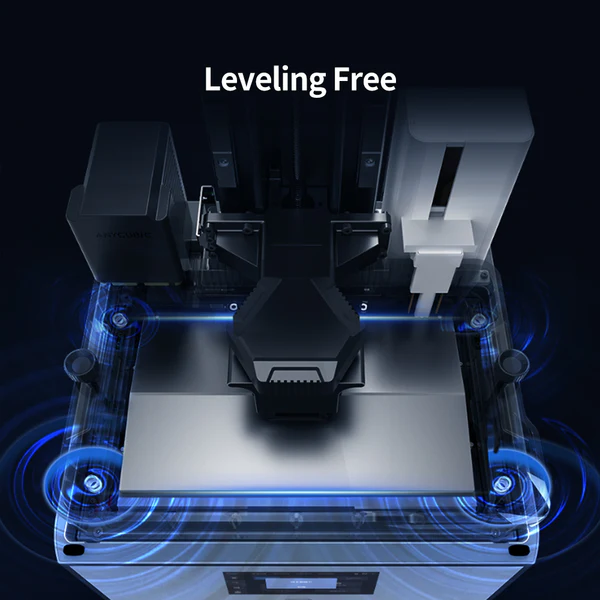

- Mechanics: dual linear rails with 10 μm precision; laser-engraved build plate
- Release film: improved ACF film
- Resin vat: ≤1 L
- Connectivity: USB, Wi‑Fi and LAN

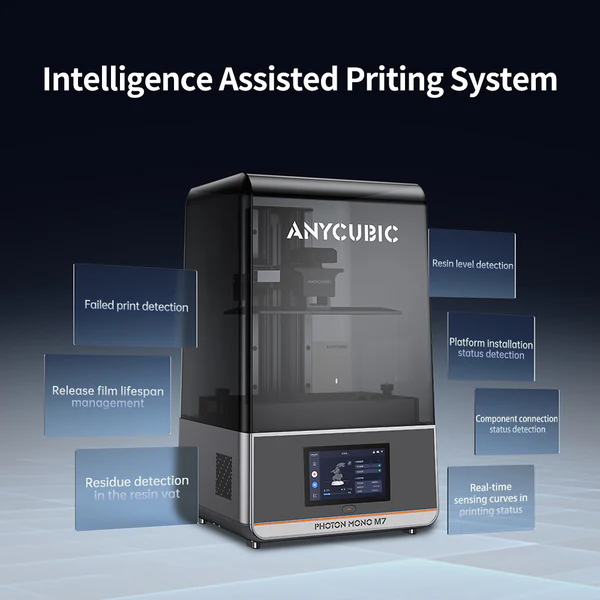

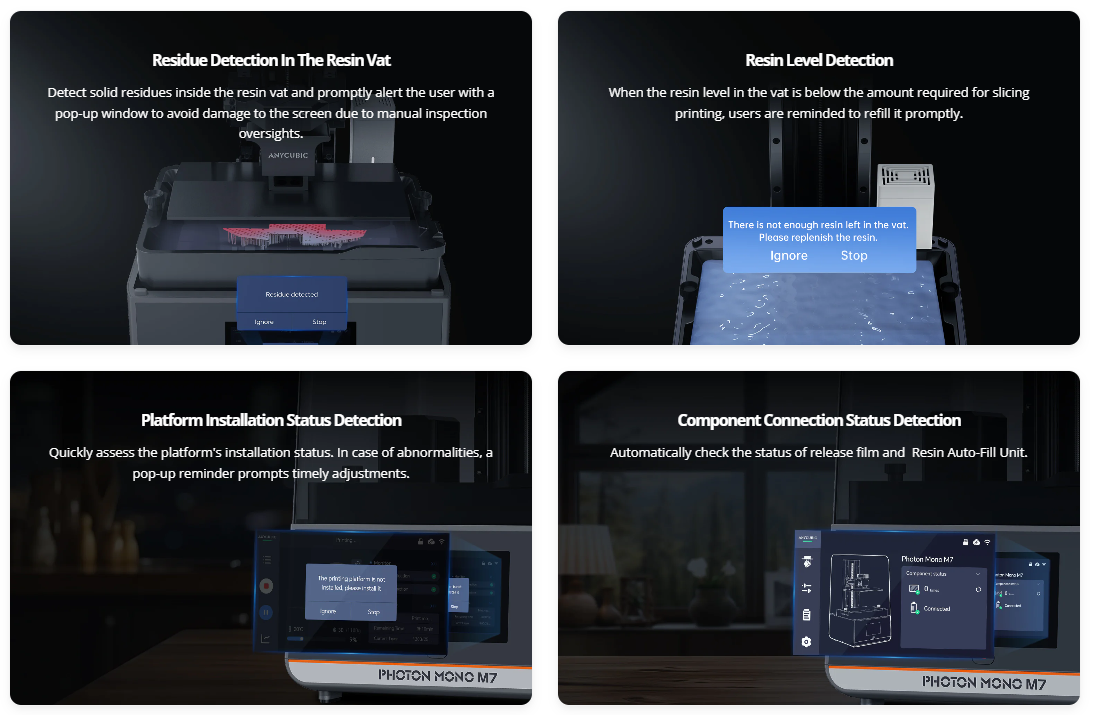

Its intelligent detection functions help monitor resin use, residue and failed prints. Request a quote for wholesale pricing, bulk orders and current lead times.

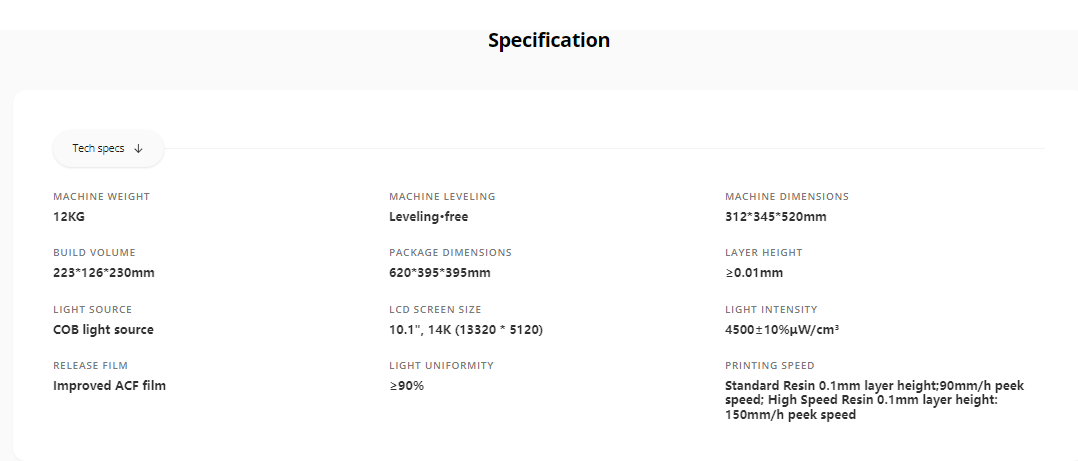

Specifications
| Build Volume | 223 x 126 x 230 mm (6.5 L) |
| Technology | LCD 14K (10.1" monochrome LCD, 13312 x 5120, 16.8 x 24.8 um XY resolution) |
| Layer Thickness | 0.01 – 0.15 mm |
| Print Speed | Max 90 mm/h; standard resin (0.1 mm) up to 90 mm/h; high-speed resin (0.1 mm) up to 150 mm/h |
| Light Source | COB light source + Fresnel lens + light uniformity algorithm, 4500 +/-10% uW/cm2 |
| Connectivity | USB / Wi-Fi / LAN |
| Machine Dimensions | 312 x 315 x 520 mm |
| Machine Weight | 12 kg |
| Power Supply | 135 W |

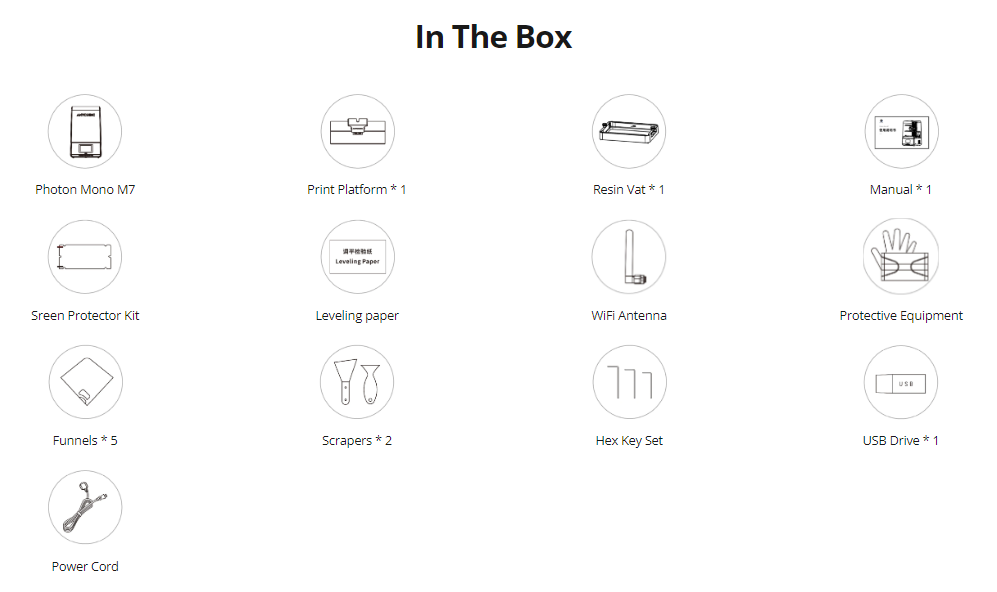

| Package List | Printer, print platform, resin vat, Wi-Fi antenna, hex key set, filters x5, scrapers x2, leveling paper, USB drive, power cord, manual |
