Description

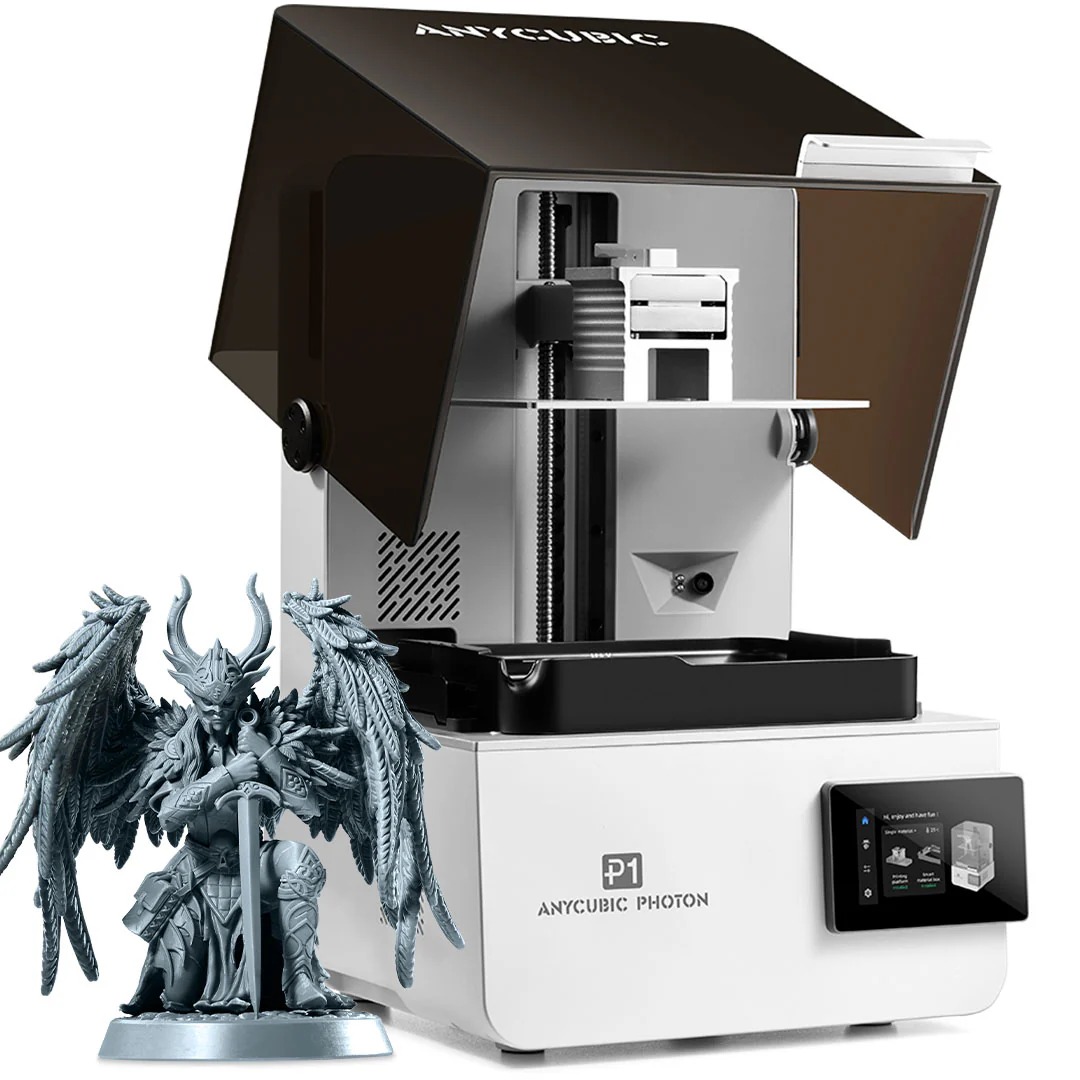

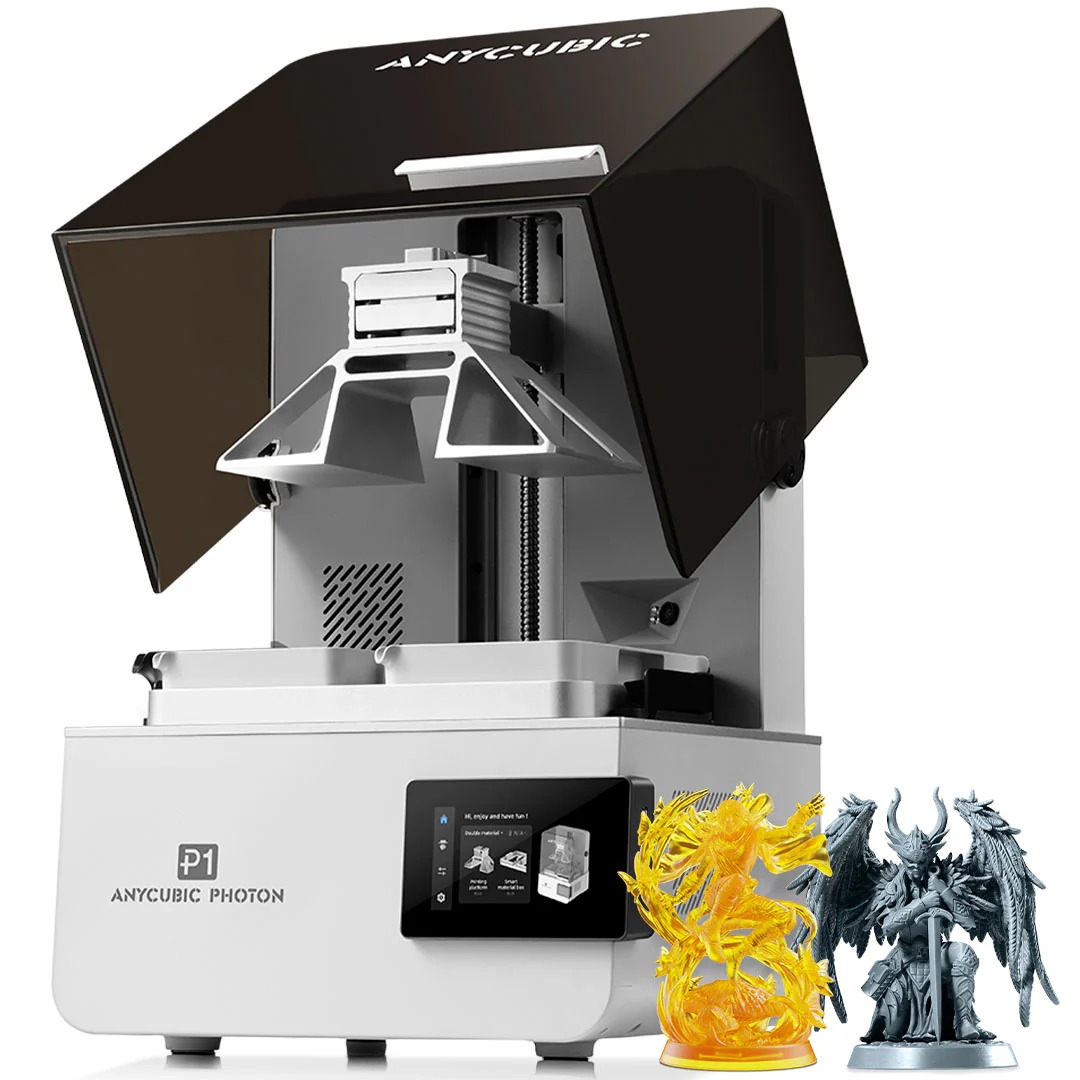

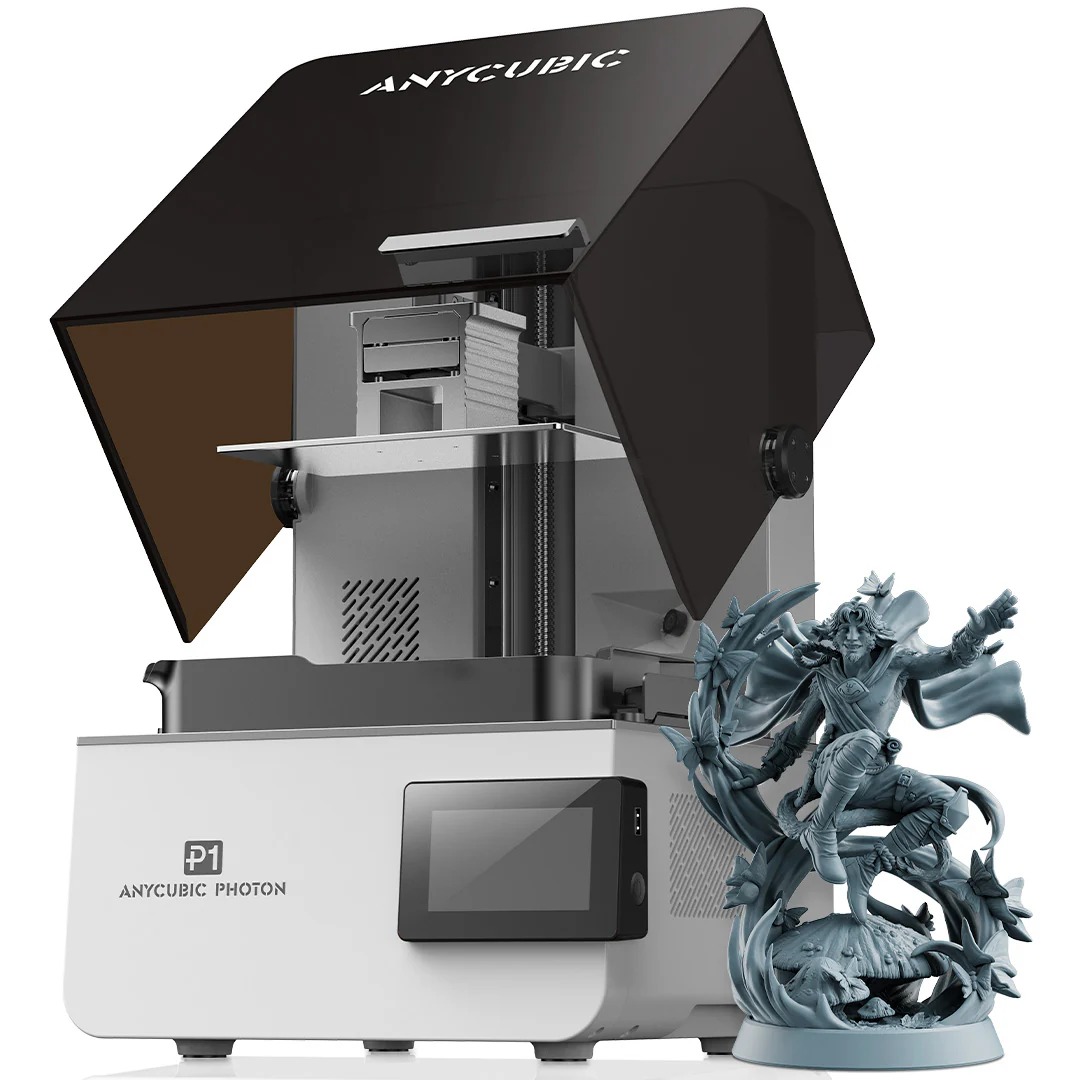

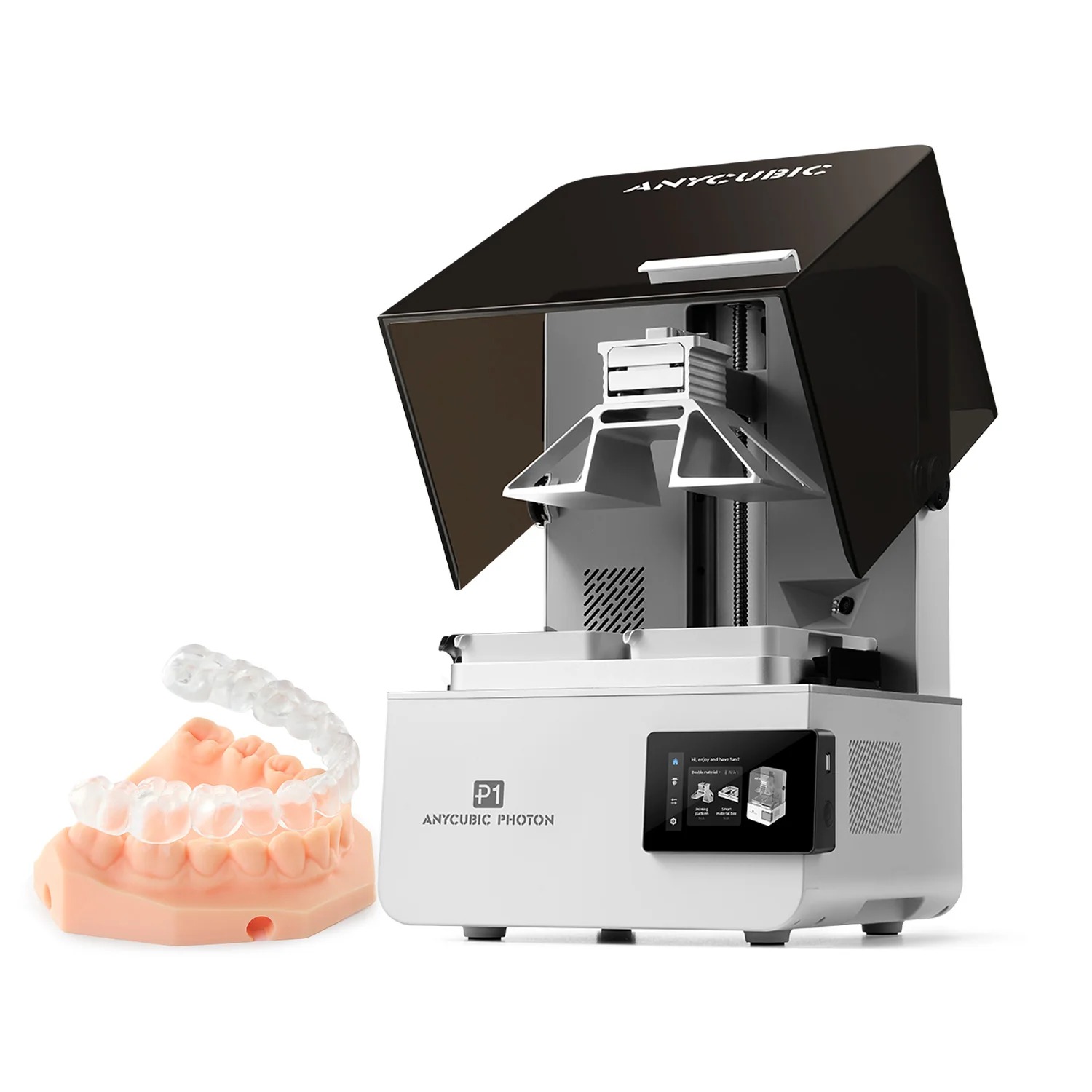

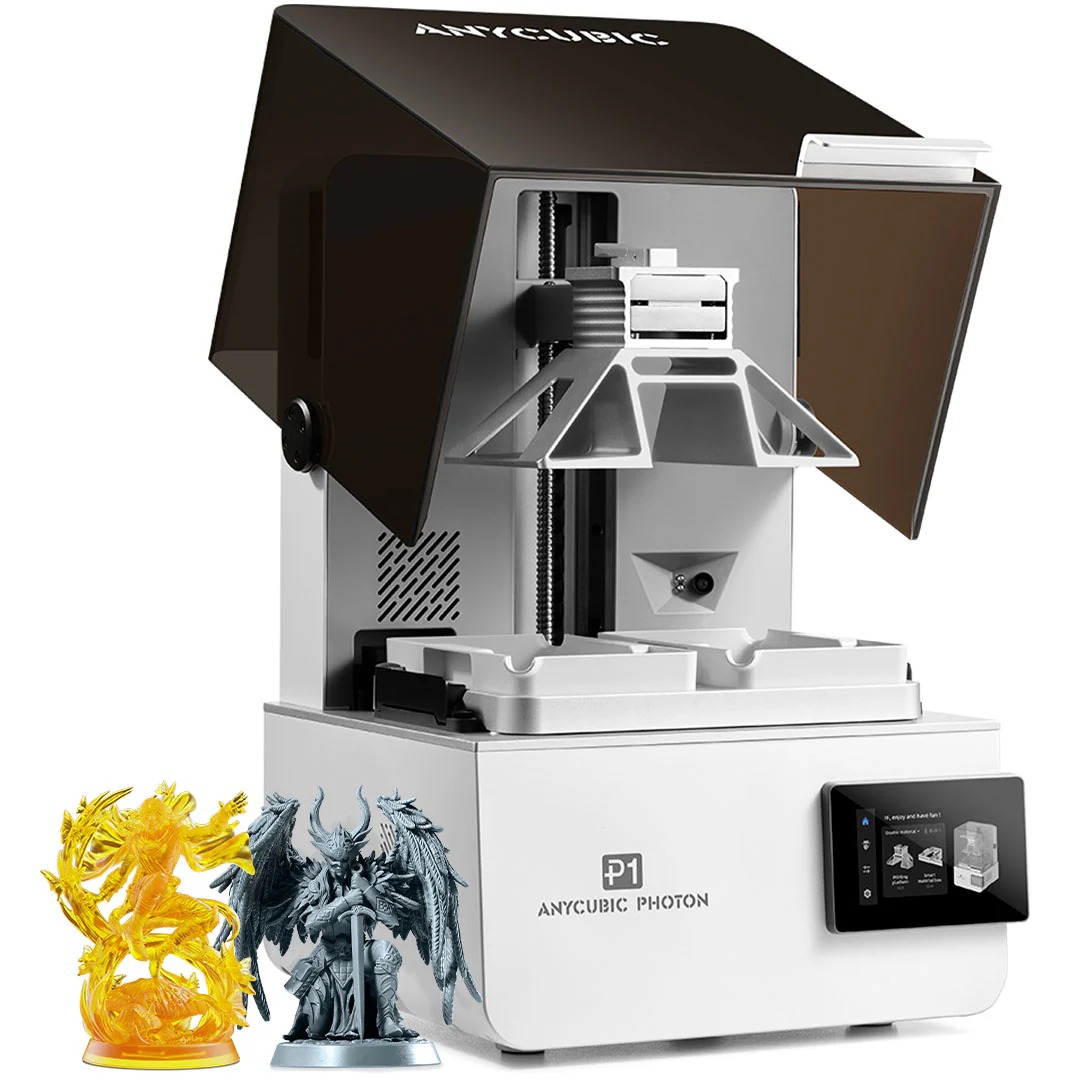

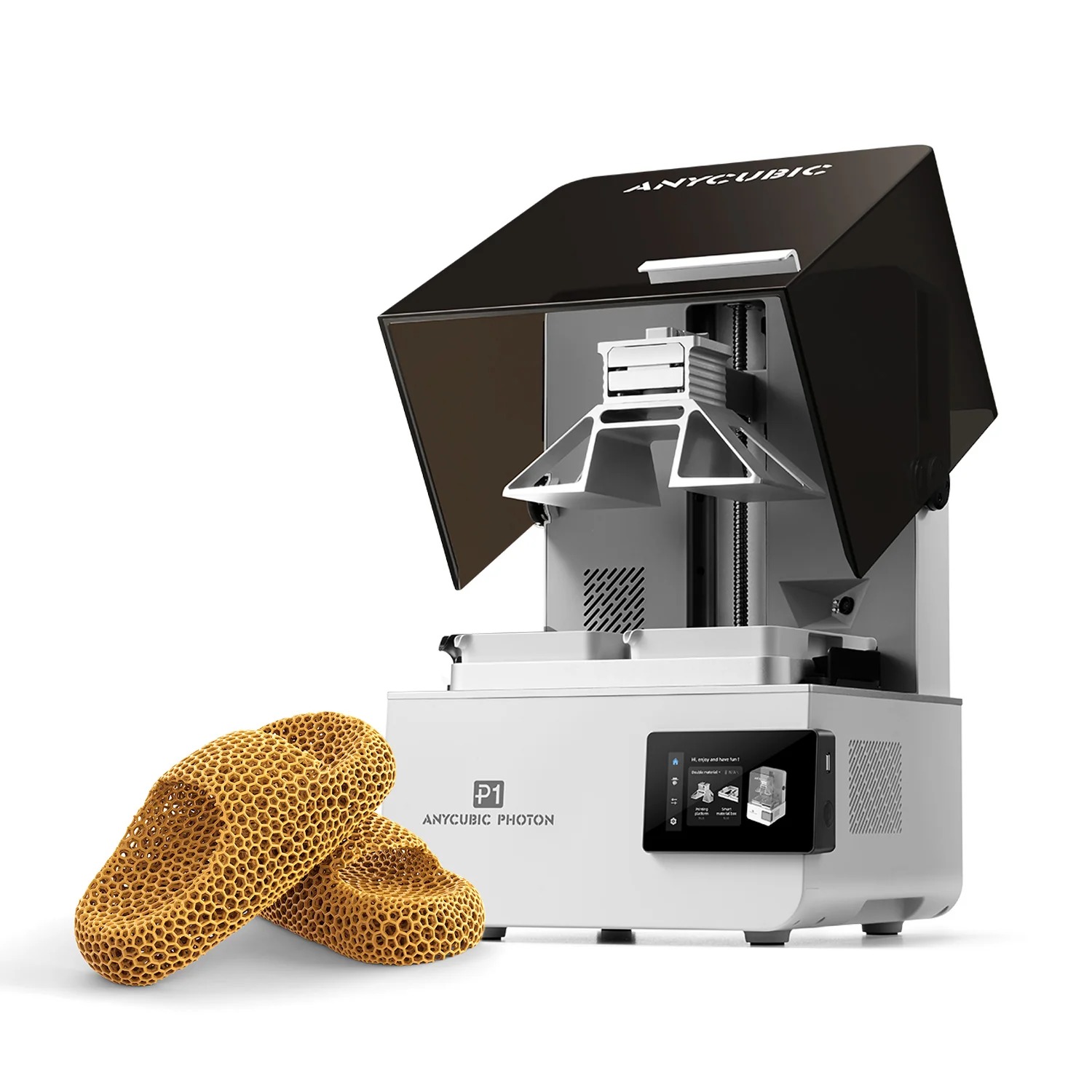

The Anycubic Photon P1 is a desktop resin 3D printer designed for detailed prototypes, small-batch parts and multi-material workflows.
- Build volume: 223 × 126 × 230 mm (6.5 L)
- Display: 10.1-inch 14K monochrome LCD
- XY resolution: 16.8 × 24.8 μm
- Print speed: 25–35 mm/h at 0.05 mm layers with standard resin
- Leveling: Auto-Leveling 3.0 with feedback

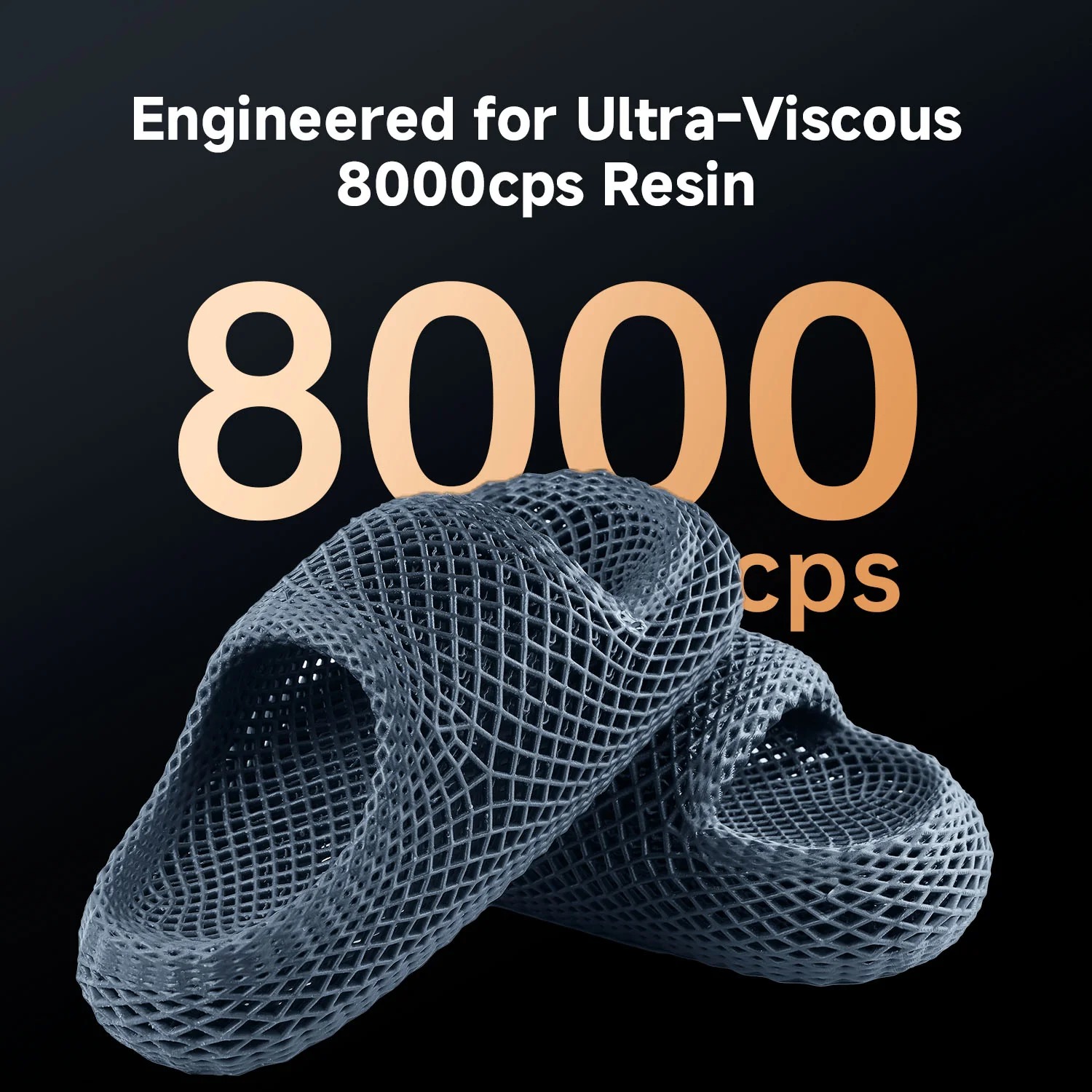

- Materials: compatible with Anycubic resins; supports high-viscosity resin up to 8000 cps
- Resin management: ≤1 L temperature-controlled resin vat, up to 40 °C
- Connectivity: USB, Wi‑Fi and LAN
An optional Dual Material Print Kit enables dual-color or dual-material printing. Request a quote for wholesale pricing, bulk orders and current lead times.
Specifications
| Build Volume | 223 x 126 x 230 mm (6.5 L) |
| Technology | LCD 14K (10.1" monochrome LCD, 16.8 x 24.8 um XY resolution) |
| Layer Thickness | 0.02 – 0.15 mm |
| Print Speed | 25 – 35 mm/h (0.05 mm layer, standard resin) |

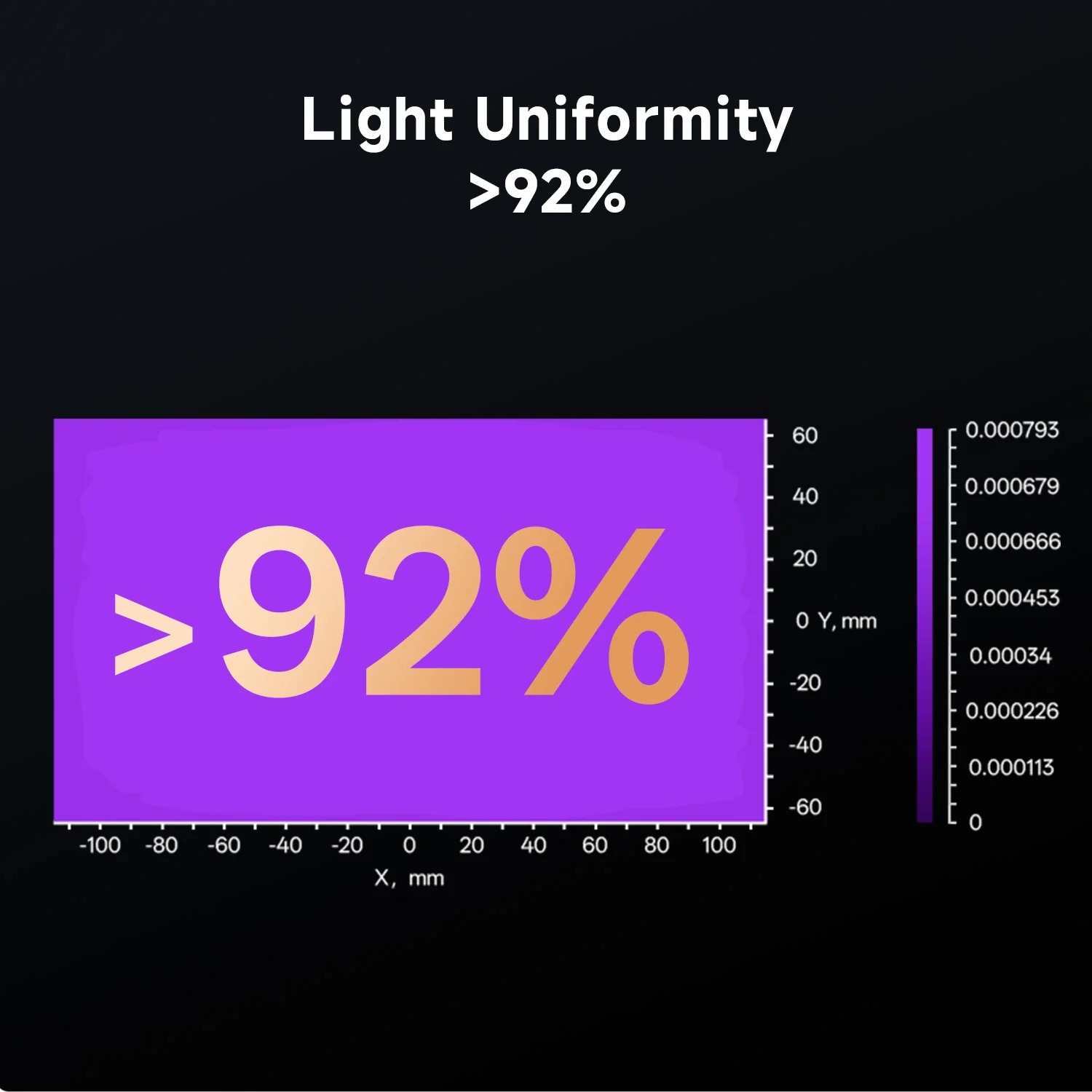

| Light Source | COB + Fresnel lens + mask, 5000 uW/cm2 |
| Connectivity | Dual-network (Wi-Fi / Ethernet); Anycubic App |
| Machine Dimensions | 366 x 338 x 539 mm |
| Machine Weight | 13.6 kg |
| Power Supply | 215 W |
| Package List | Printer, print platform, resin vat, hex key set, filter, scrapers, USB drive, power cord, manual |
