Description

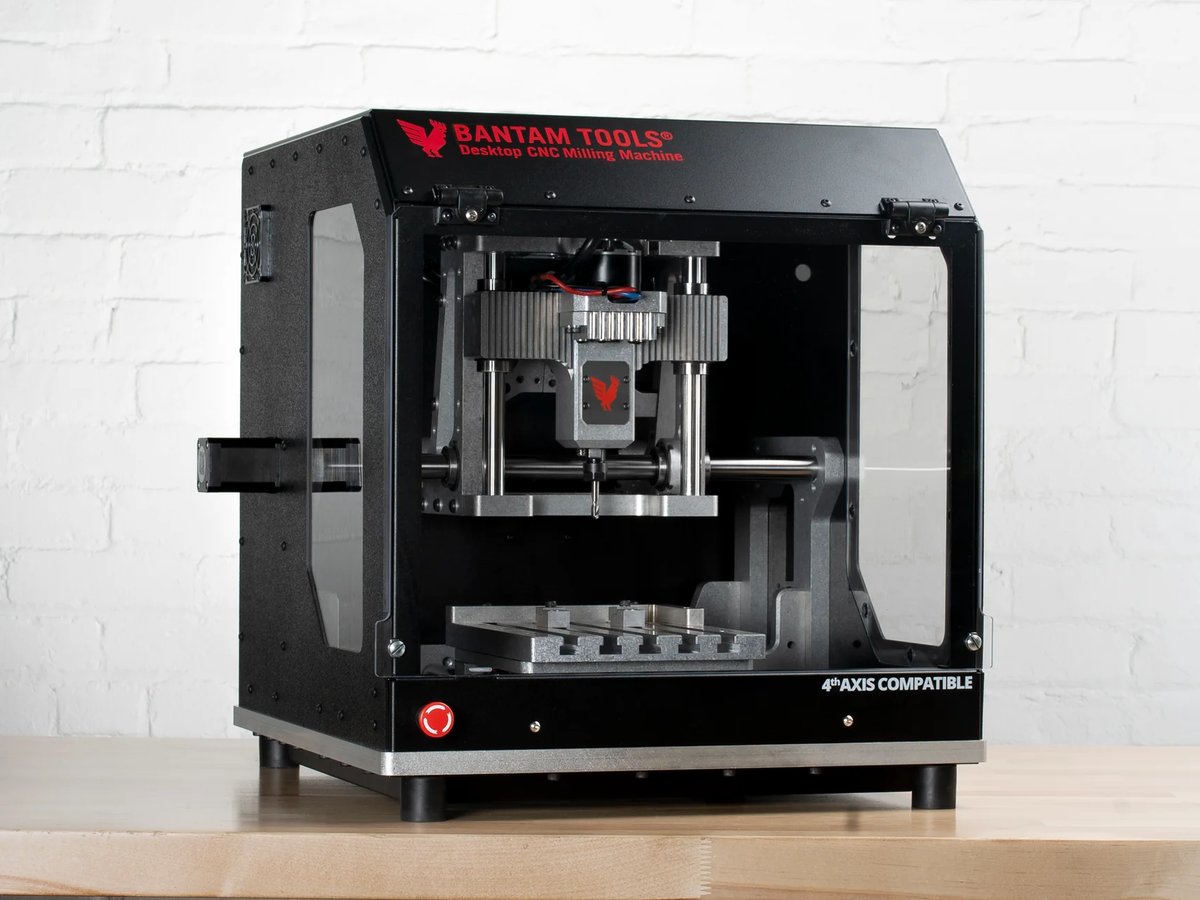

Enclosed precision desktop mill for aluminum, brass, wood and plastics. 4th-axis compatible for prototype studios and small factories.
Specifications
| Work Area | 7 x 9 x 3.3 in (178 x 229 x 83 mm) build volume |
| Spindle | 250 W spindle motor, 10,000 – 28,000 RPM, ER-11 collet, up to 1/4-inch (6.35 mm) tool shank |
| Motion System | Max traverse 250 in/min (6,350 mm/min); repeatability +/-0.001 in (+/-0.025 mm); fully enclosed pre-assembled powder-coated steel frame with safety interlocks and E-stop |
| Materials | Aluminum (recommended roughing MRR 0.4 cubic in/min in 6061), other soft metals, plastics, PCBs and machining wax; designed for dry milling (no lubricants/coolants) |
| Software | Bantam Tools Milling Machine Software (free version with 30-day Pro license trial; subscription Pro option) |
| Machine Size | 19.8 x 20.9 x 19.4 in (503 x 531 x 493 mm); ships fully assembled |
| Weight | 80 lb (36 kg) |
| Power | 100-240 V AC, 50/60 Hz, 350 W |
