Description

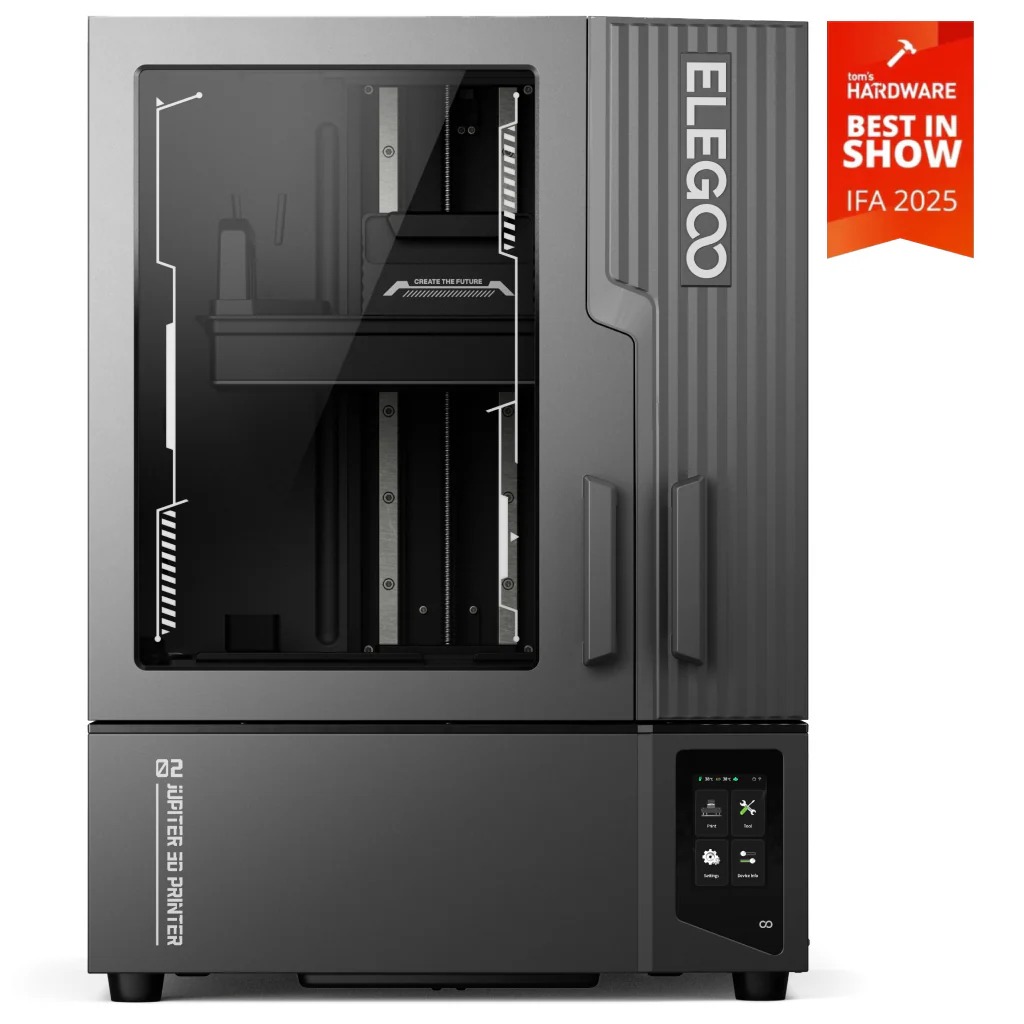

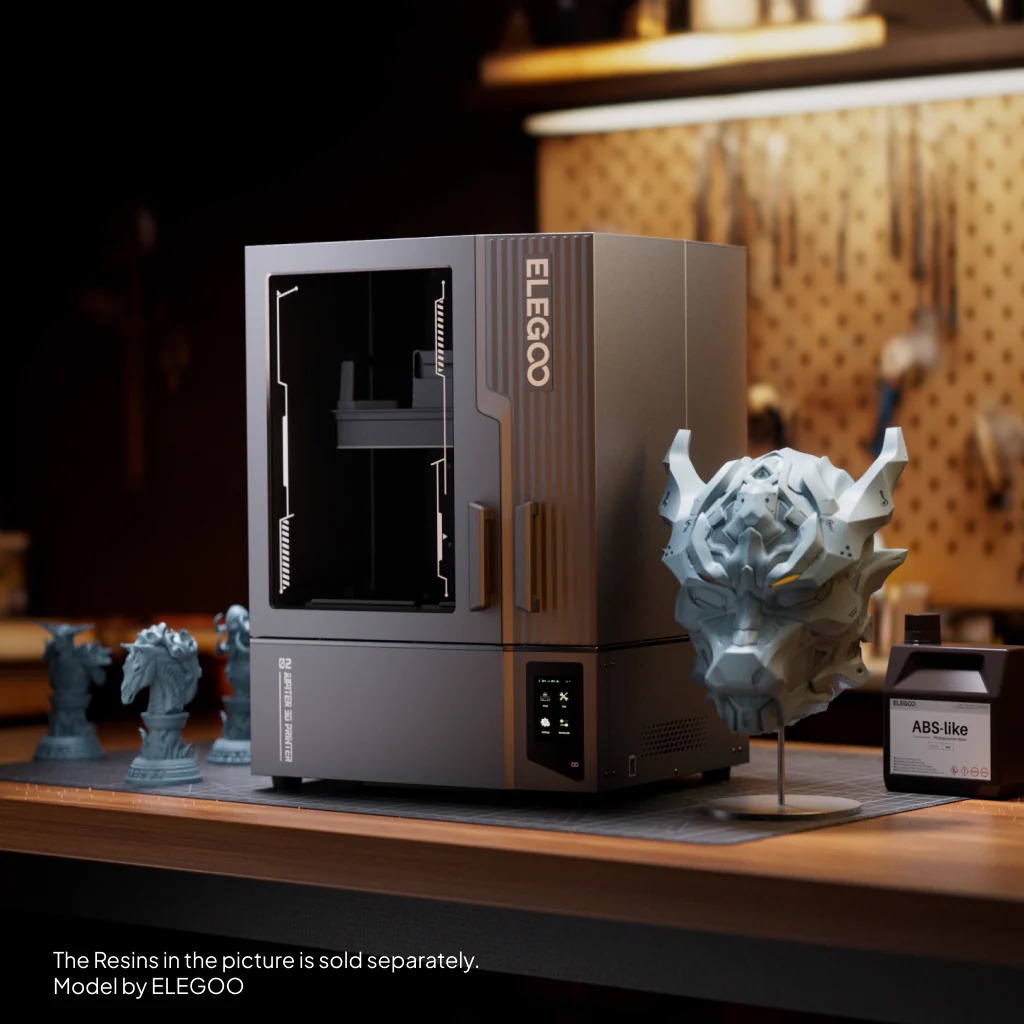

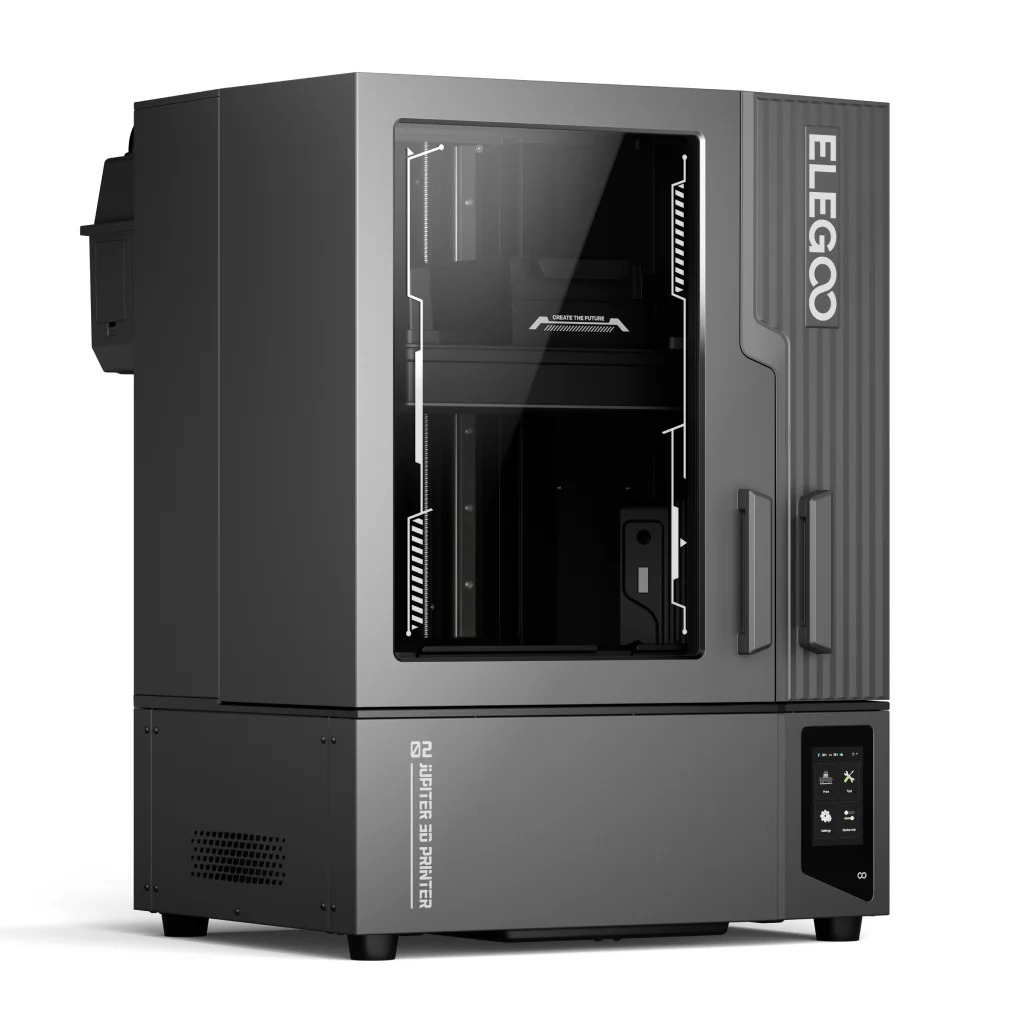

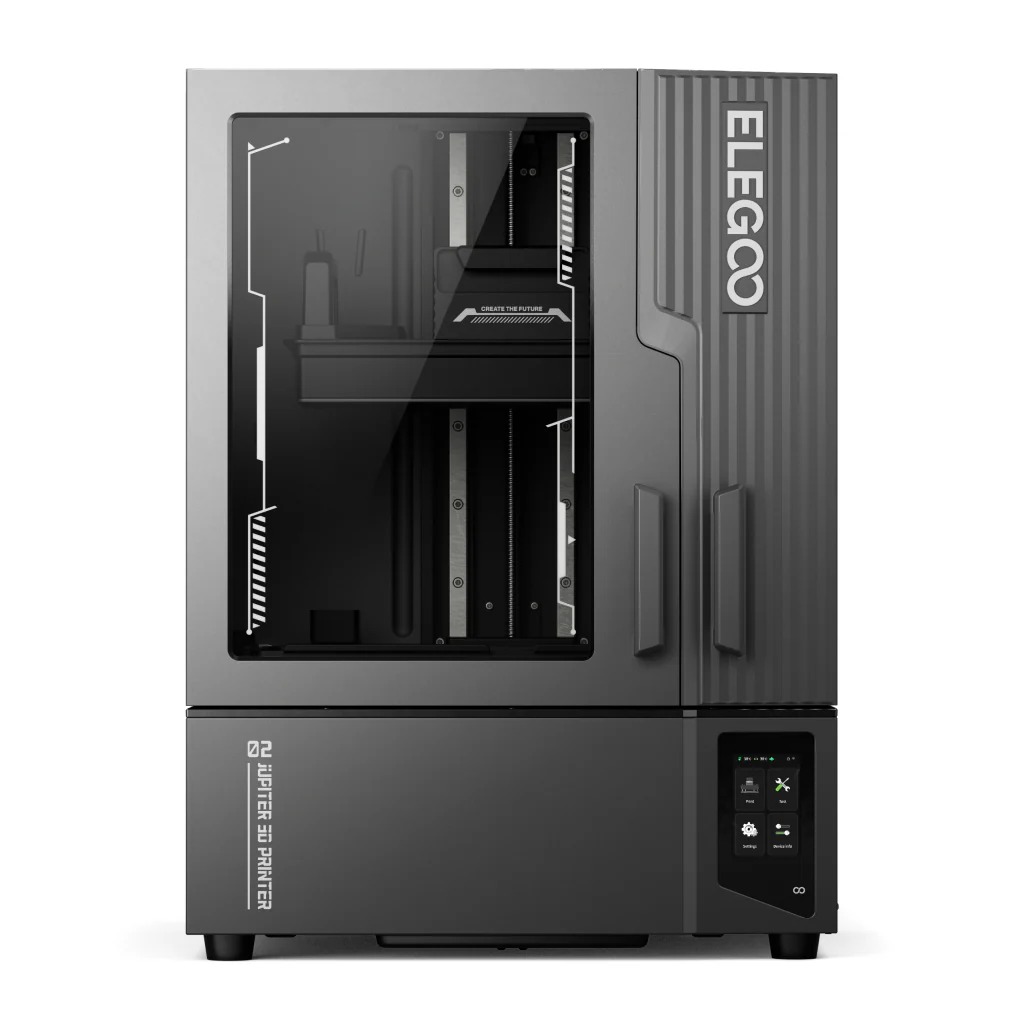

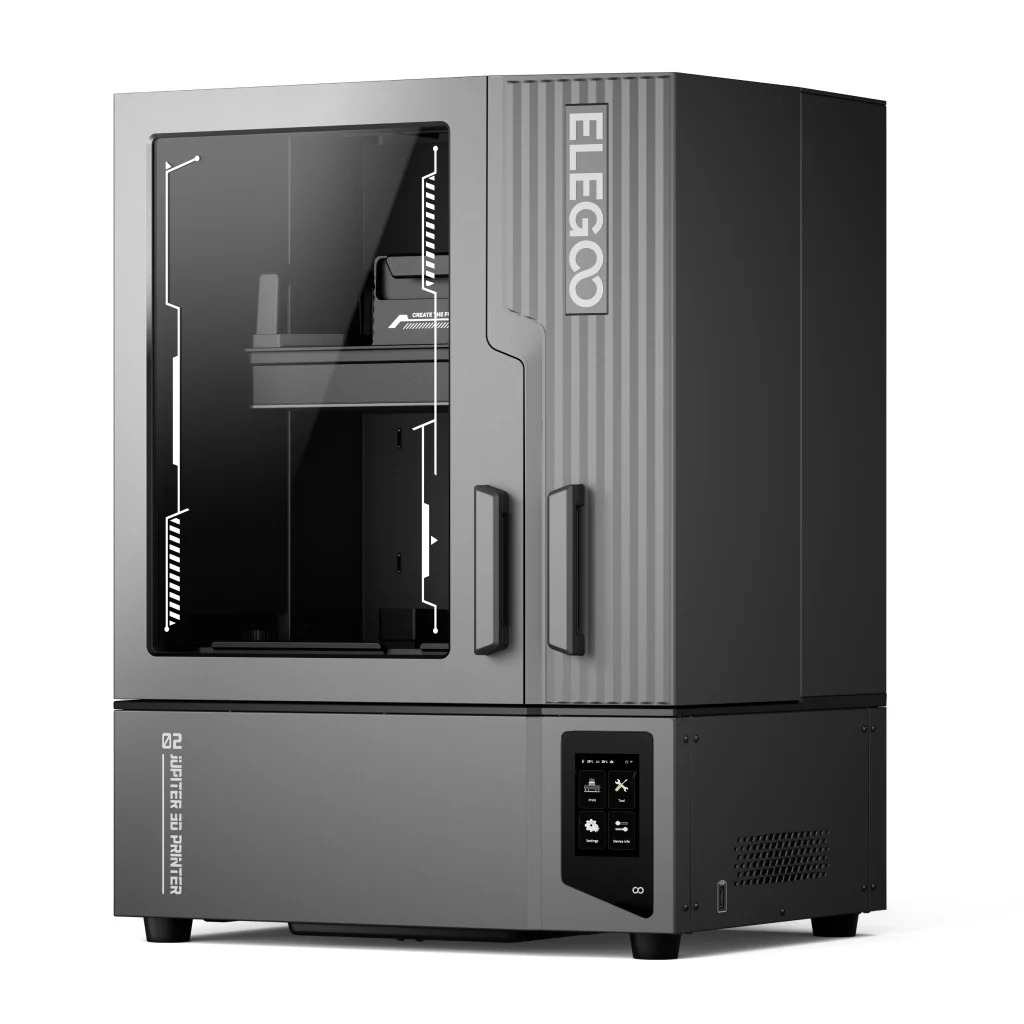

The ELEGOO Jupiter 2 is a large-format 16K resin 3D printer with 2.5 times the build volume of the Saturn 4, a two-way pump resin system that auto-feeds and recycles from a 2 kg bottle, and full process monitoring.

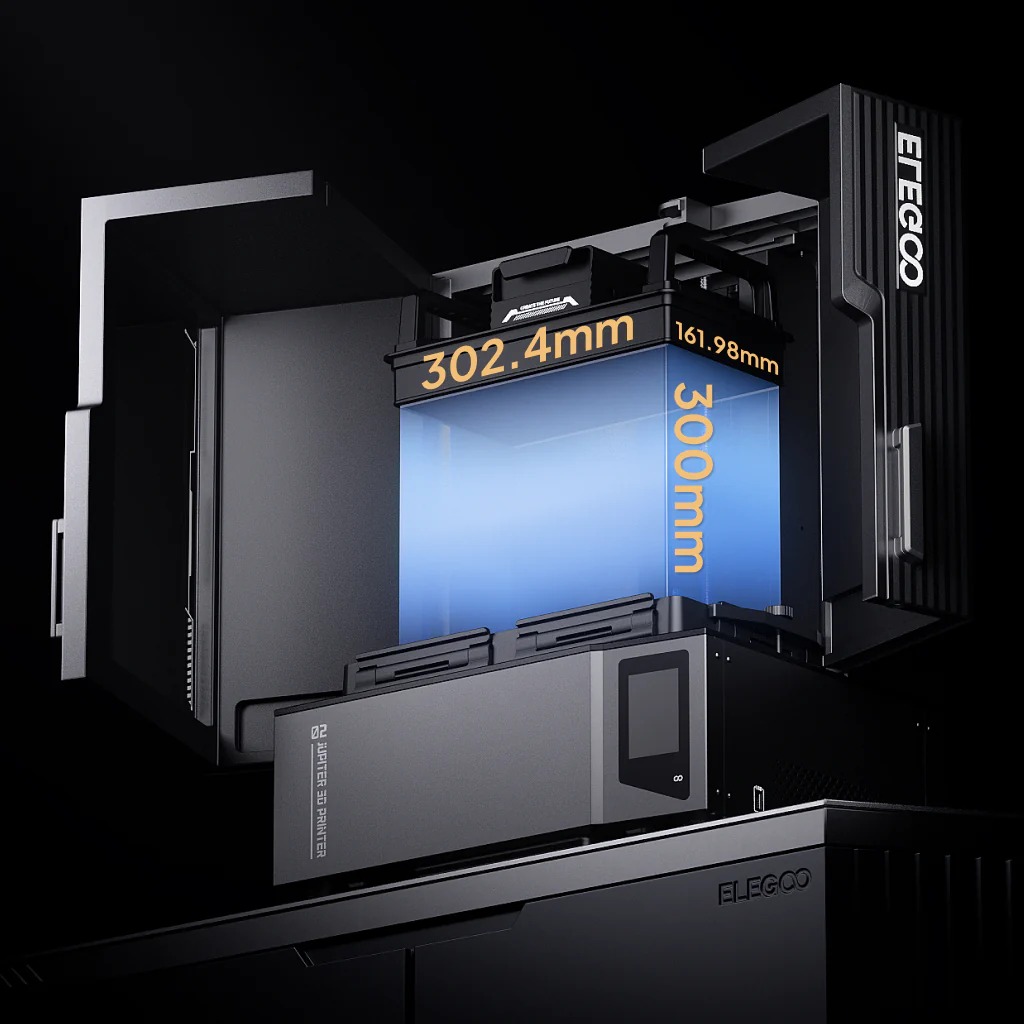

- Build volume: 302 × 162 × 300 mm
- 16K mono LCD, resolution 15,120 × 6,230; XY resolution 20 × 26 μm

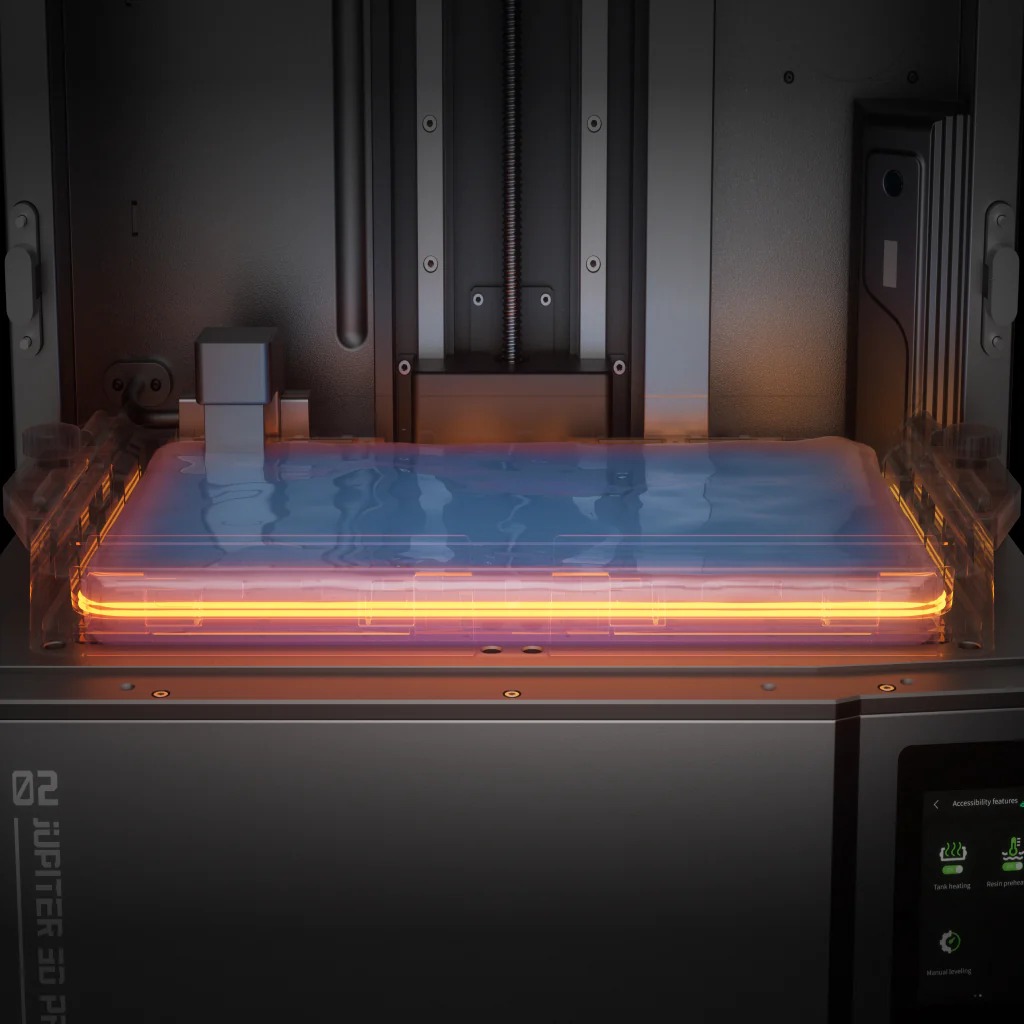

- Smart tank heating holds resin at 30 °C

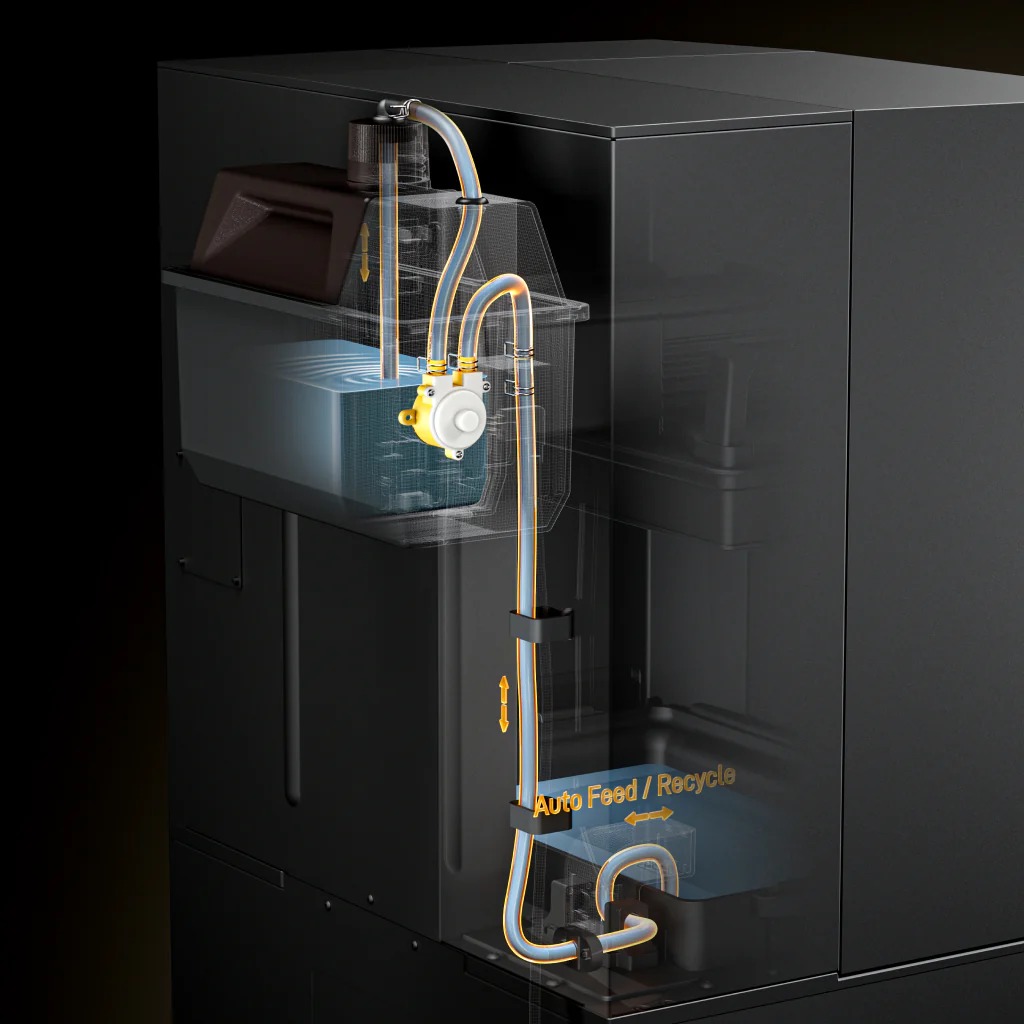

- 2 kg resin bottle with two-way pump for auto feeding and recycling

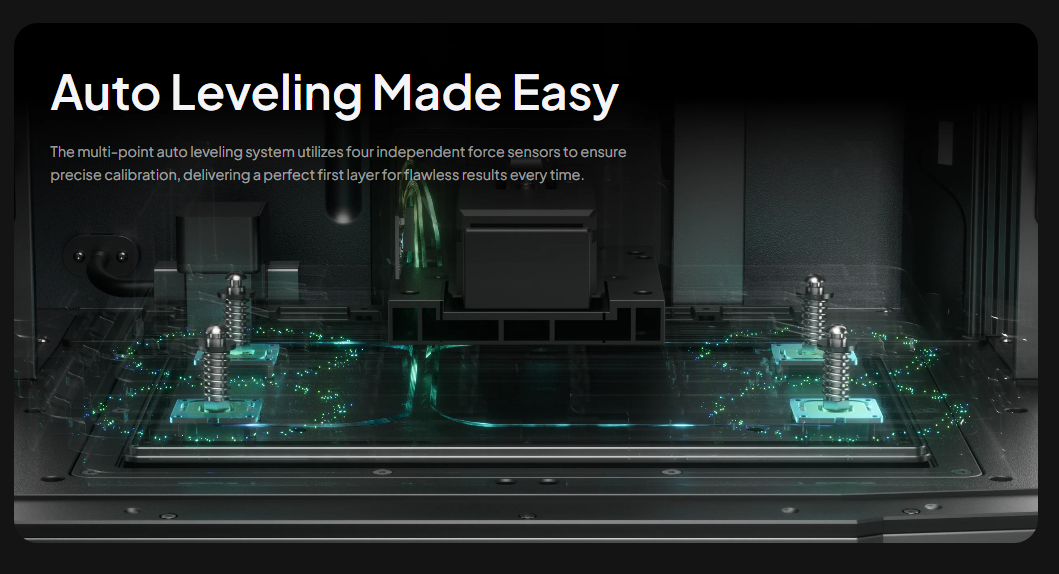

- Multi-point auto leveling with four independent force sensors
- Chamber camera with LED light for real-time monitoring and time-lapse
- Mechanical sensor alerts: resin shortage, residue detection, leveling failure
- Power loss recovery and Wi-Fi cluster printing
- Quick-swap tool-free release film; modular LCD replacement

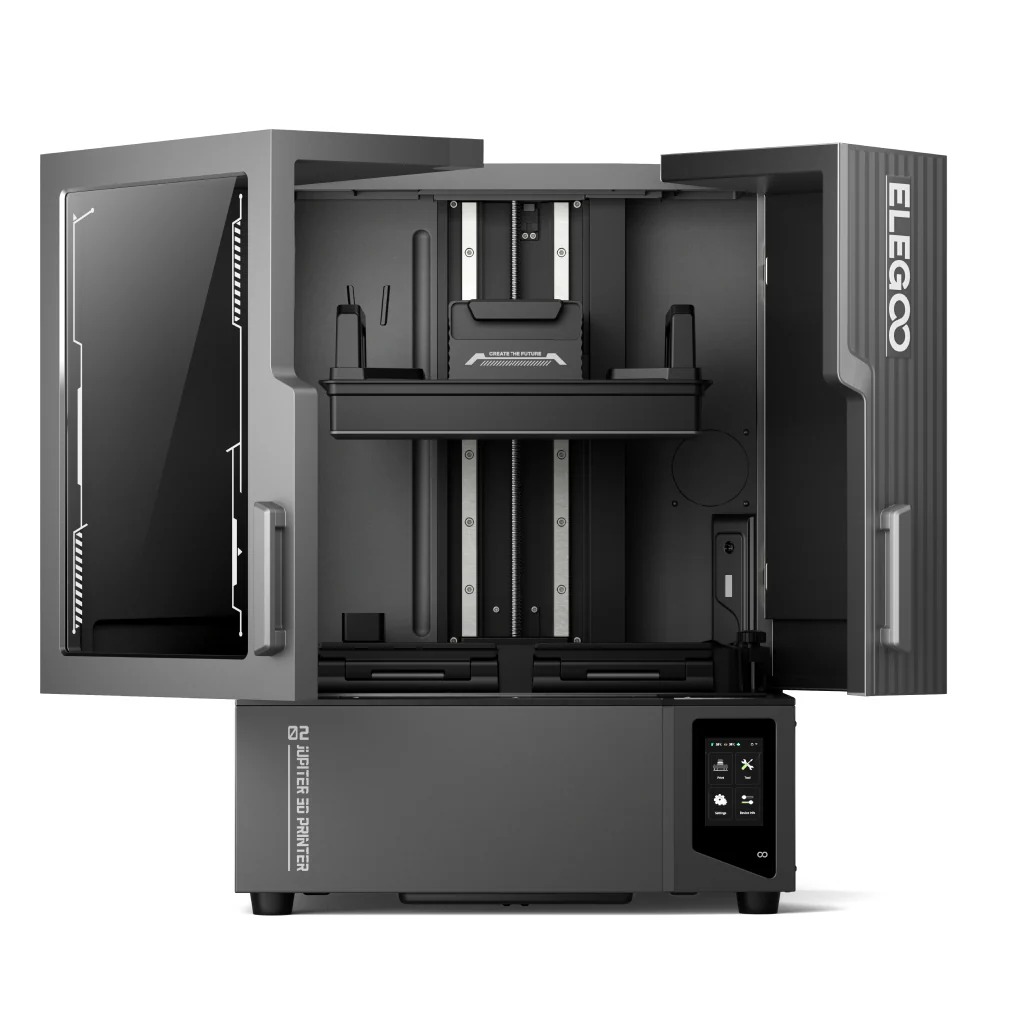

- Dual doors with transparent viewing window
Specifications
| Build Volume | 302 × 162 × 300 mm |
| Technology | LCD 16K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 90 mm/h |
| Light Source | COB light source + Fresnel collimating lens |
| Connectivity | USB, Wi-Fi |
| Machine Dimensions | 465 × 508.1 × 648.1 mm |
| Machine Weight | 28.9 kg (net) |
| Voltage | 100–240 VAC, 50/60 Hz, 24 V 12.5 A (300 W) |
| XY Resolution | 15120 × 6230 (14" 16K Mono LCD) |
| Z-axis Accuracy | 0.02 mm |
| System | EL3D-4.0 |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
