Description

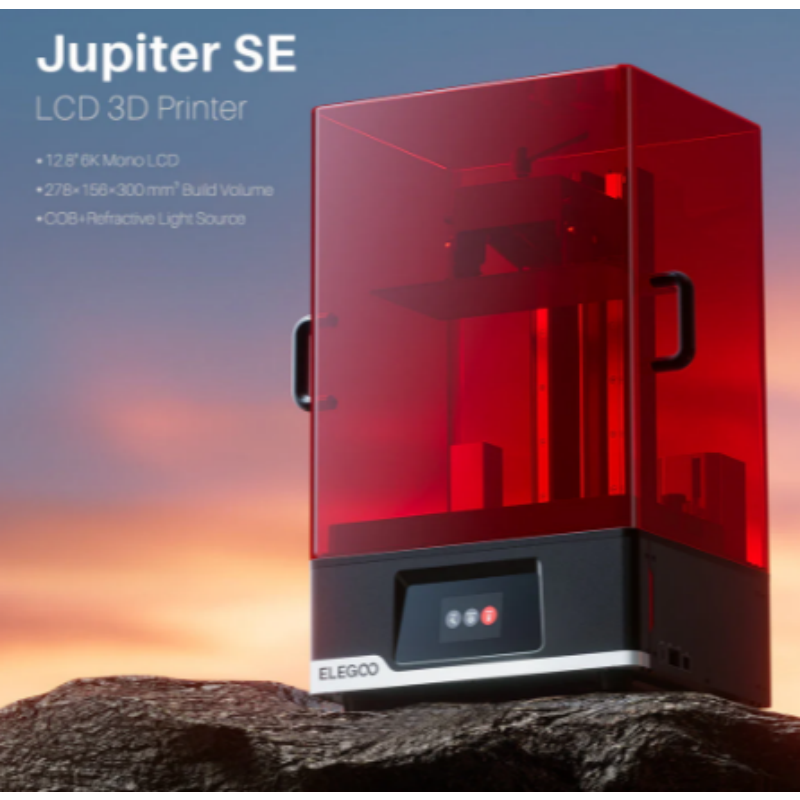

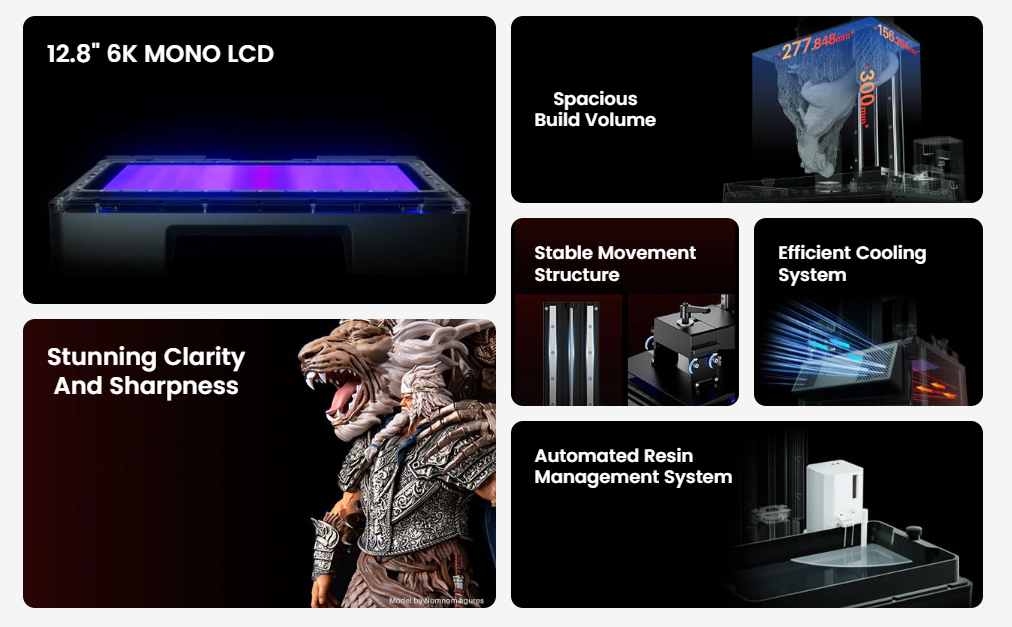

The ELEGOO Jupiter SE pairs a 12.8-inch 6K monochrome LCD with an automatic resin feeding and recycling system, built for reliable large-format resin production.

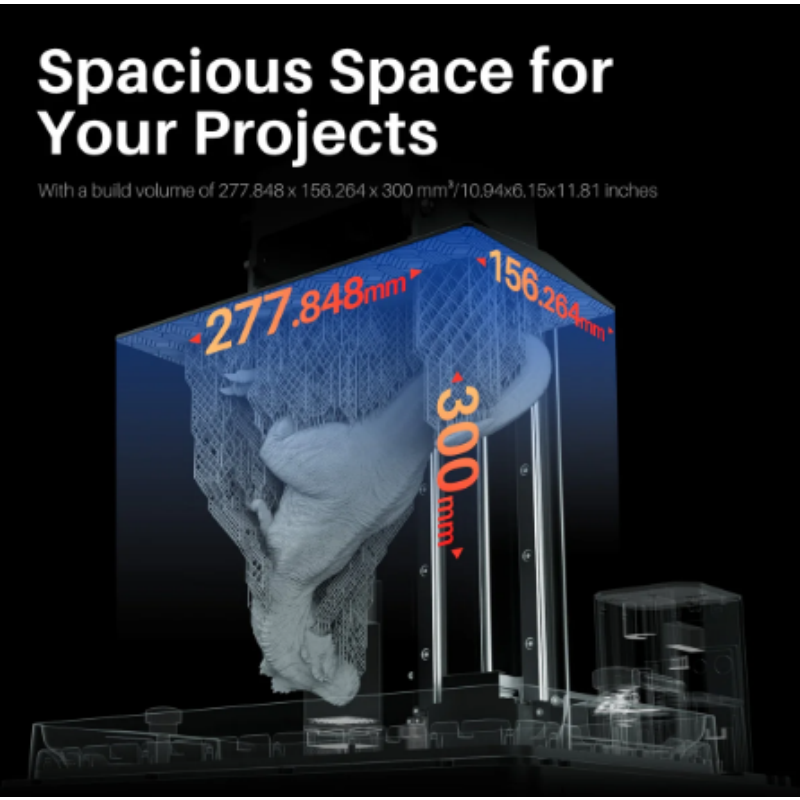

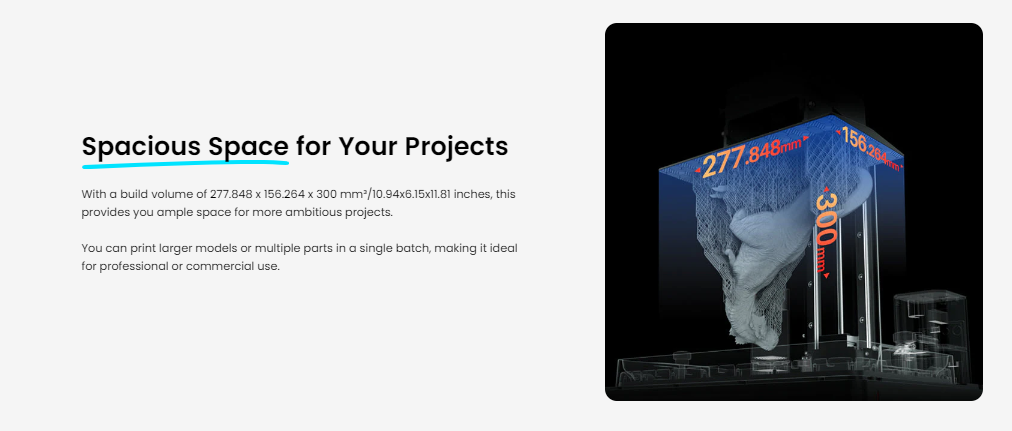

- Build volume: 277.848 × 156.264 × 300 mm

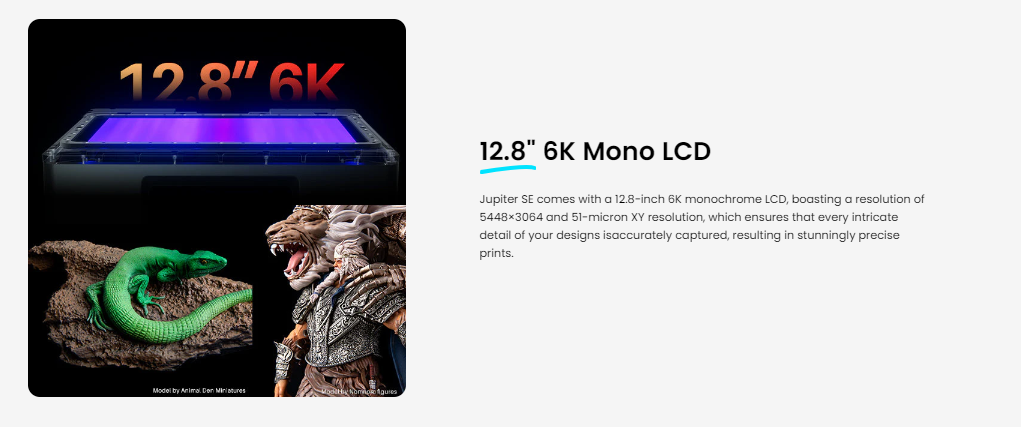

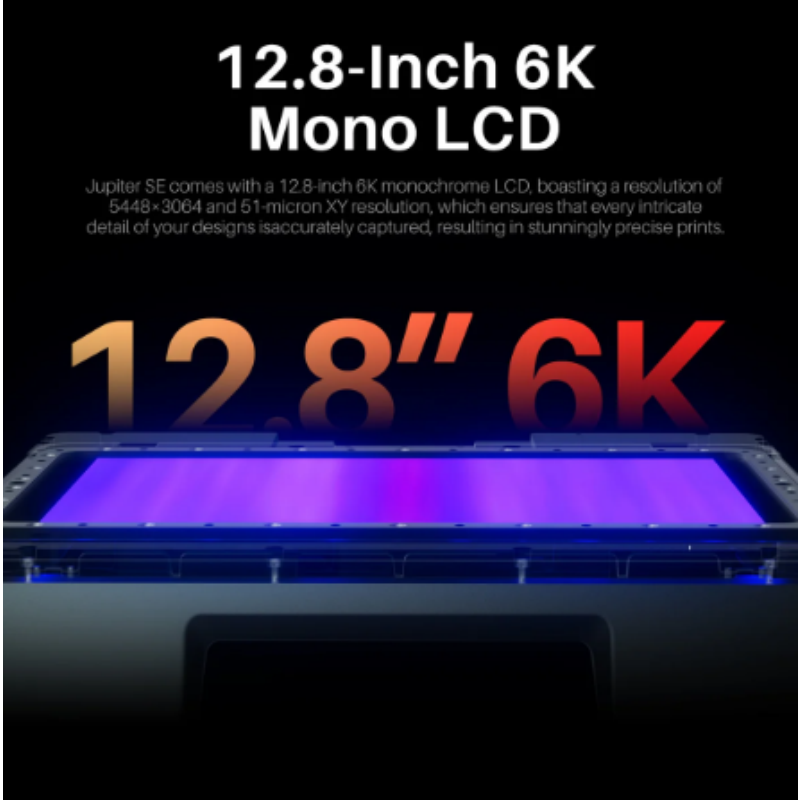

- 12.8-inch 6K mono LCD, resolution 5,448 × 3,064; XY resolution 51 μm

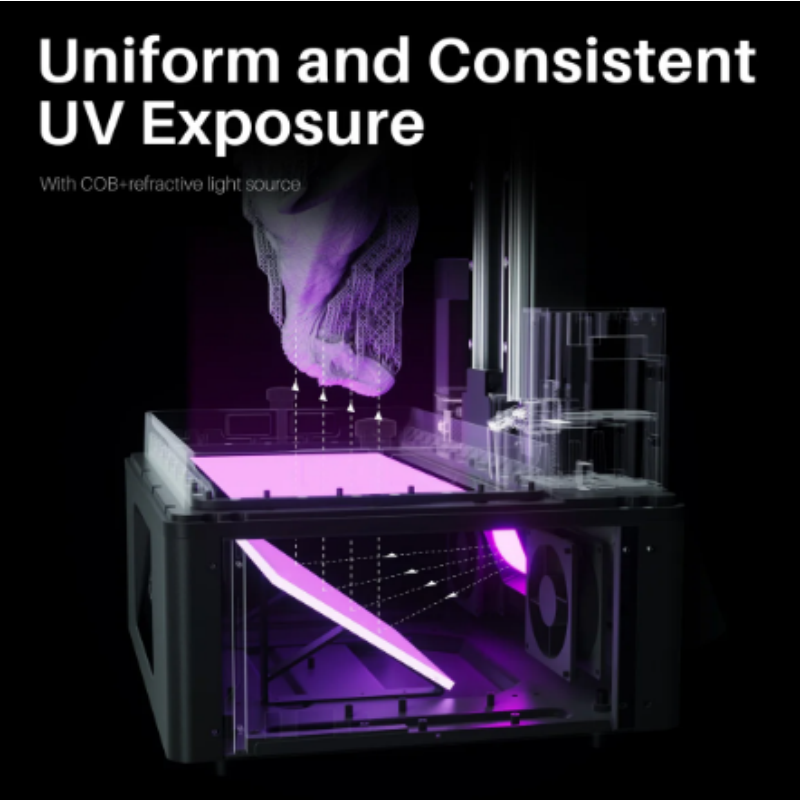

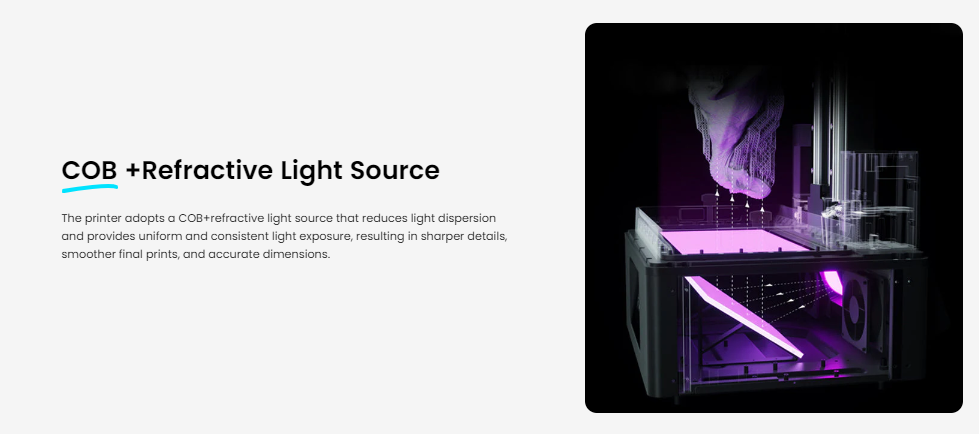

- COB + refractive light source for reduced light dispersion
- Dual linear guide rail Z axis with 0.02 mm accuracy

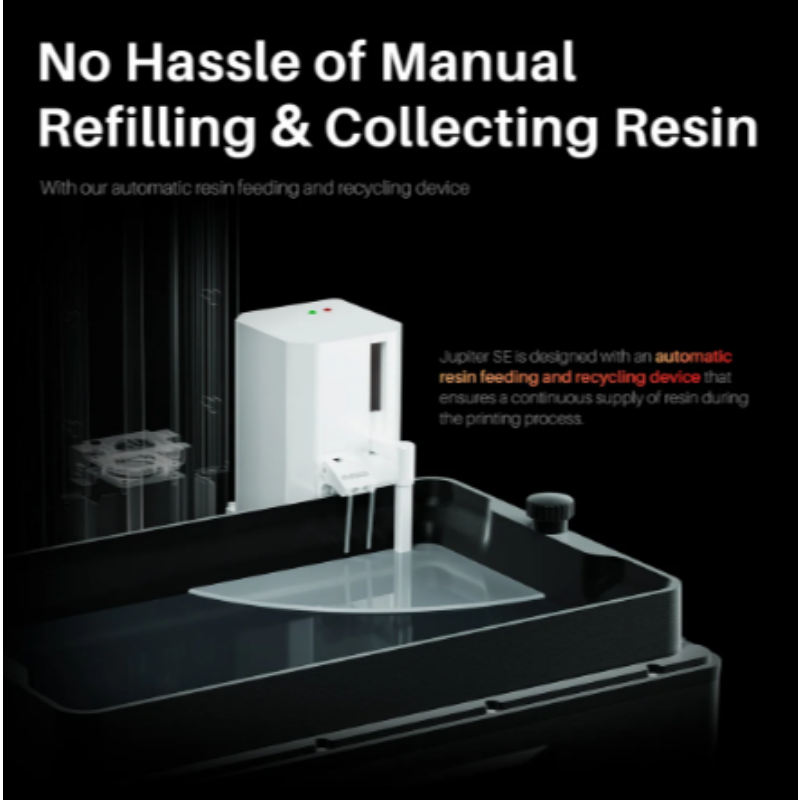

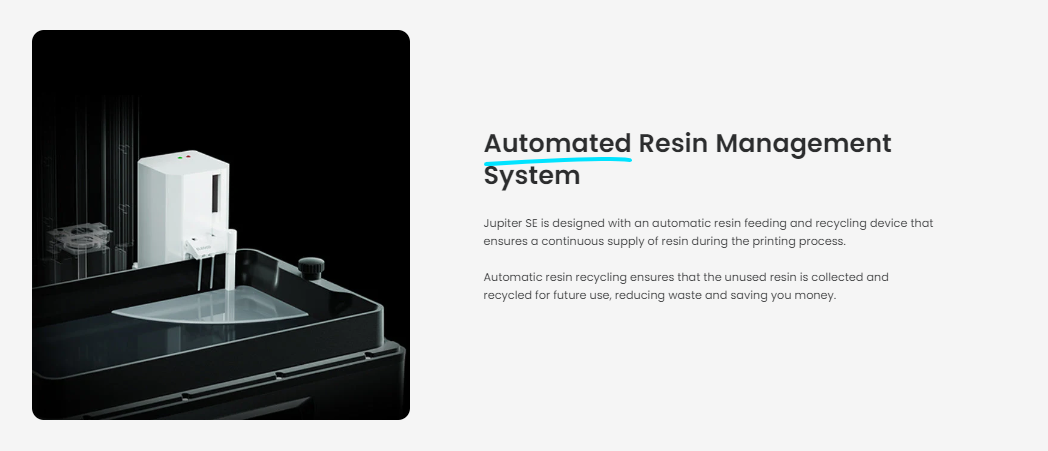

- Automatic resin feeding and recycling system
- USB air purifier included

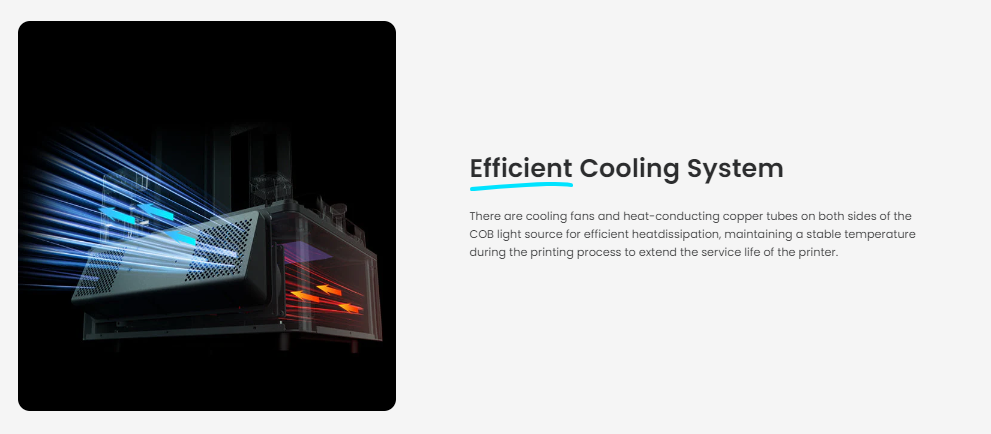

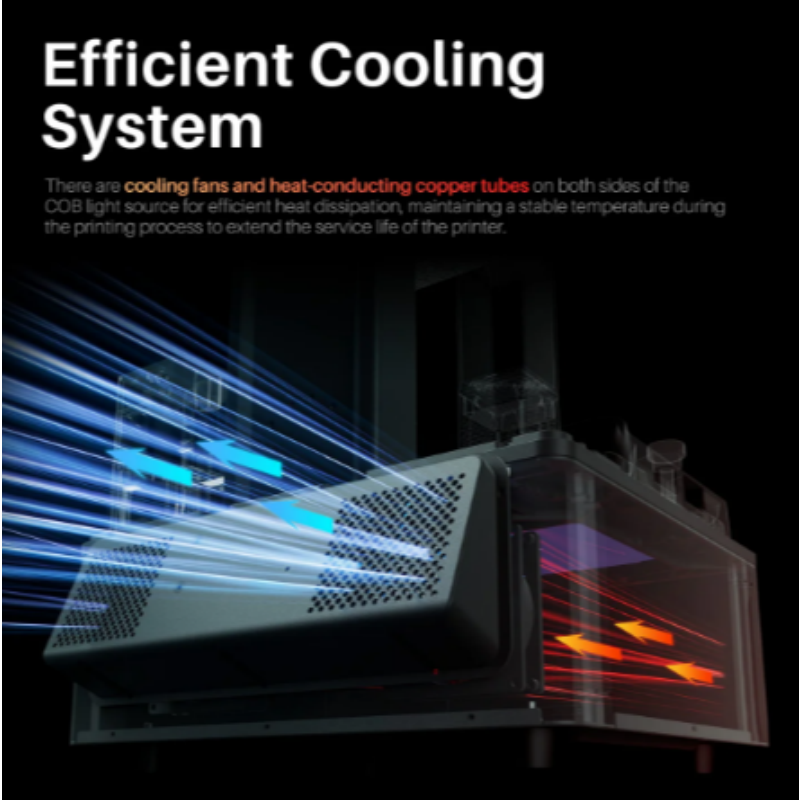

- Efficient cooling: fans plus heat-conducting copper tubes on both sides of the COB source
- 4-point leveling system with laser-carved build plate

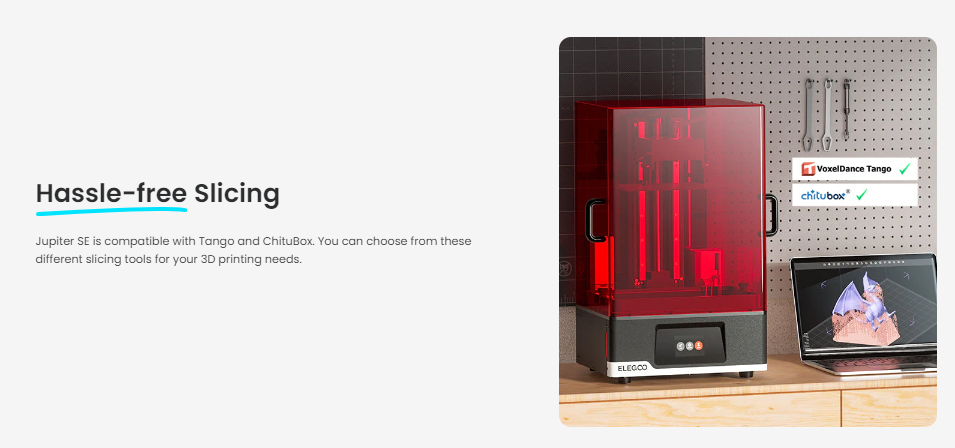

- Compatible with ChituBox and Voxeldance Tango slicers

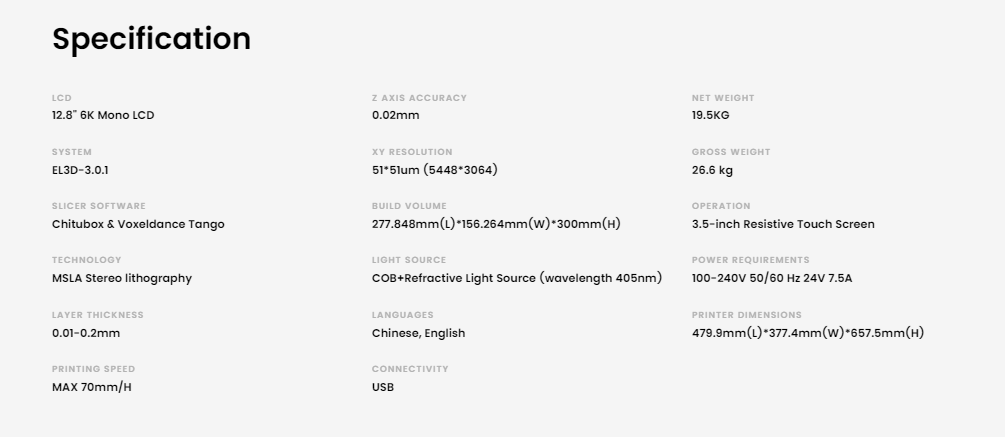

Specifications
| Build Volume | 277.848 × 156.264 × 300 mm |
| Technology | LCD 6K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 70 mm/h |
| Light Source | COB + refractive light source (405 nm) |
| Connectivity | USB |
| Machine Dimensions | 479.9 × 377.4 × 657.5 mm |
| Machine Weight | 19.5 kg (net) |
| Voltage | 100-240V 50/60 Hz 24V 7.5A |
| XY Resolution | 51 μm (5448 × 3064) |
| System | EL3D-3.0.1 |
