Description

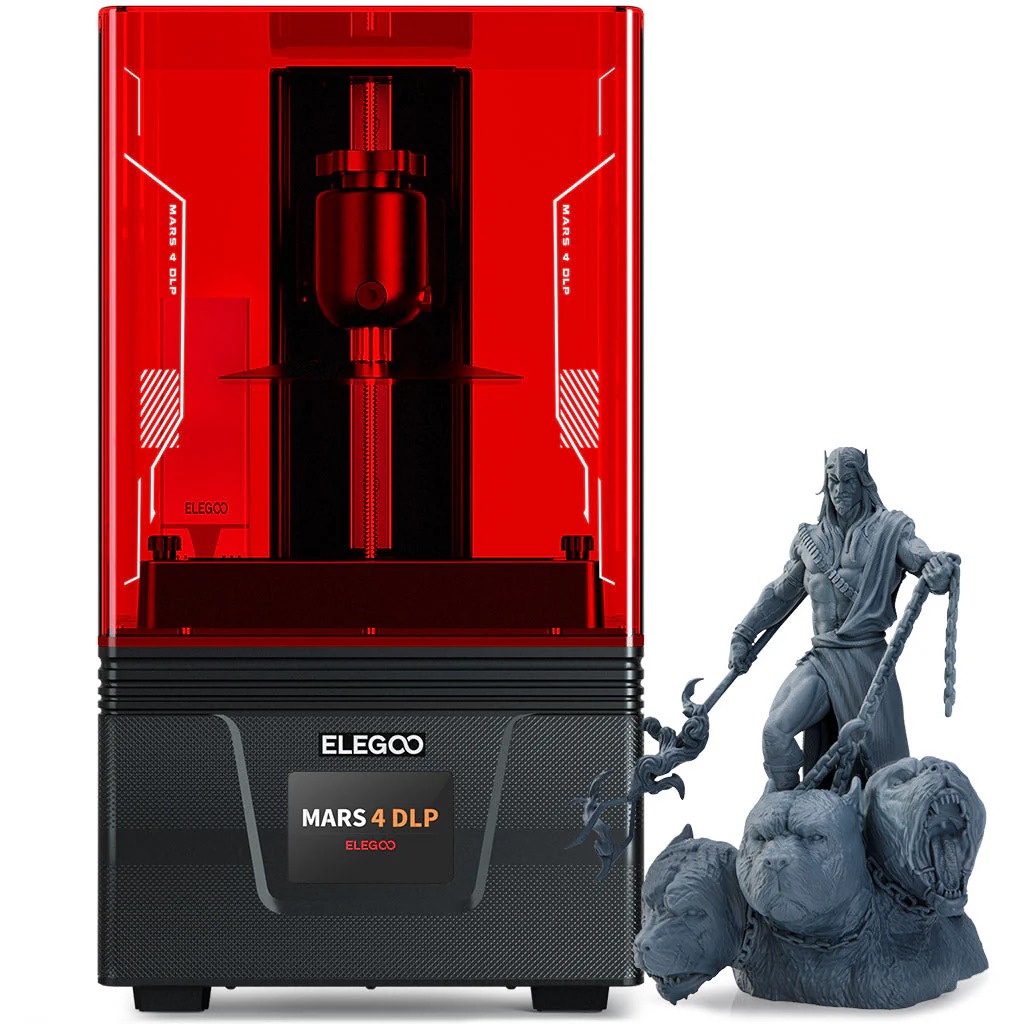

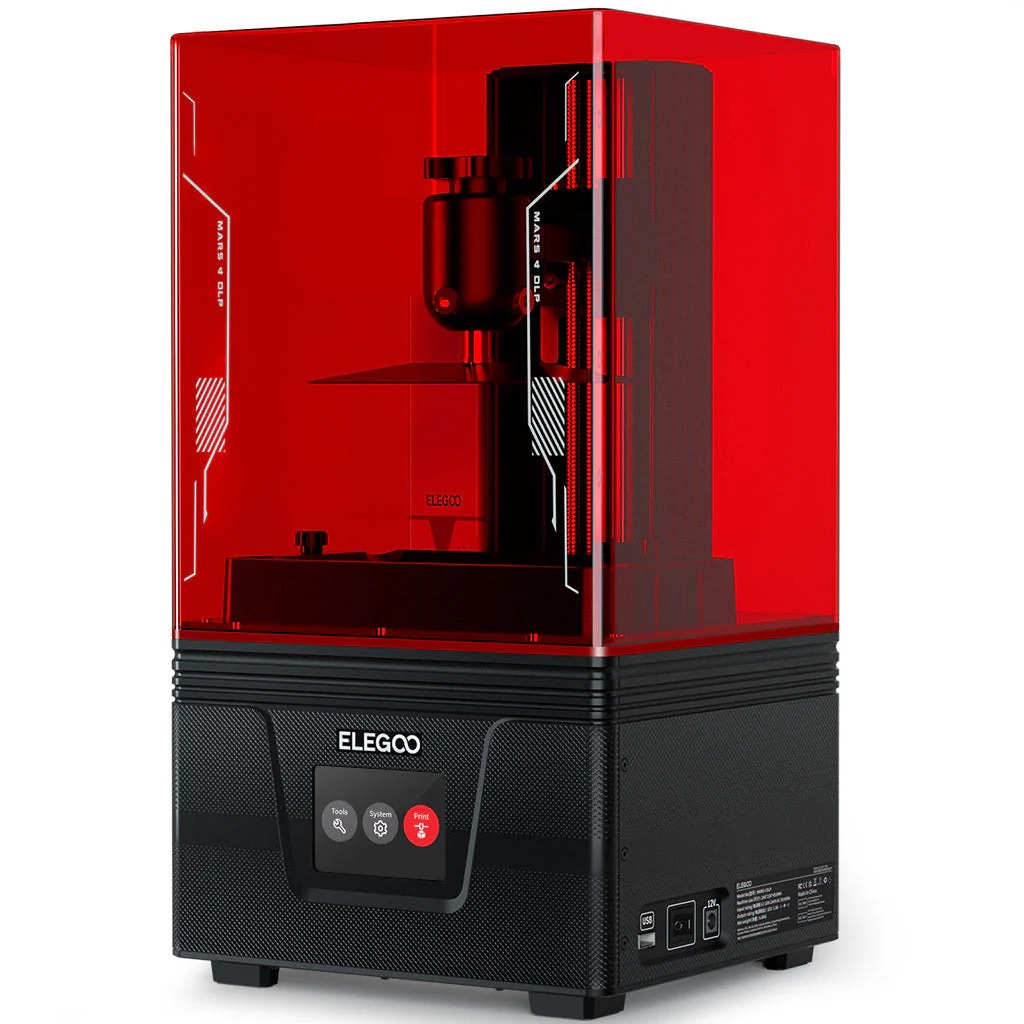

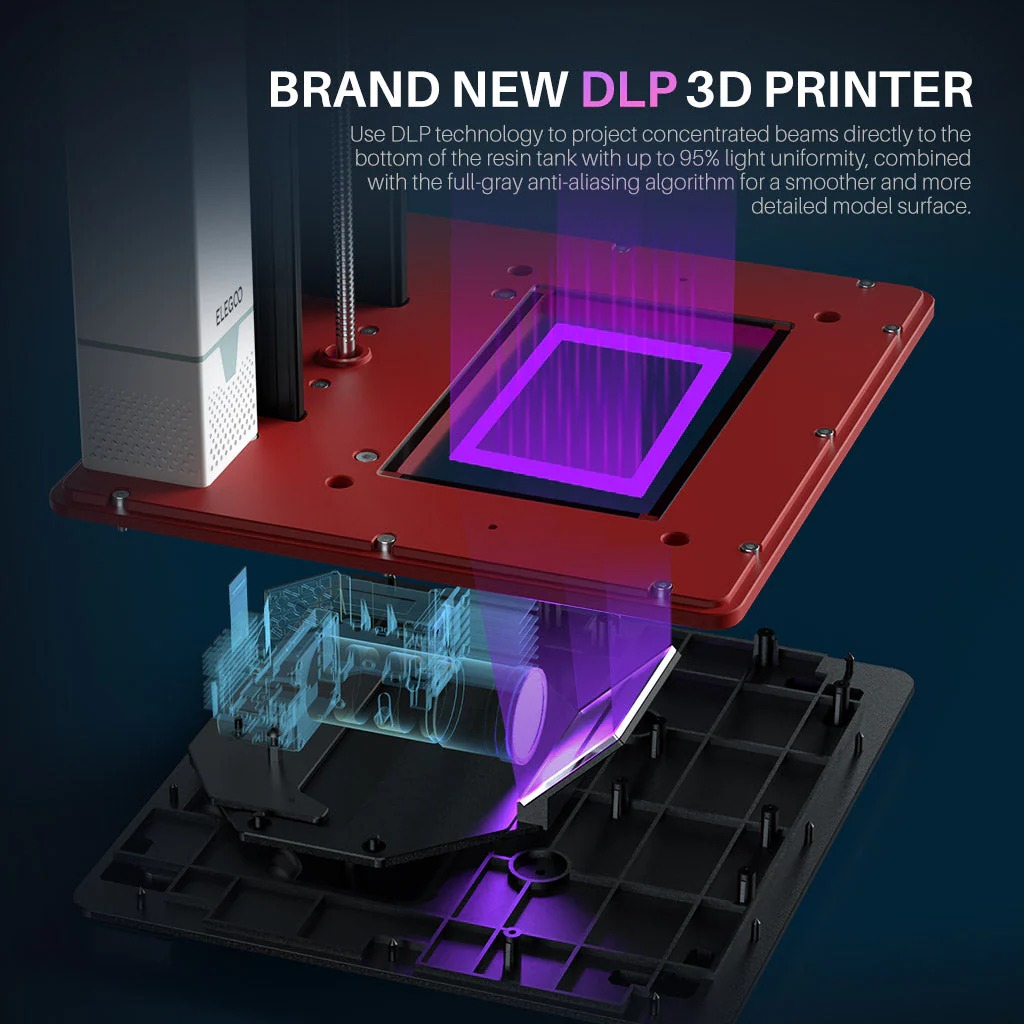

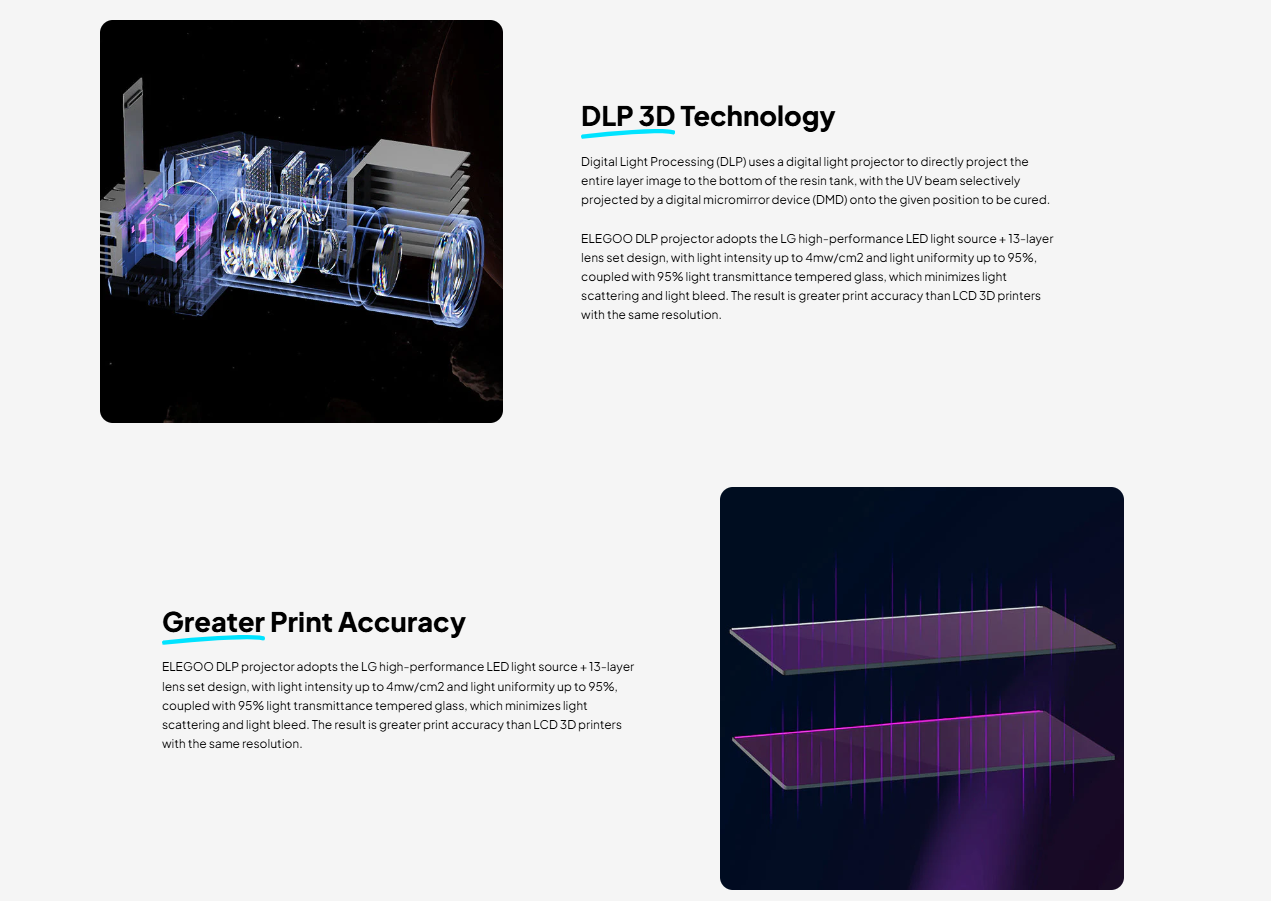

The ELEGOO Mars 4 DLP is an ultra-quiet desktop resin 3D printer driven by a 12 W DLP (Digital Light Processing) light source. Unlike masked LCD machines, a DLP projector cures each layer through a high-power optical engine for crisp detail and quiet operation.
- DLP light source, 12 W optical engine
- Ultra-quiet operation for desktop and office environments
- Compact desktop footprint
- Detailed layer curing for high-resolution resin parts
Full technical specification sheet available on request — ask us for the Mars 4 DLP datasheet with your quote.

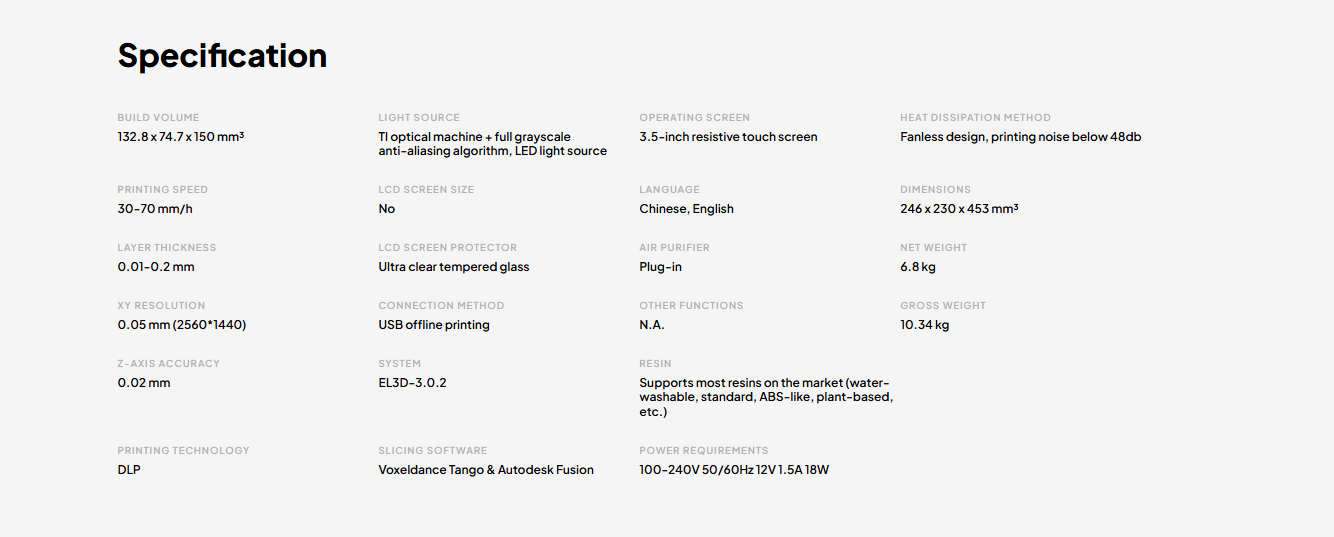

Specifications
| Build Volume | 132.8 × 74.7 × 150 mm |
| Technology | DLP Photocuring |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | 30–70 mm/h |

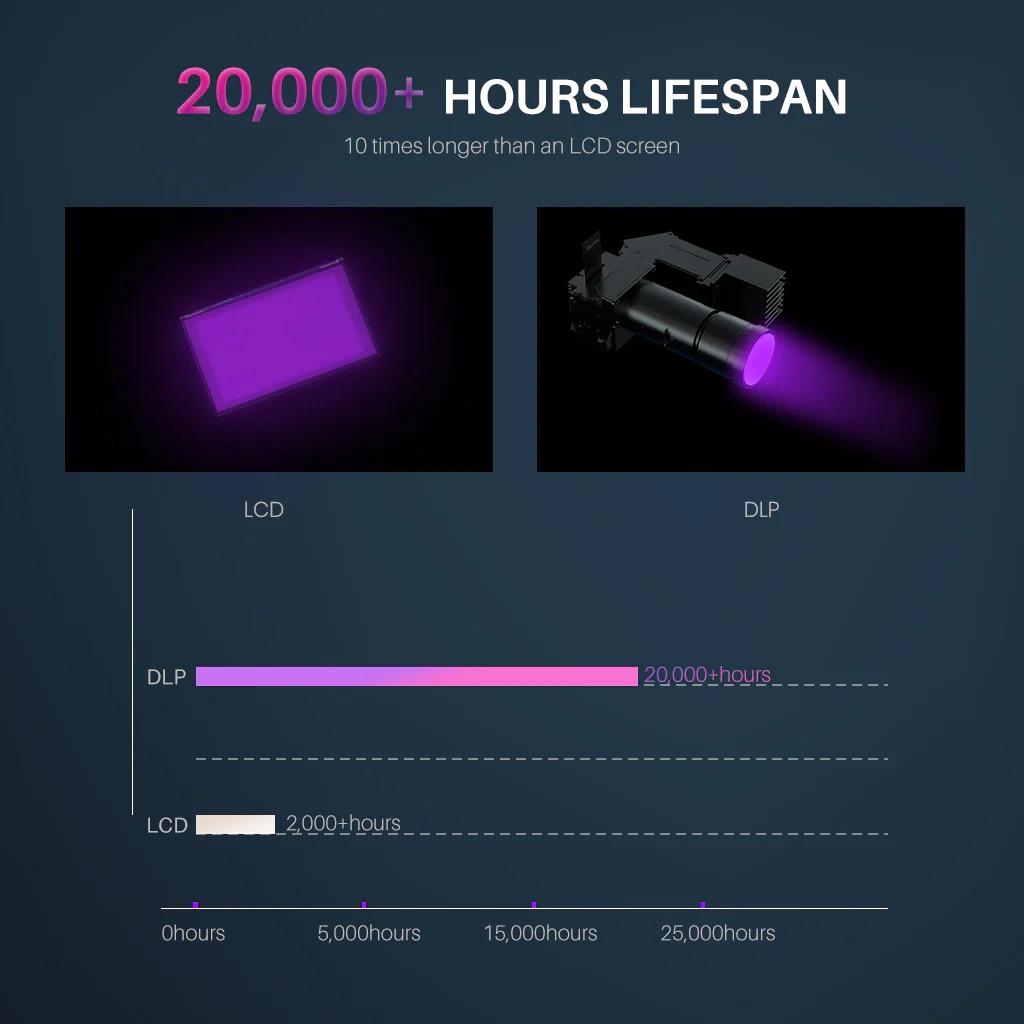

| Light Source | TI DLP projector (405 nm, 20,000+ h lifespan) |
| Connectivity | USB |
| Machine Dimensions | 246 × 230 × 453 mm |
| Machine Weight | 6.8 kg (net) |

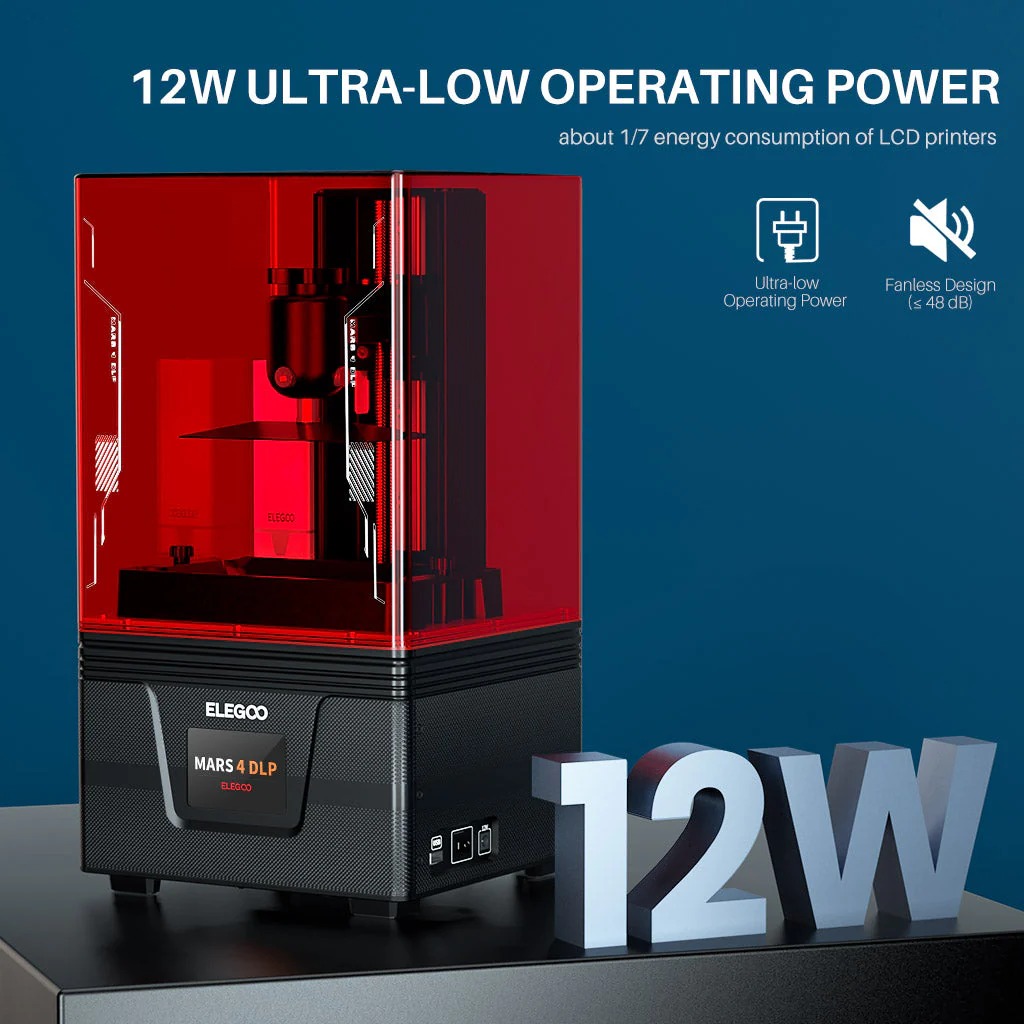

| Voltage | 100–240V 50/60 Hz, 12V 1.5A (18 W) |
| XY Resolution | 0.05 mm (2560 × 1440) |
| Z-axis Accuracy | 0.00125 mm |
| System | EL3D-3.0.2 |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
