Description

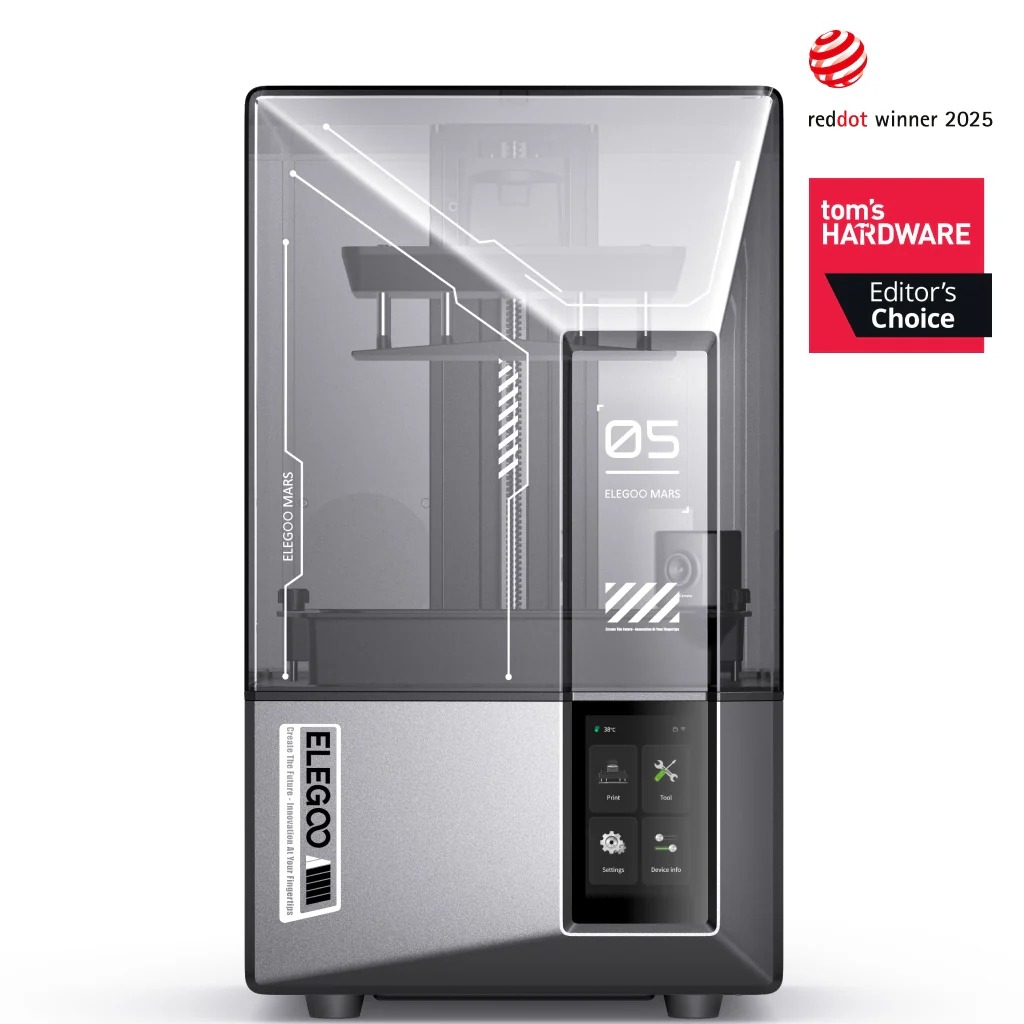

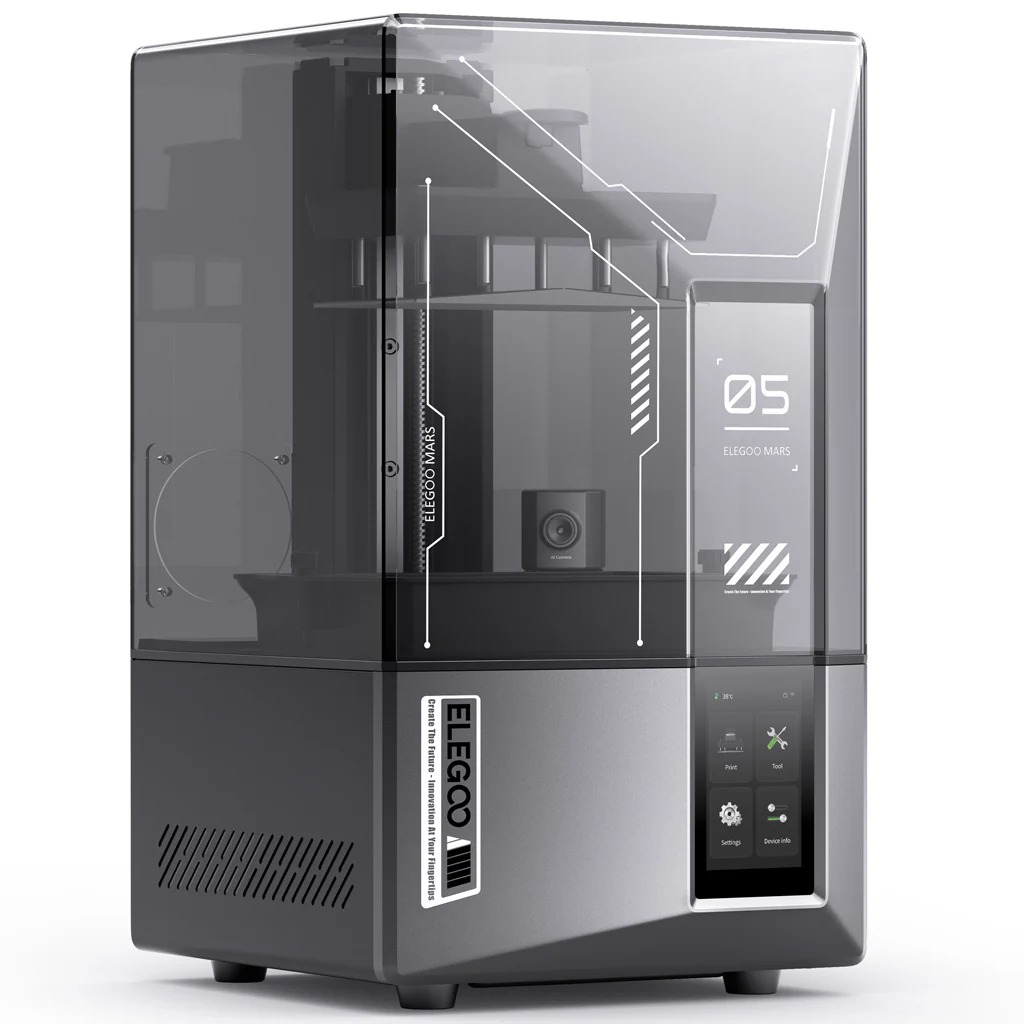

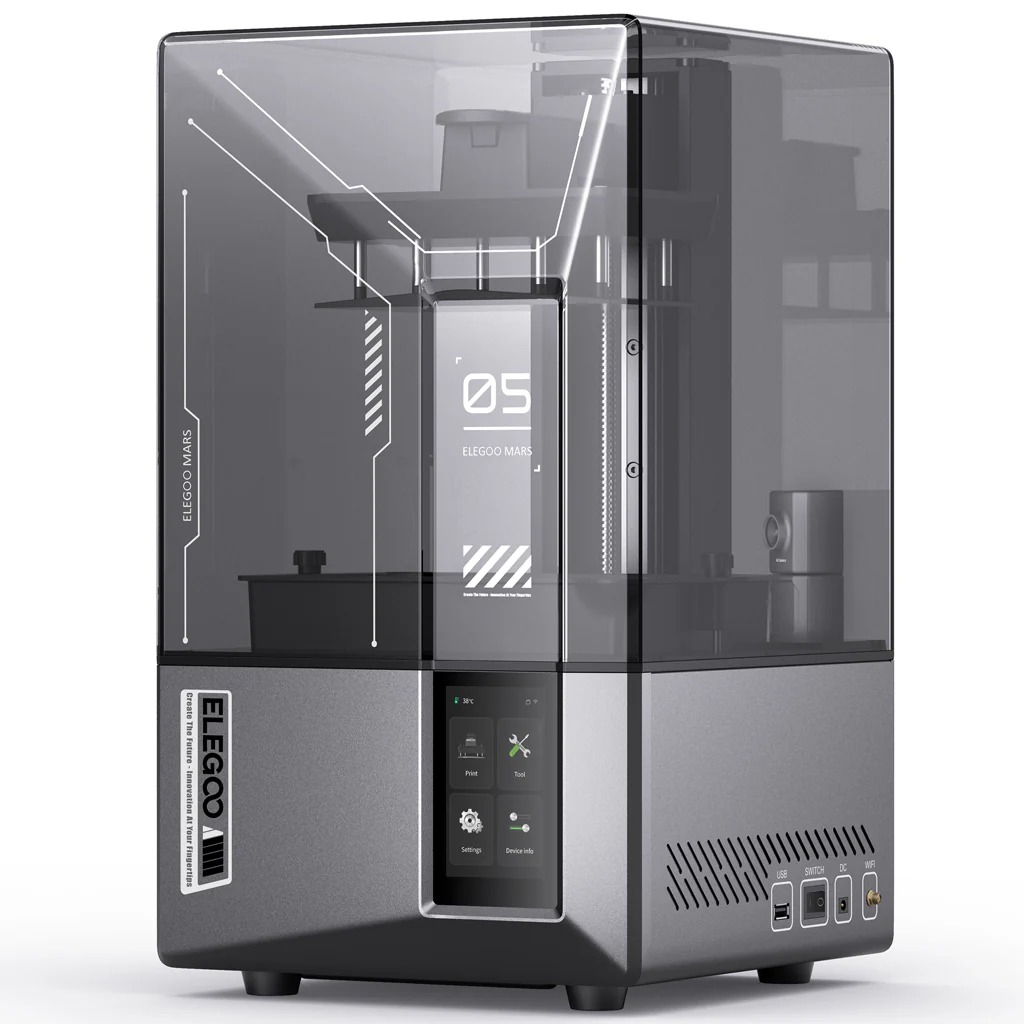

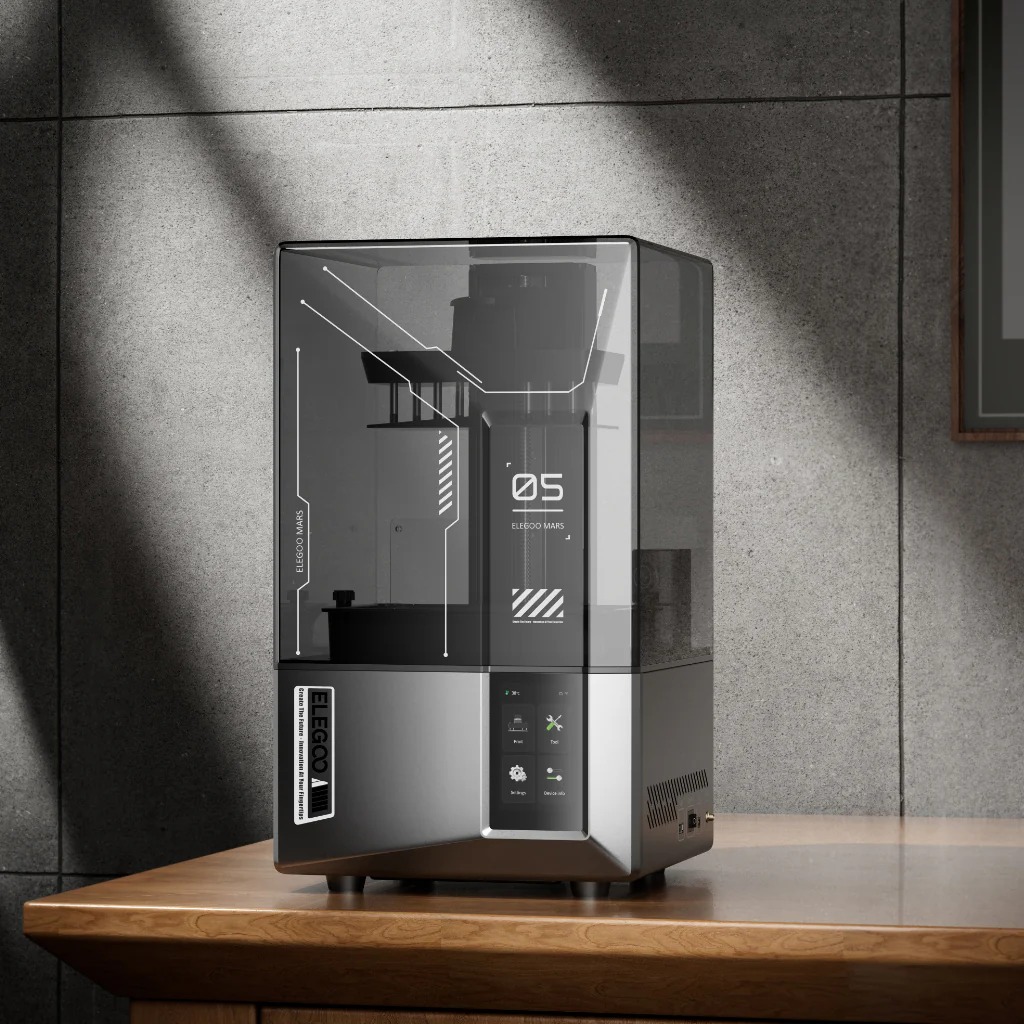

The ELEGOO Mars 5 Ultra brings tilt release innovation to the Mars line: a 7-inch 9K mono LCD at 18 × 18 μm, print speeds up to 150 mm/h and an AI camera that watches every print.
- Build volume: 153.36 × 77.76 × 165 mm
- 7-inch 9K mono LCD, resolution 8,520 × 4,320; XY resolution 18 × 18 μm
- Layer thickness 0.01–0.2 mm; Z-axis accuracy 0.02 mm

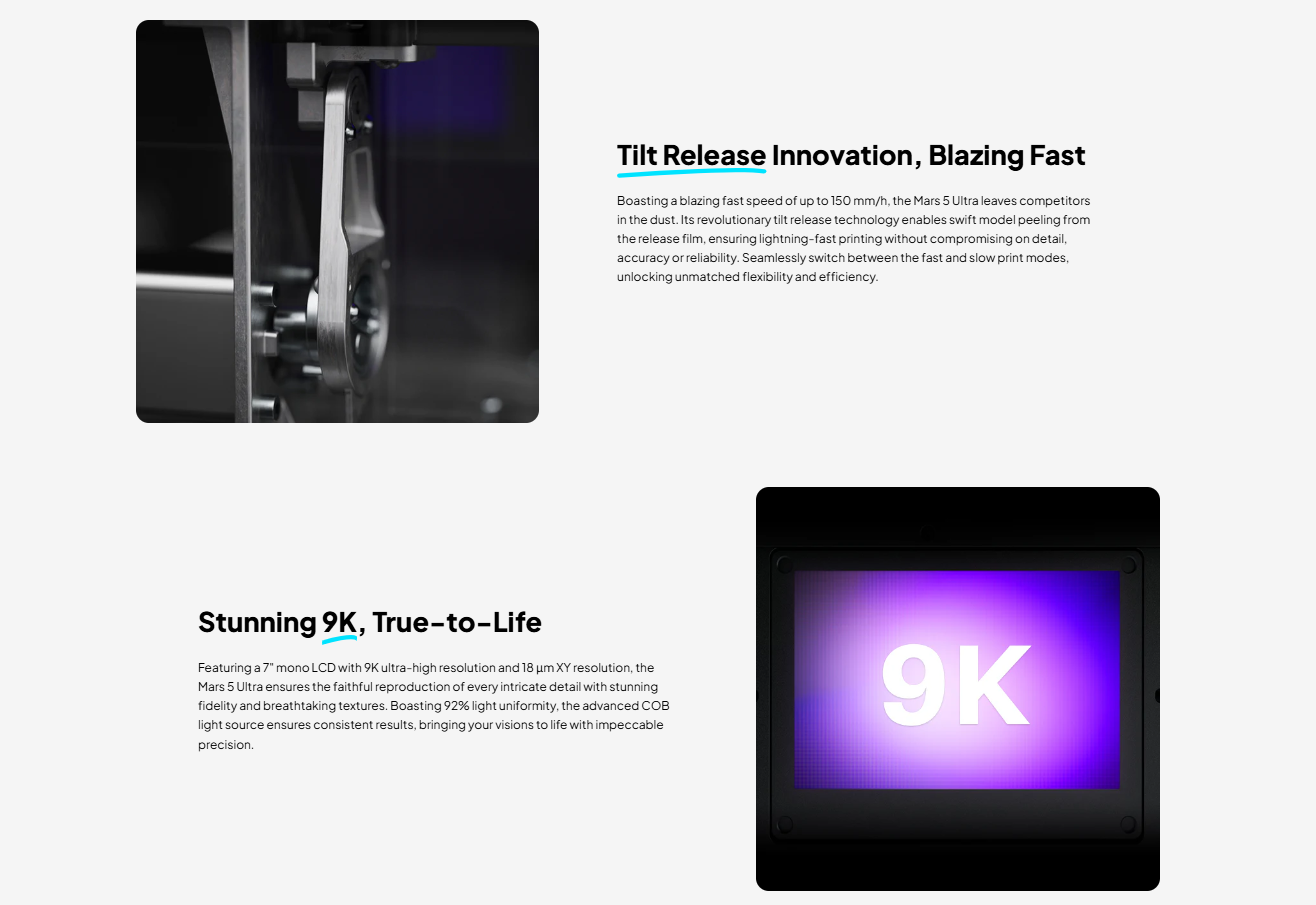

- Max print speed 150 mm/h with tilt release technology
- COB light source, 405 nm, 92% light uniformity

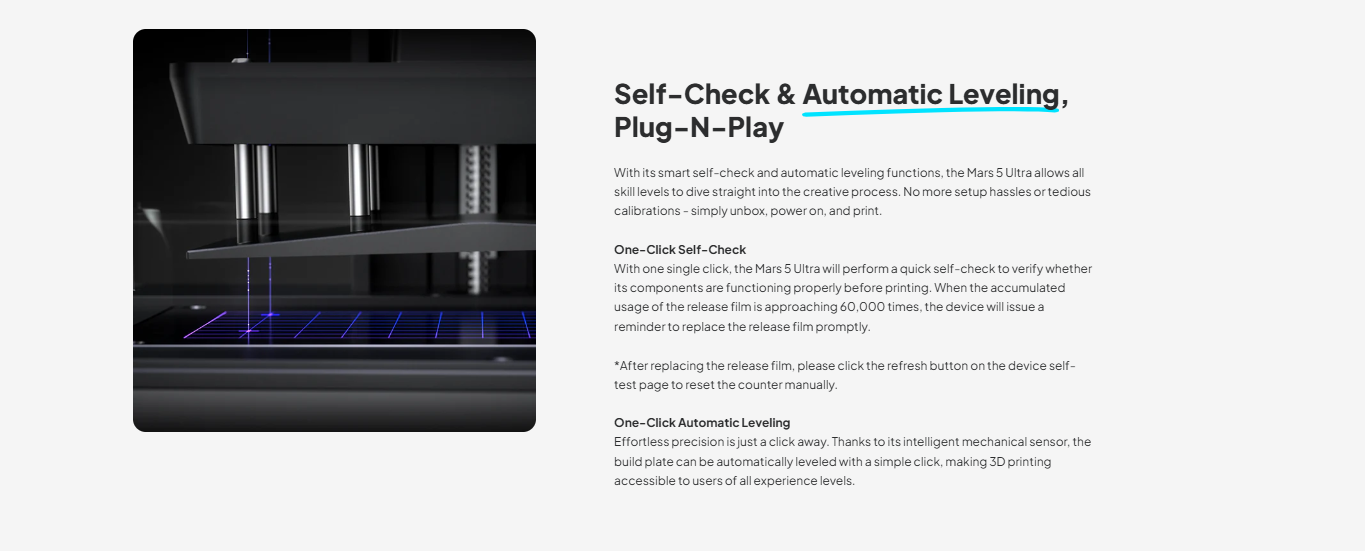

- One-click auto leveling and self-check

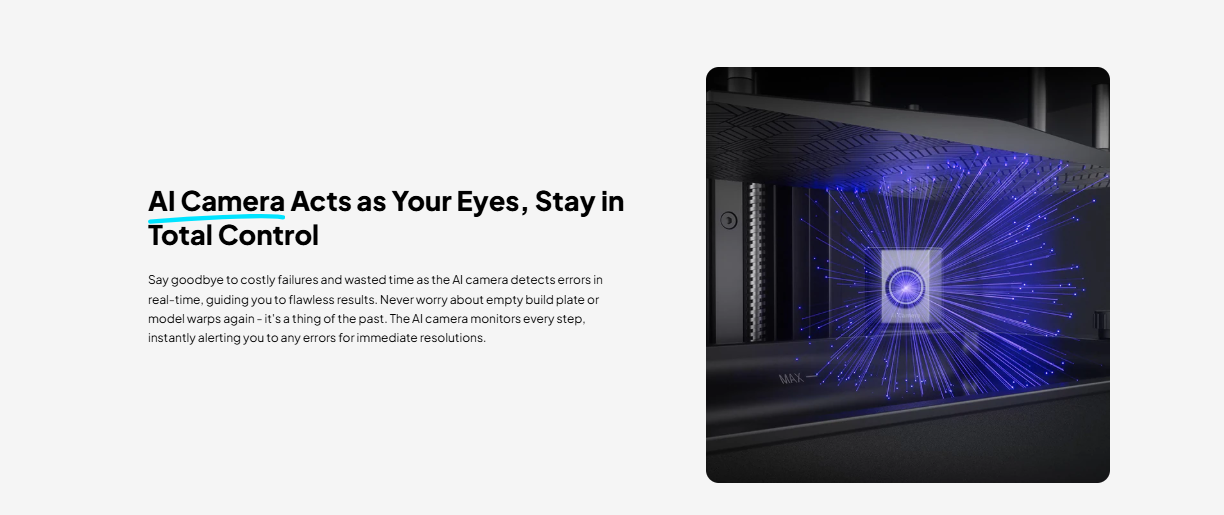

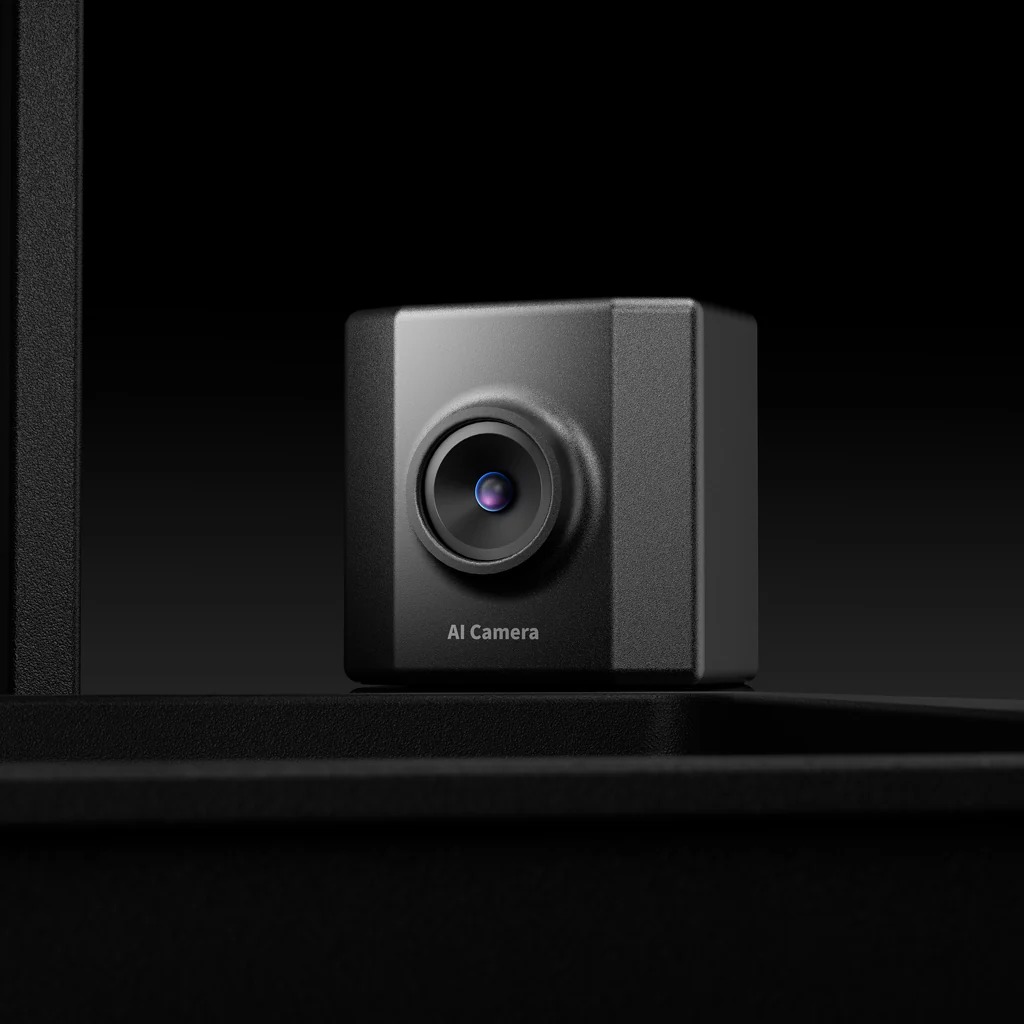

- AI camera: empty build plate detection, warp detection, real-time monitoring, time-lapse

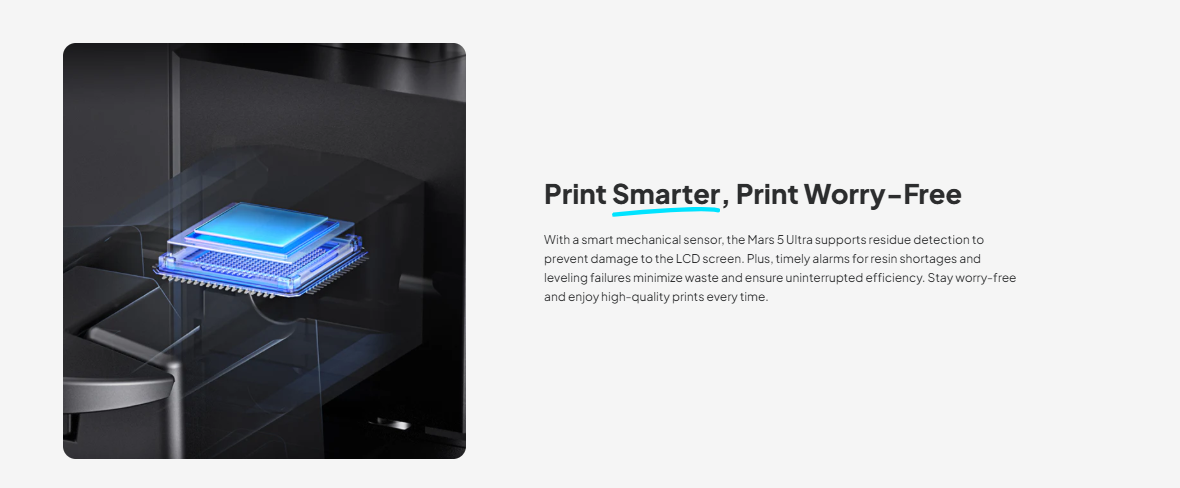

- Smart mechanical sensor: residue, resin shortage and leveling failure alarms

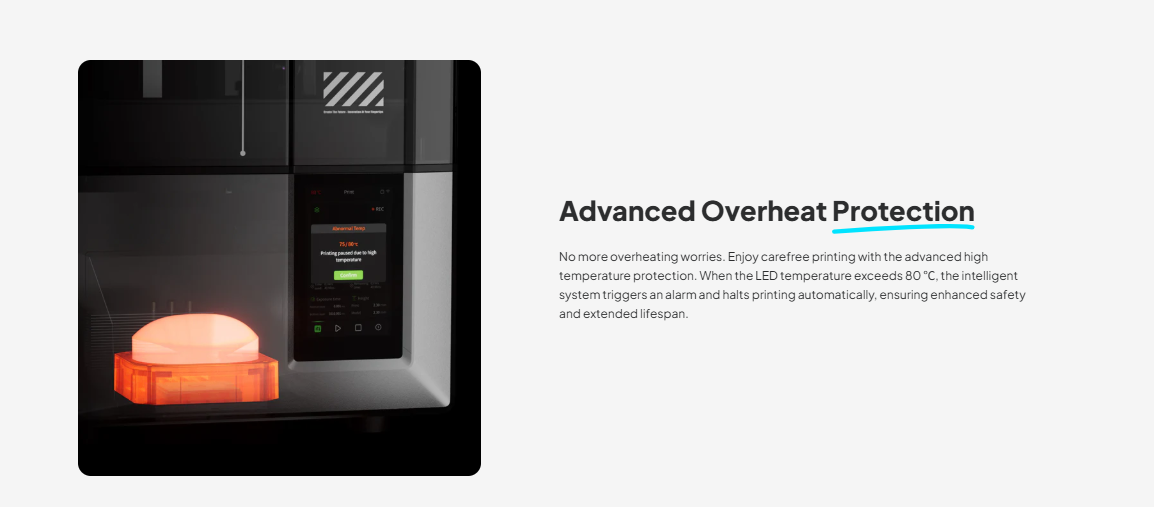

- Power loss resume and Wi-Fi cluster printing; overheat protection at 80 °C
- Section-based exposure; 9H tempered glass LCD protector

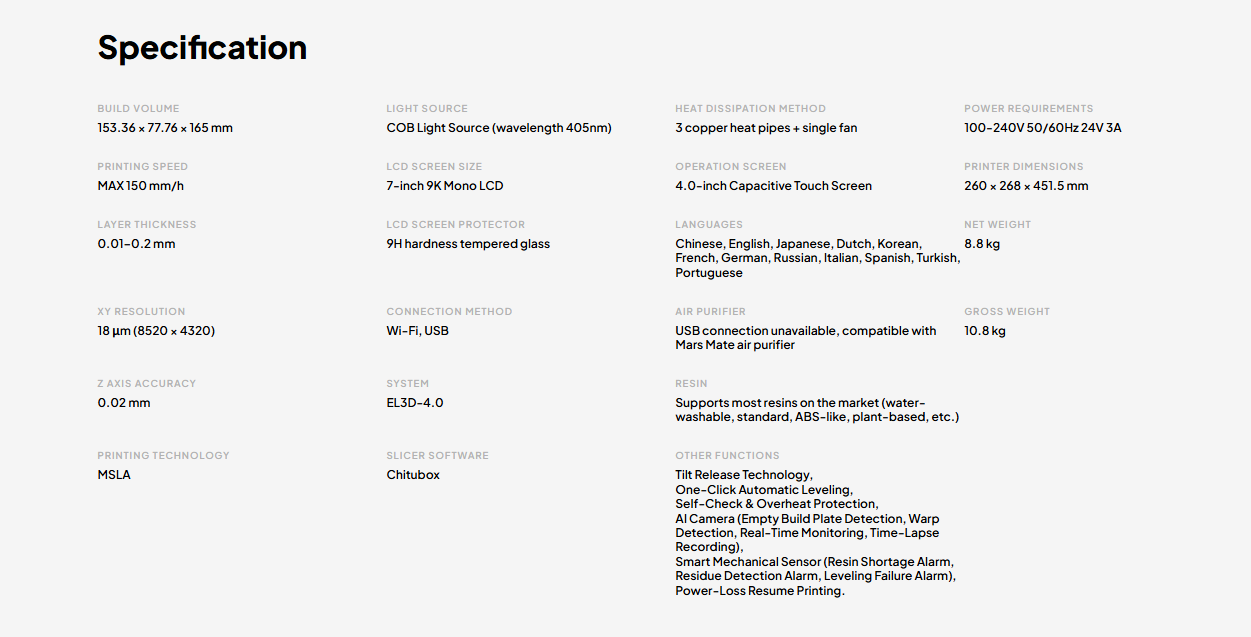

Specifications
| Build Volume | 153.36 × 77.76 × 165 mm |
| Technology | LCD 9K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 150 mm/h |
| Light Source | COB light source (405 nm) |
| Connectivity | Wi-Fi, USB |
| Machine Dimensions | 260 × 268 × 451.5 mm |
| Machine Weight | 8.8 kg (net) |
| Voltage | 100-240V 50/60Hz 24V 3A |
| XY Resolution | 18 μm (8520 × 4320) |
| System | EL3D-4.0 |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
