Description

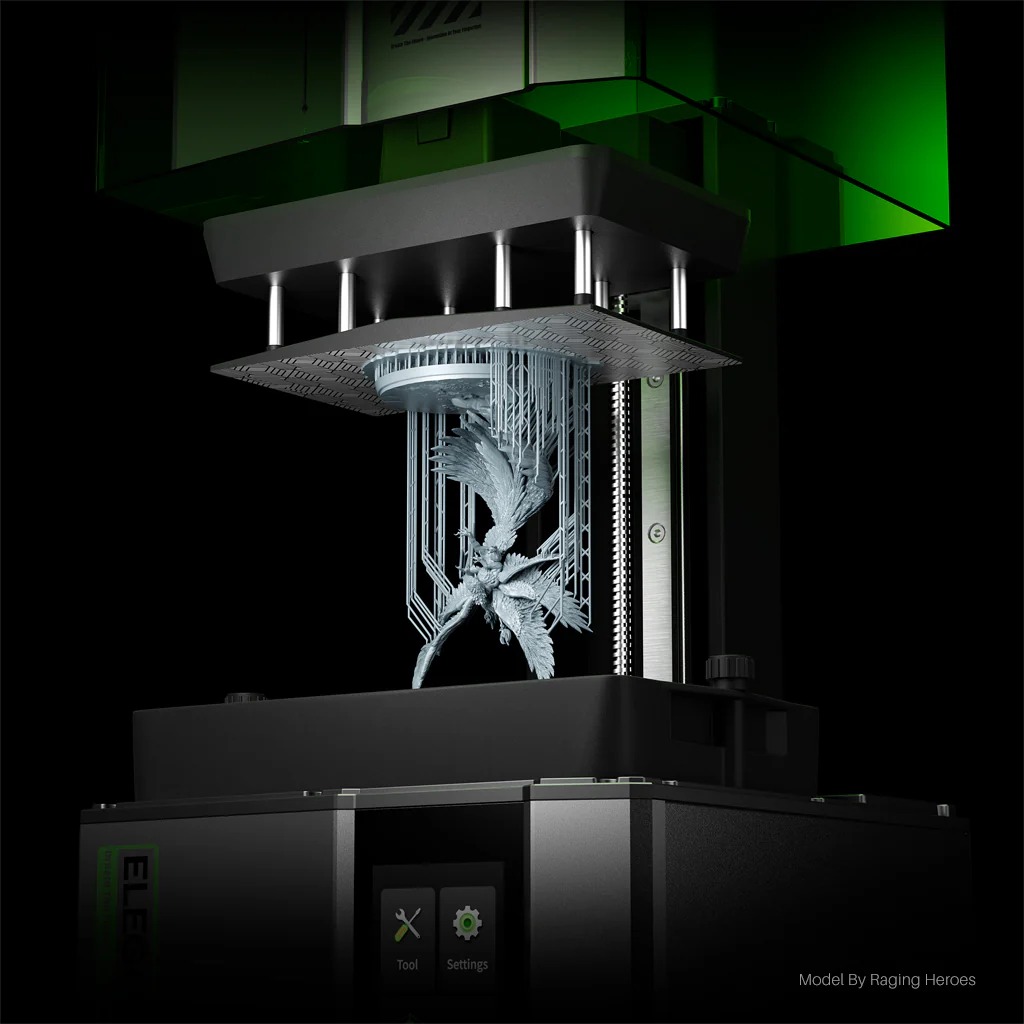

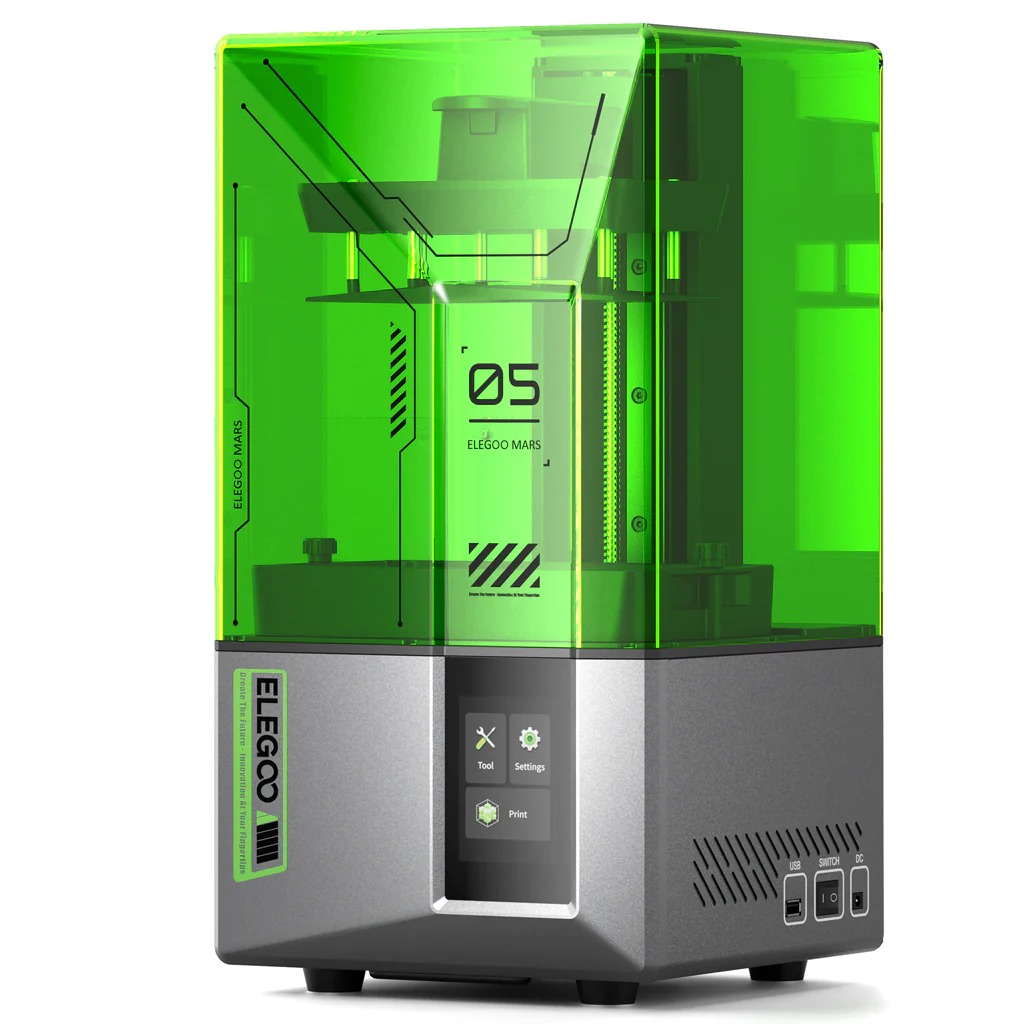

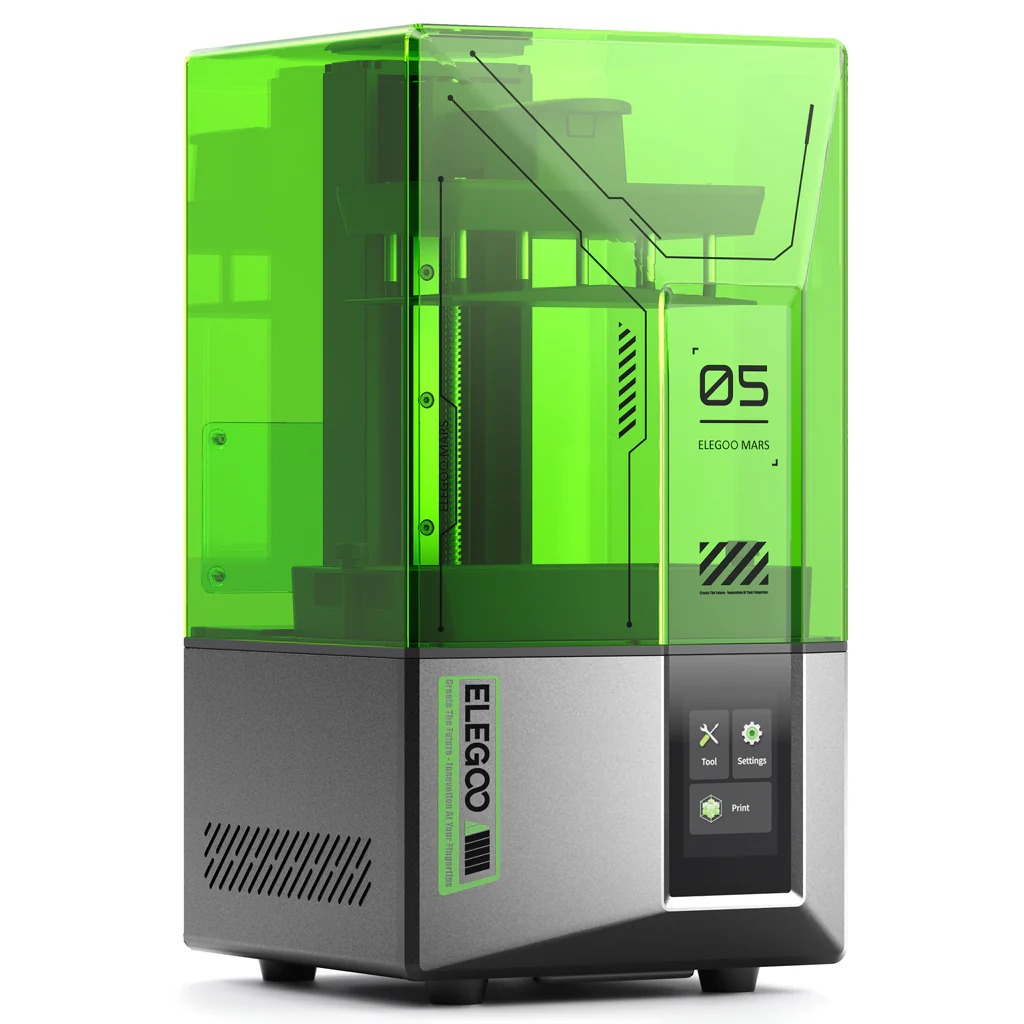

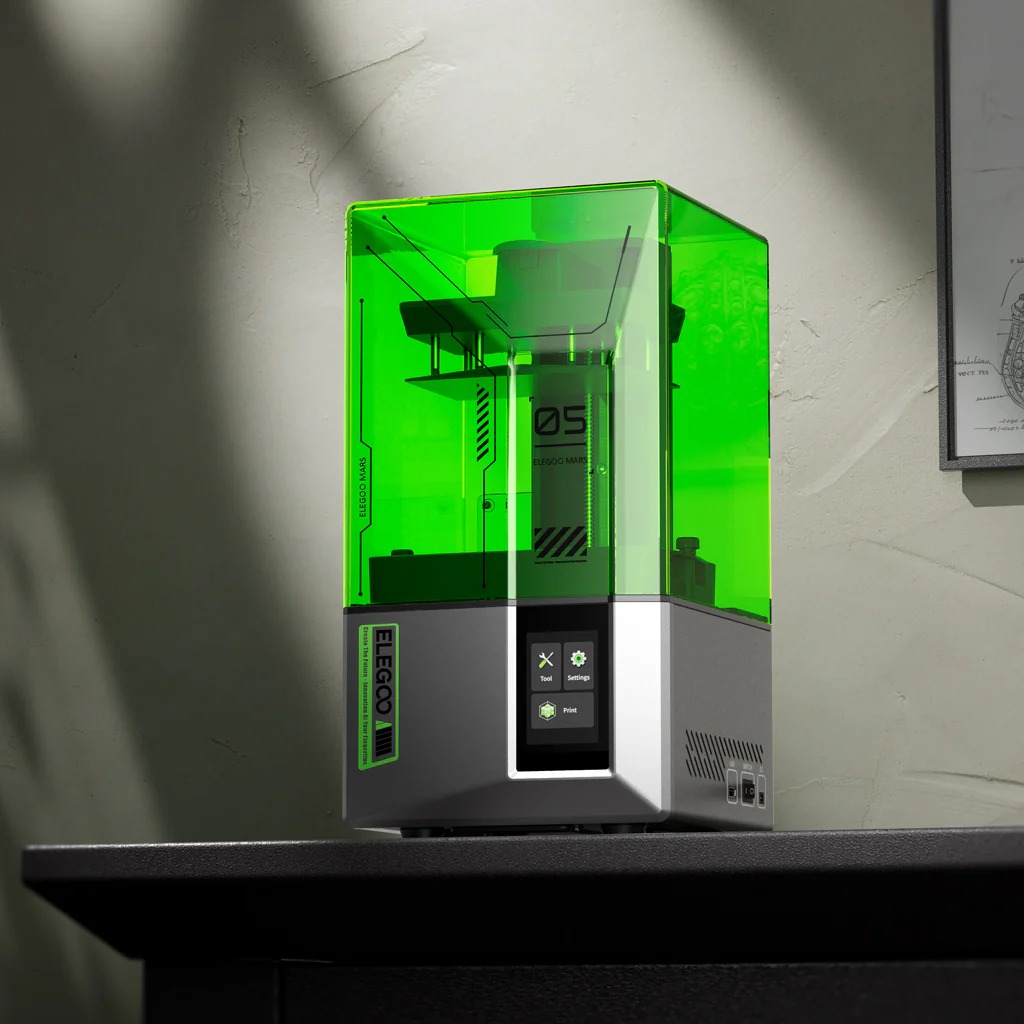

The ELEGOO Mars 5 is an affordable resin 3D printer made for beginners: automatic leveling, one-click self-check and smart mechanical sensors that detect resin shortage, residue and leveling failure.
- Build volume: 143.43 × 89.6 × 150 mm
- 6.6-inch 4K mono LCD, resolution 4,098 × 2,560; XY resolution 35 × 35 μm
- Layer thickness 0.01–0.2 mm; Z-axis accuracy 0.02 mm
- Max print speed 70 mm/h
- COB light source, 405 nm wavelength

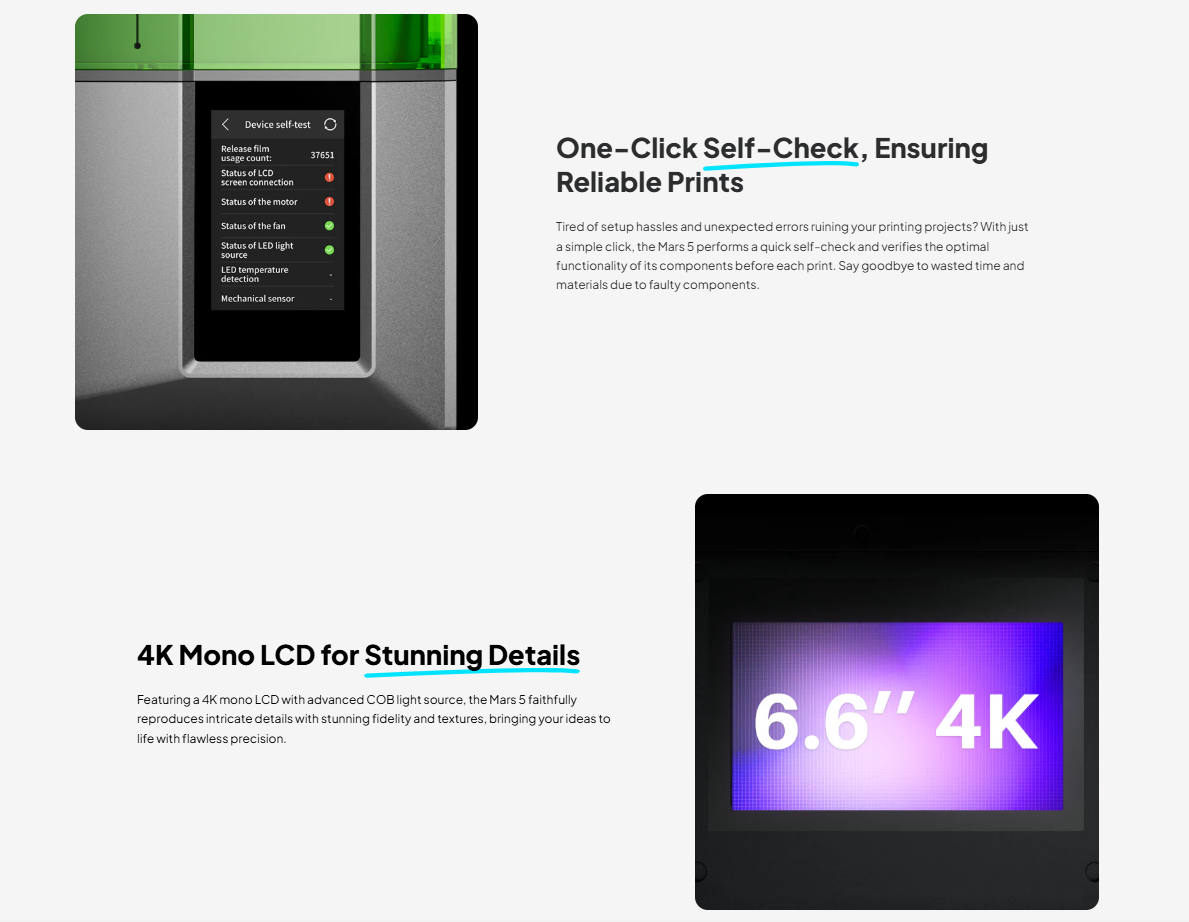

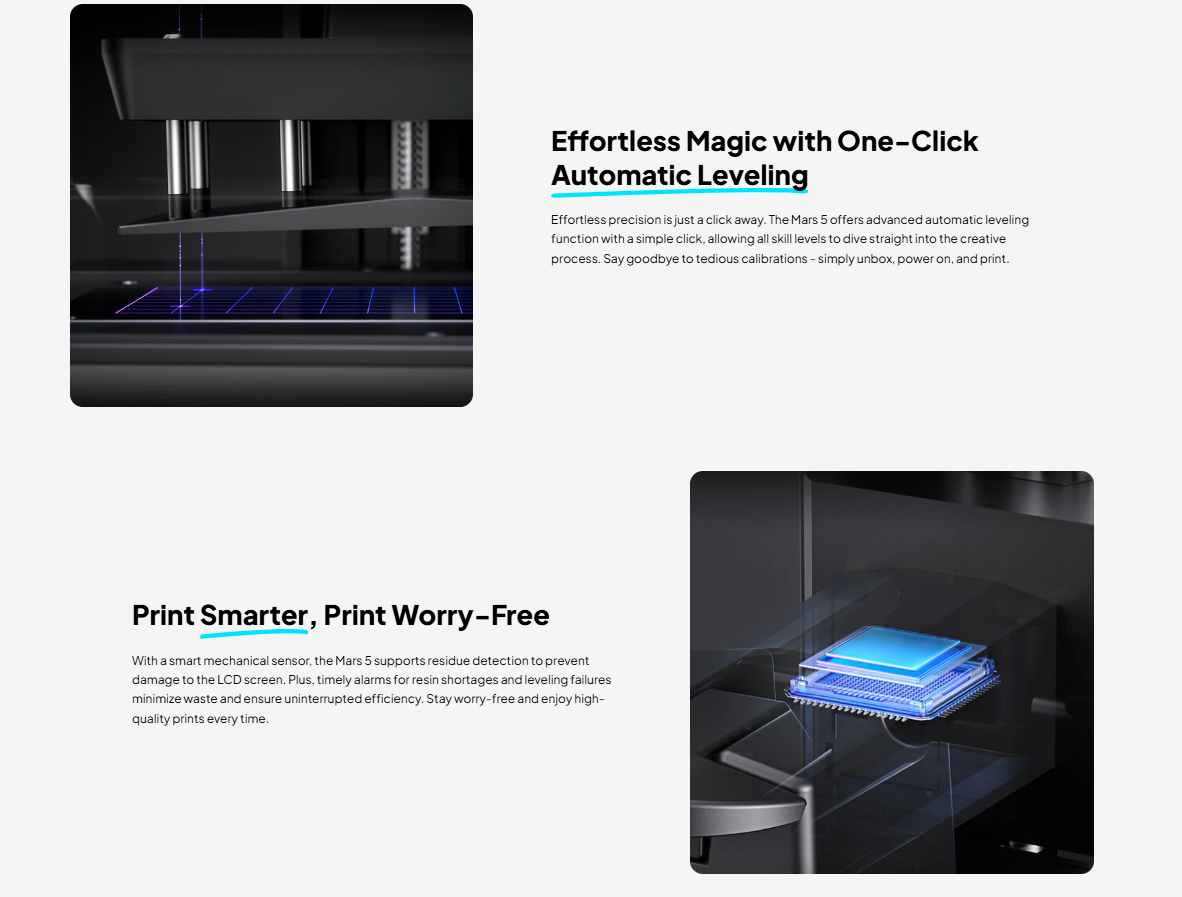

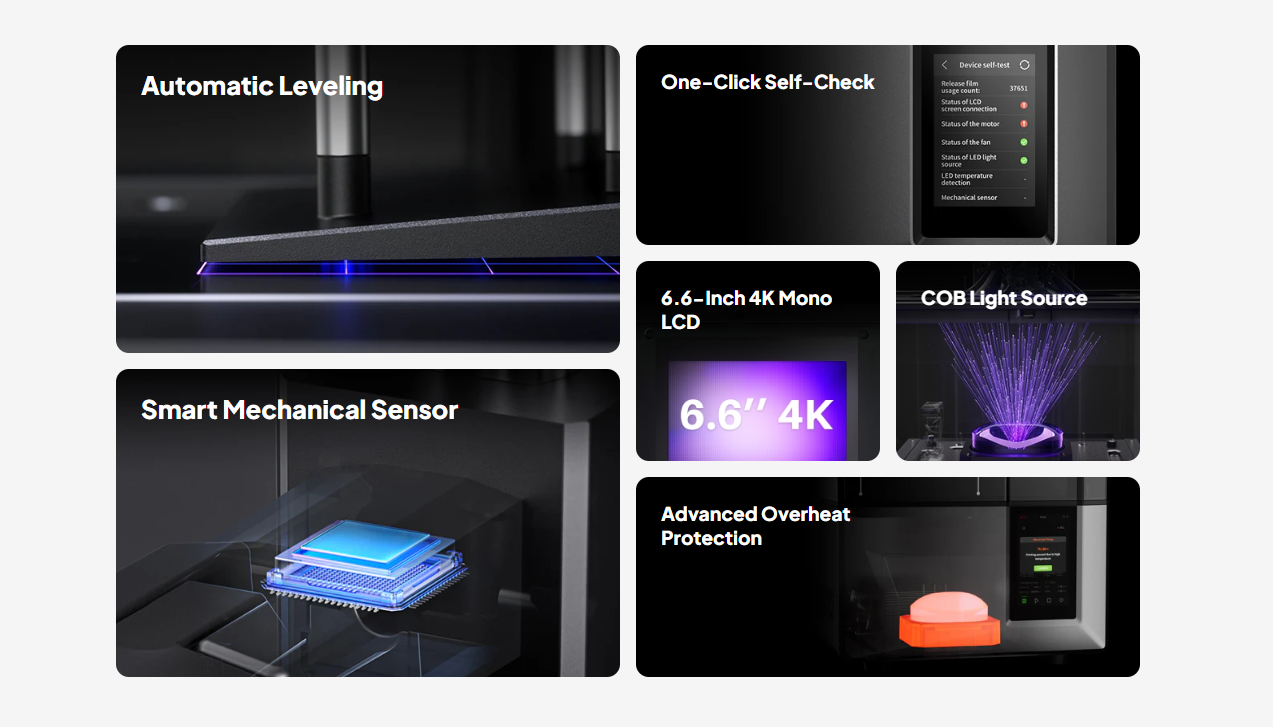

- Automatic leveling and one-click self-check
- Smart mechanical sensor: resin shortage, residue detection, leveling failure alarms

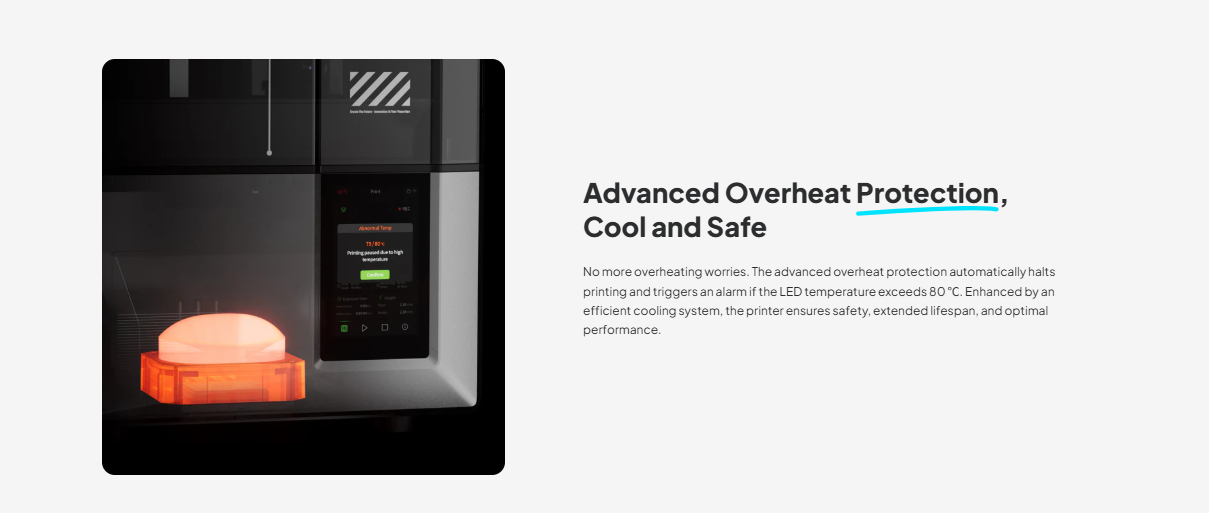

- Overheat protection: auto-halt and alarm if the LED exceeds 80 °C

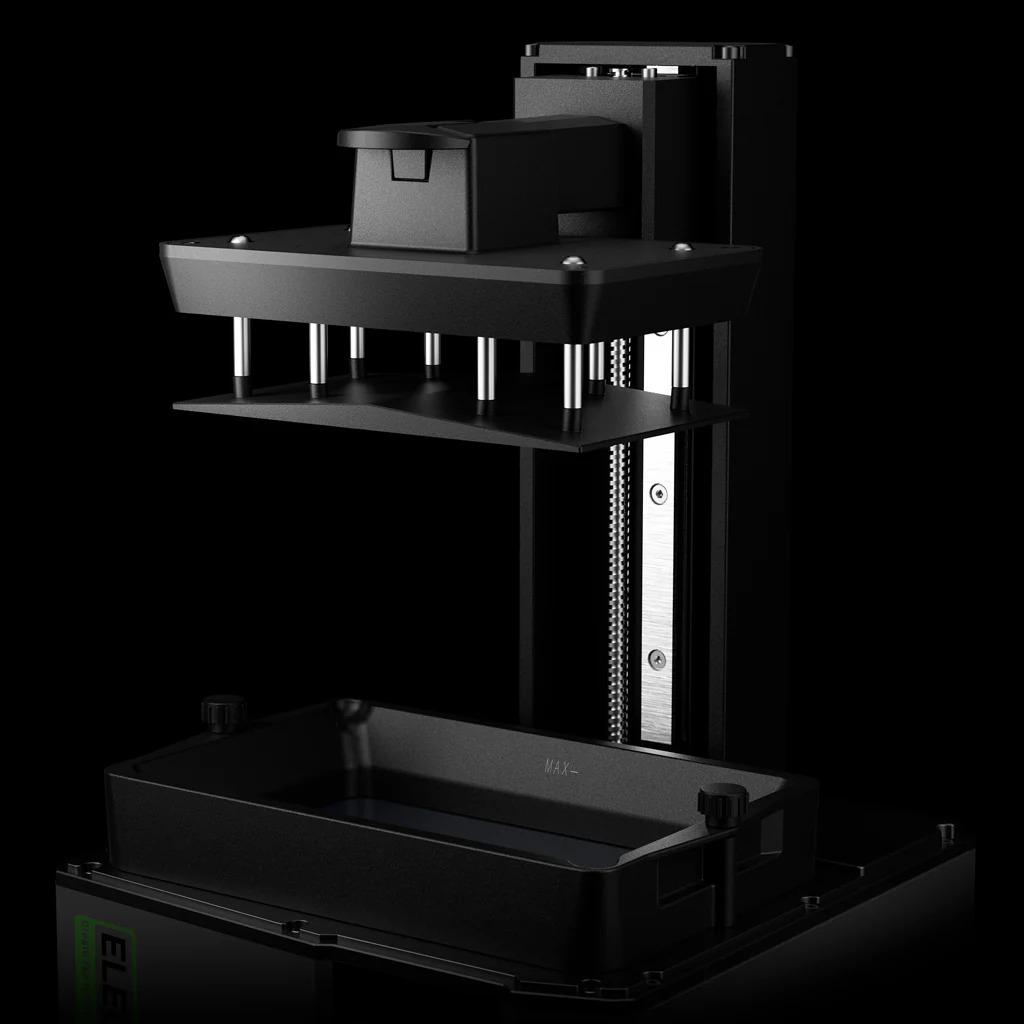

- Quick-release laser-engraved build plate; dual pour spouts on the resin tank
- 3.5-inch resistive touch screen, USB; compatible with the Mars Mate air purifier

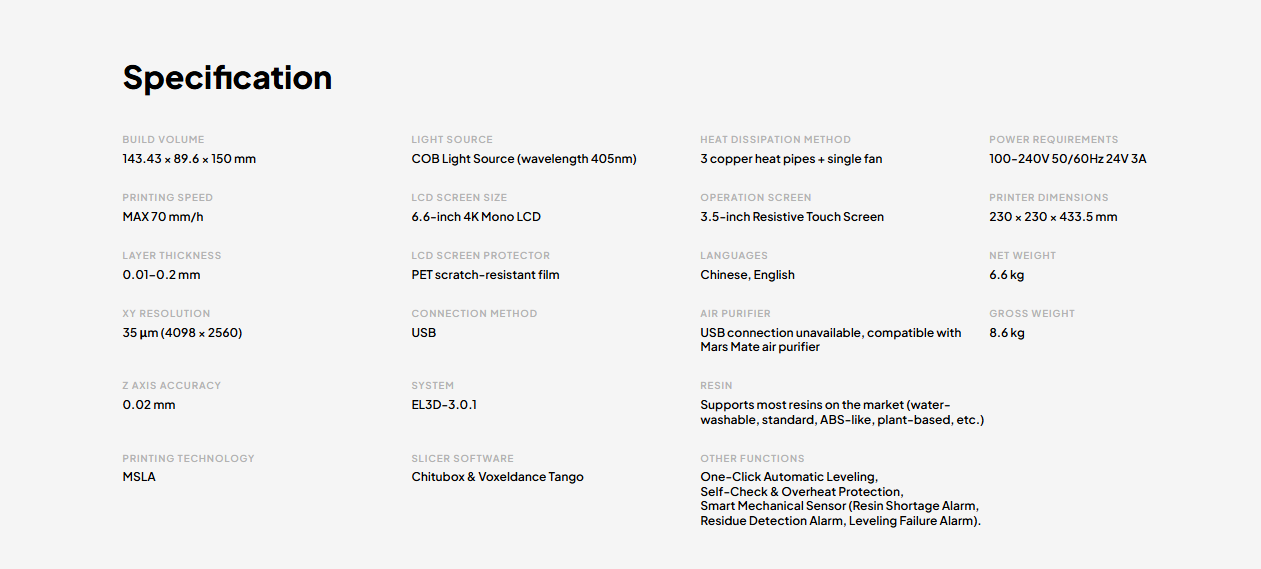

Specifications
| Build Volume | 143.43 × 89.6 × 150 mm |
| Technology | LCD 4K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 70 mm/h |
| Light Source | COB light source (405 nm) |
| Connectivity | USB |
| Machine Dimensions | 230 × 230 × 433.5 mm |
| Machine Weight | 6.6 kg (net) |
| Voltage | 100-240V 50/60Hz 24V 3A |
| XY Resolution | 35 μm (4098 × 2560) |
| System | EL3D-3.0.1 |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
