Description

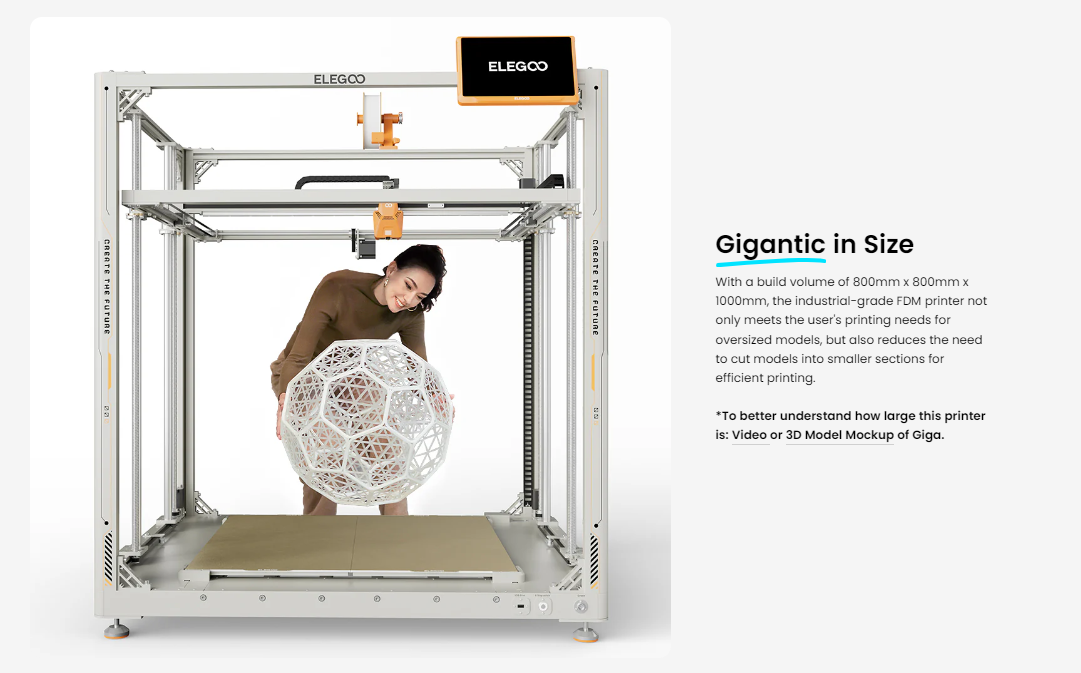

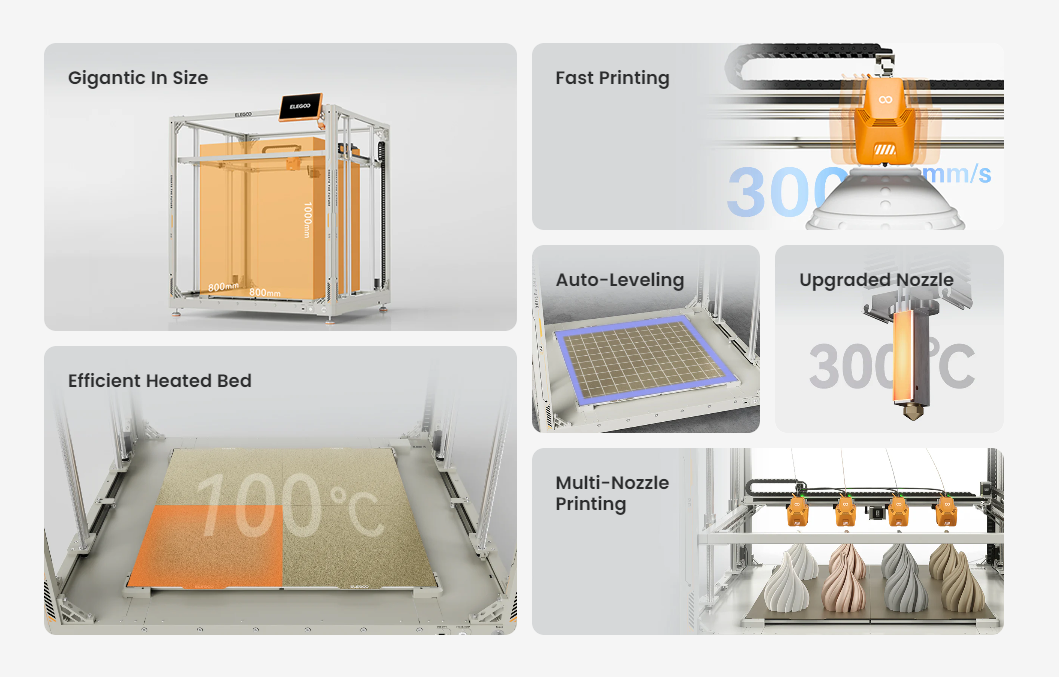

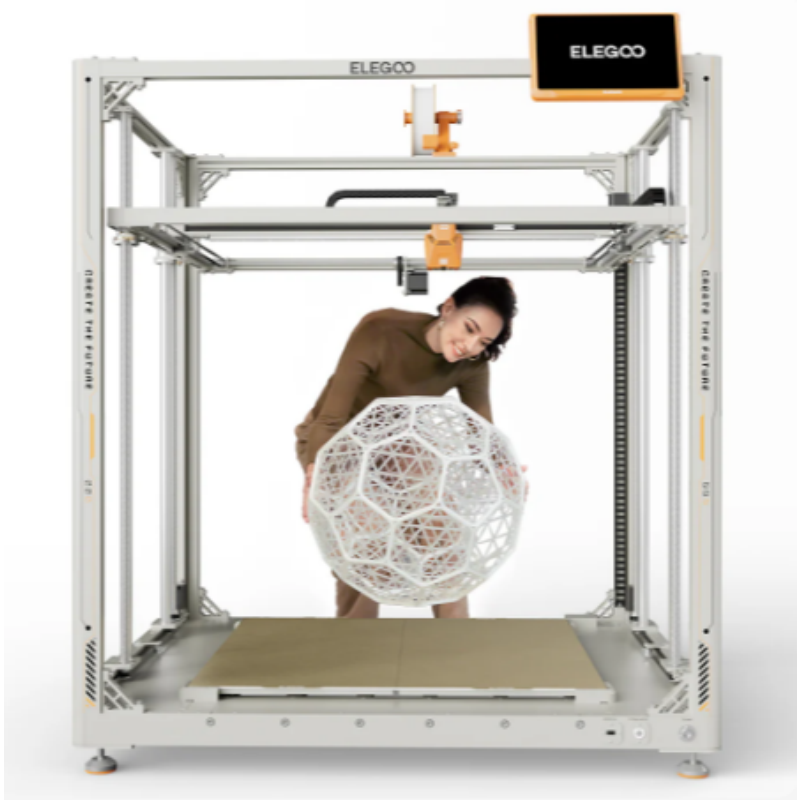

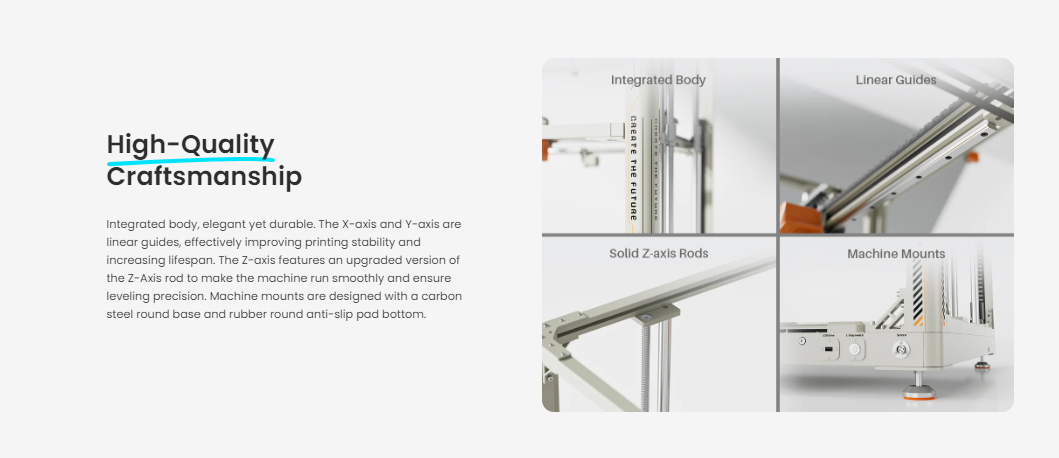

The ELEGOO OrangeStorm Giga is a gigantic FDM 3D printer with an 800 × 800 × 1000 mm build volume on a CNC-machined aluminum frame, supporting up to four simultaneous nozzles for batch production.

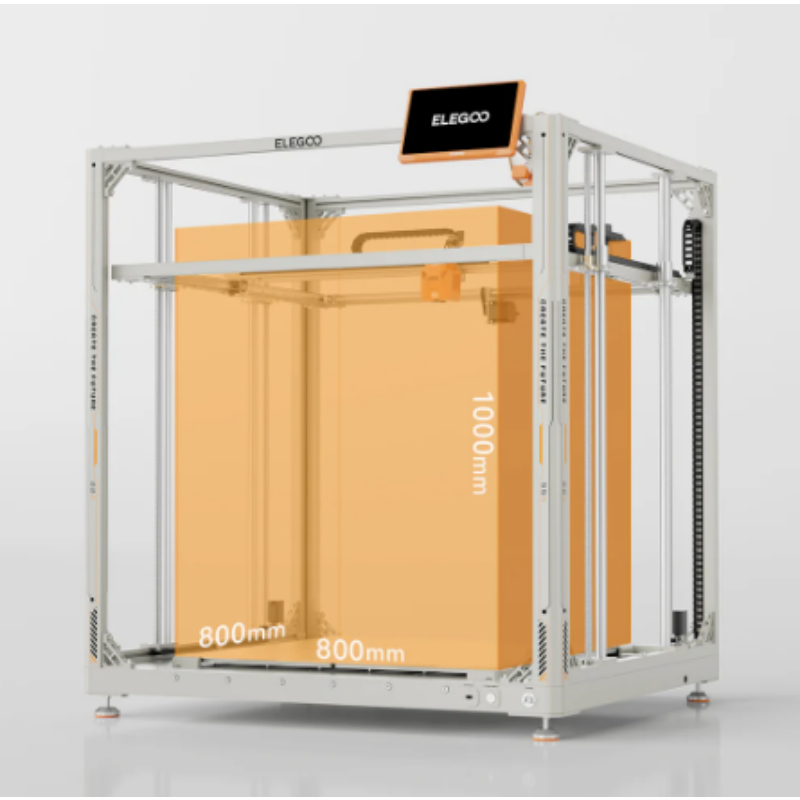

- Build volume: 800 × 800 × 1000 mm; platform 820 × 820 mm (4 independent 410 × 410 mm PEI plates)

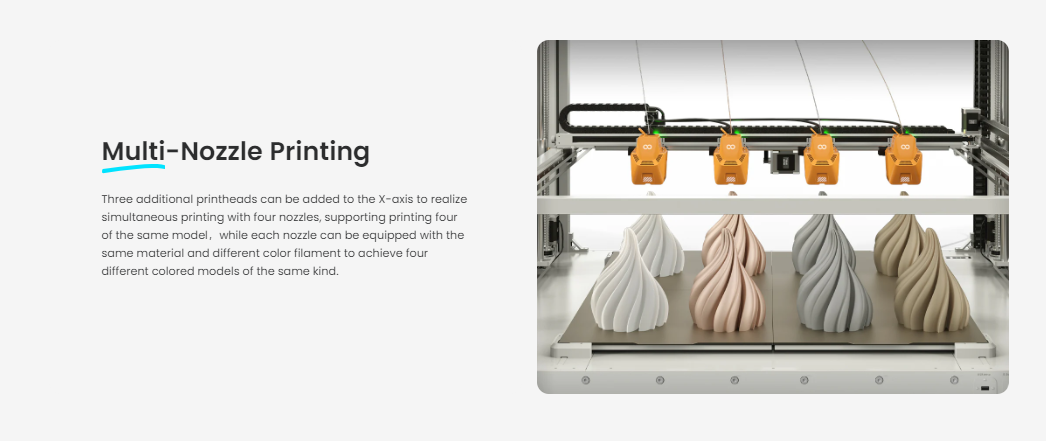

- Up to 4 simultaneous nozzles (3 add-on printheads on the X axis)

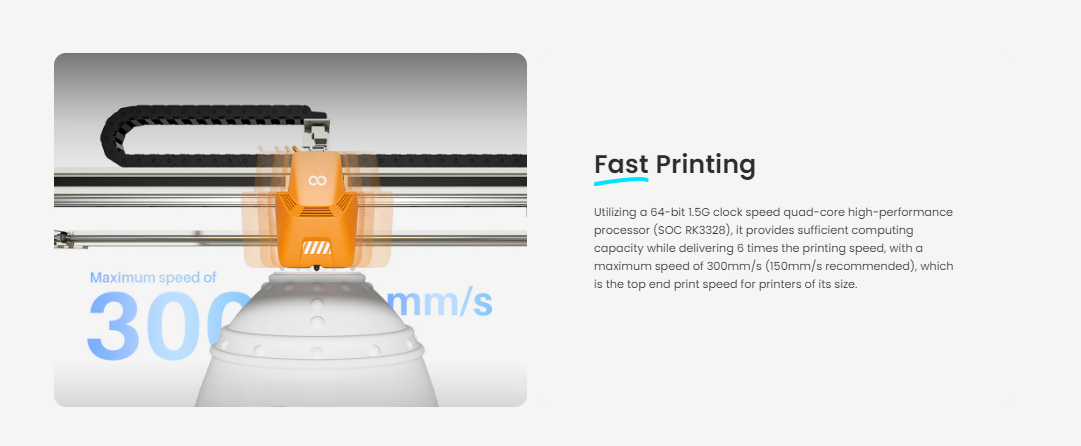

- Max tool head speed 300 mm/s (150 mm/s recommended); max acceleration 5,000 mm/s²

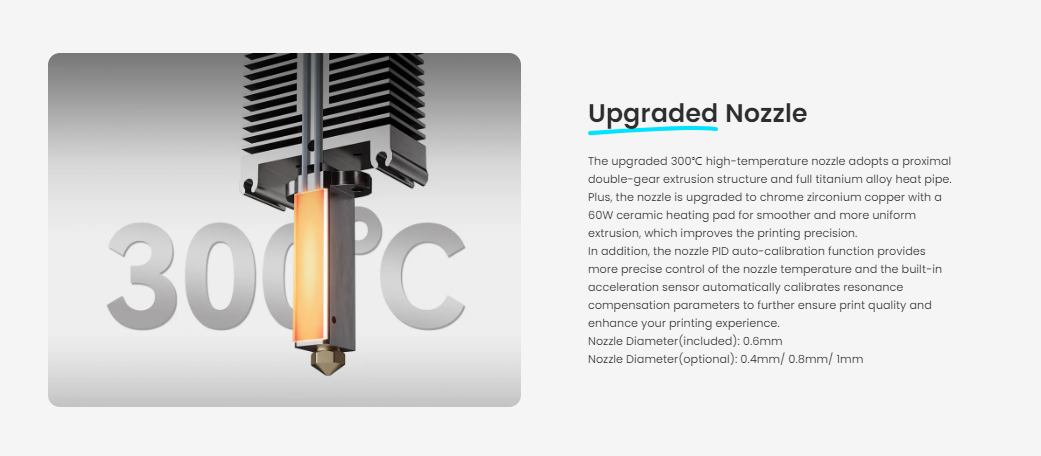

- Max nozzle temp 300 °C; max bed temp 100 °C (at 25 °C ambient)

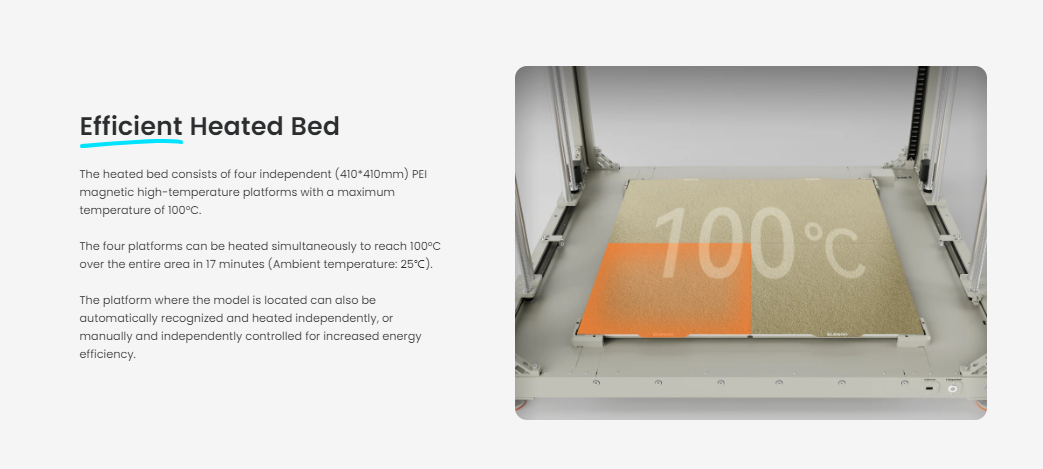

- 4-zone heated bed reaches full temperature in 17 minutes; zones heat independently
- Nozzle diameter: 0.6 mm included; optional 0.4 / 0.8 / 1.0 mm
- Filaments: PLA / PETG / TPU
- 64-bit quad-core RK3328 processor at 1.5 GHz

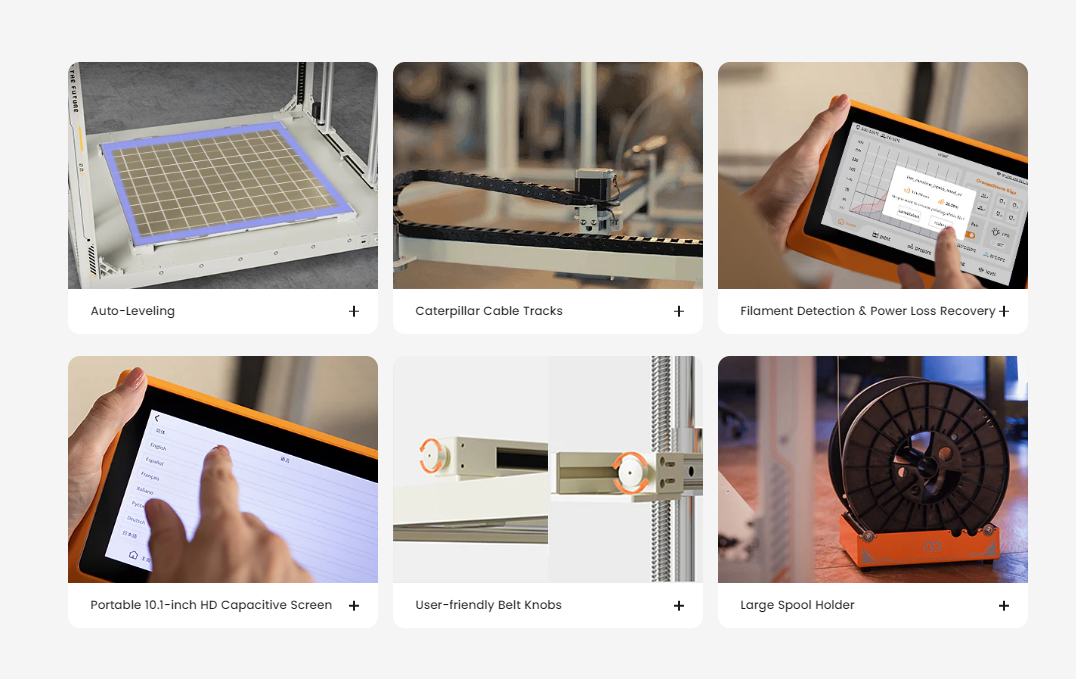

- Non-contact auto leveling with 100-point (10 × 10) sampling
- 10.1-inch detachable touchscreen; USB / LAN / Wi-Fi; STL / OBJ files

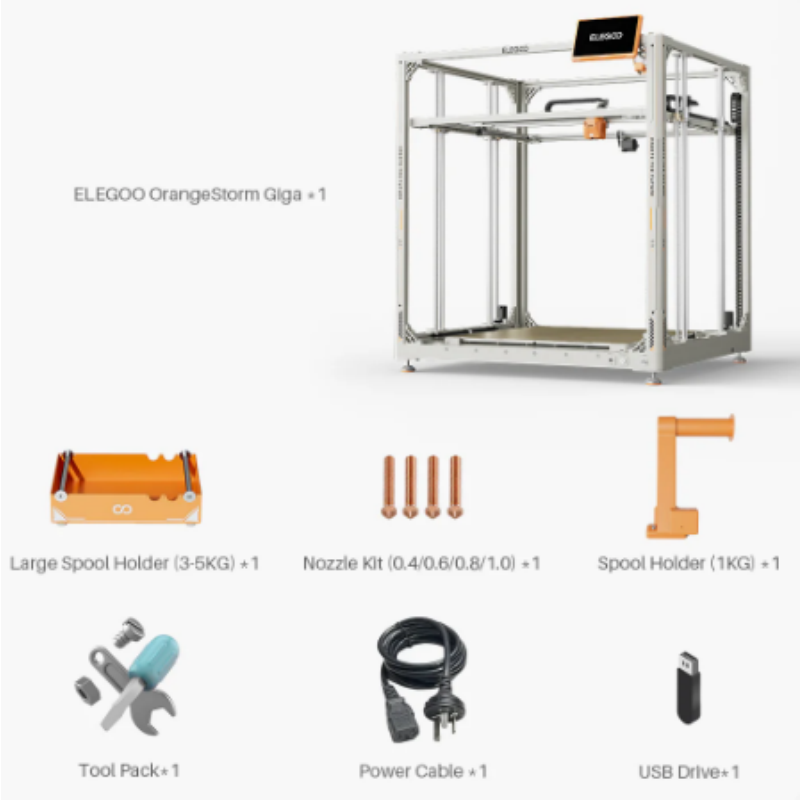

- Filament breakage detection and power-loss recovery; 5 kg spool holder
- Machine size 1,224 × 1,164 × 1,425 mm; net weight 104 kg; power 1,530 W single head (+100 W per extra head)

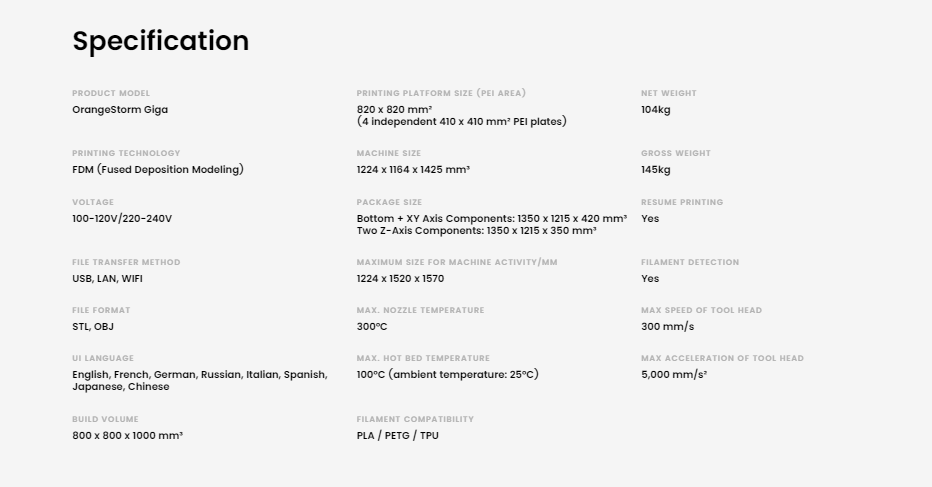

Specifications
| Build Volume | 800 × 800 × 1000 mm |
| Technology | FDM |
| Print Speed | Max 300 mm/s |
| Nozzle | Max temperature 300 °C |
| Max Acceleration | 5,000 mm/s² |
| Filament Compatibility | PLA / PETG / TPU |
| Connectivity | Wi-Fi, USB, LAN |
| Machine Dimensions | 1,224 × 1,164 × 1,425 mm |
| Machine Weight | 104 kg (net) |
| Voltage | 100-120 VAC/220-240 VAC, 50/60 Hz 1,530 W (single head; +100 W per additional head) |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
