Description

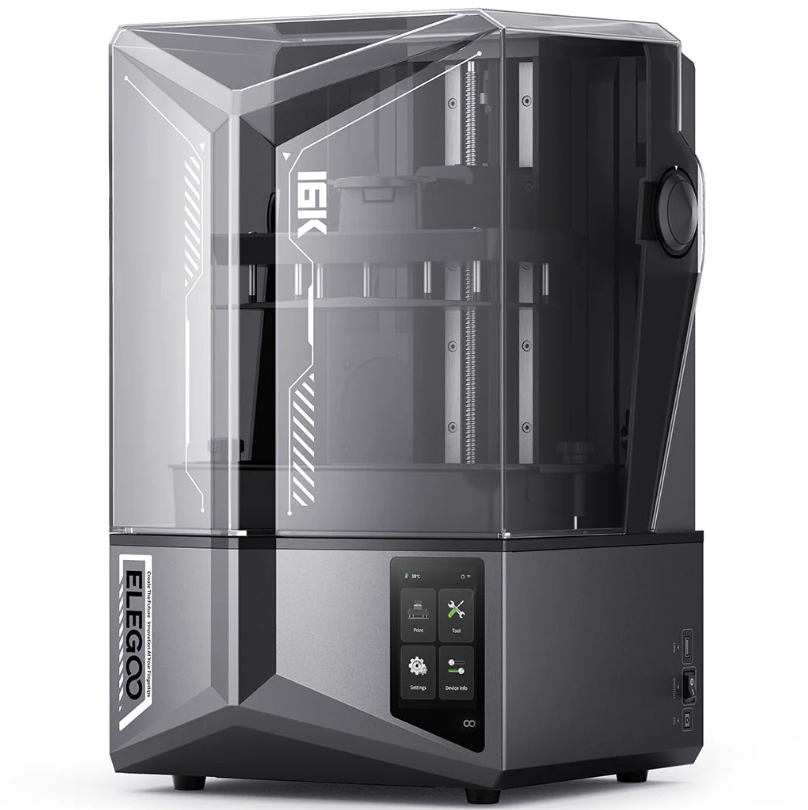

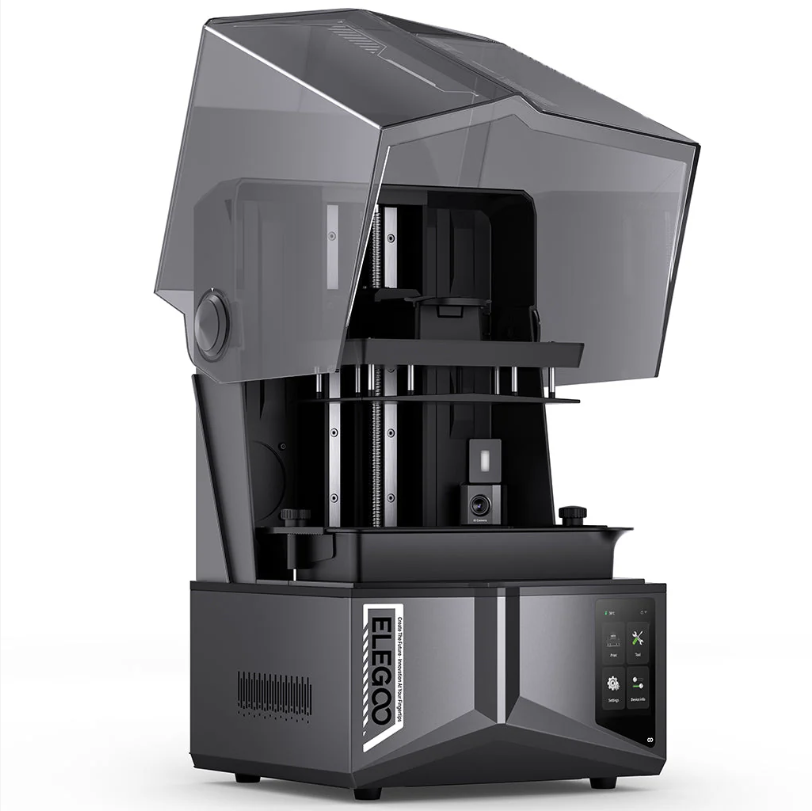

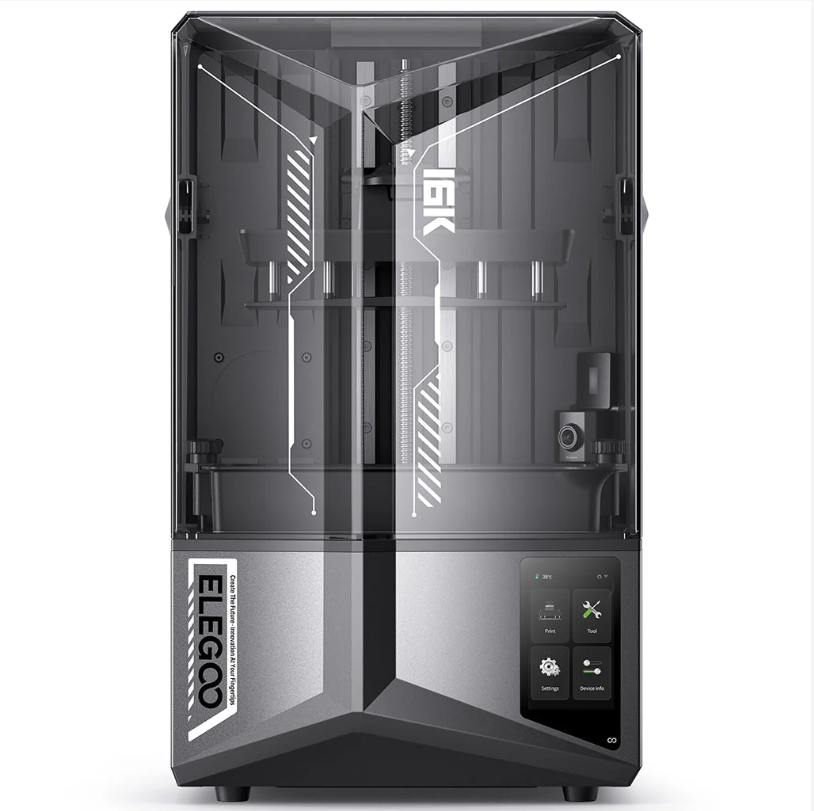

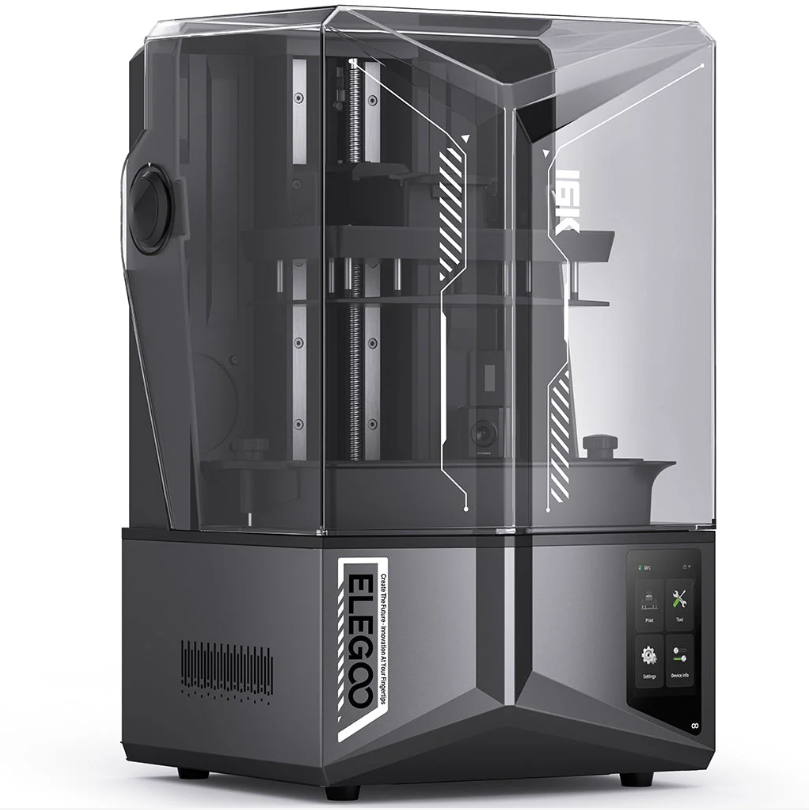

The ELEGOO Saturn 4 Ultra 16K prints at 16K resolution with a 14 × 19 μm XY detail, tilt release technology for fast peeling and smart tank heating that keeps resin at 30 °C for stable viscosity.
- Build volume: 211.68 × 118.37 × 220 mm

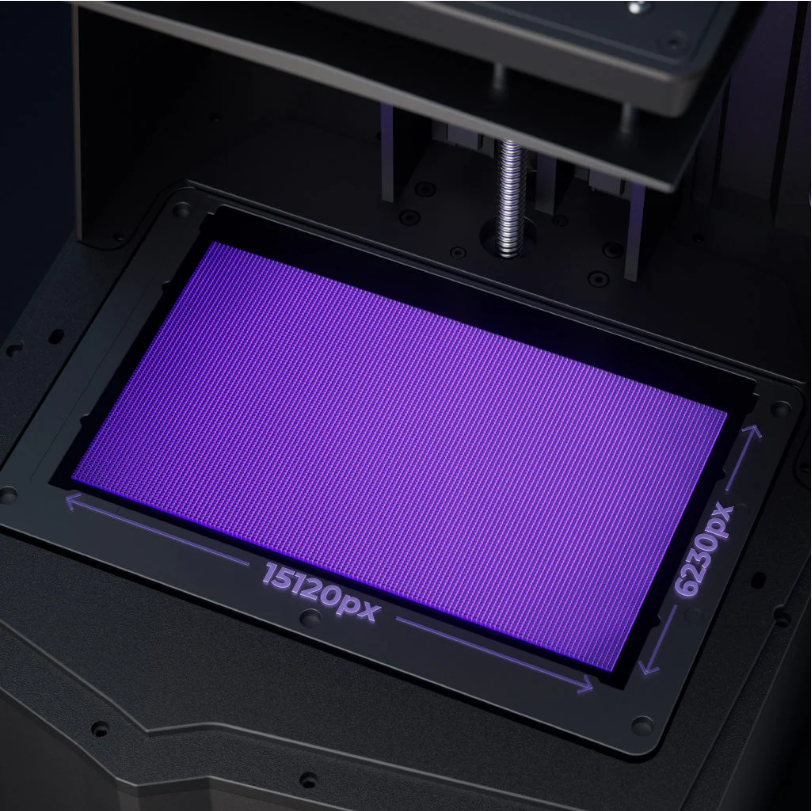

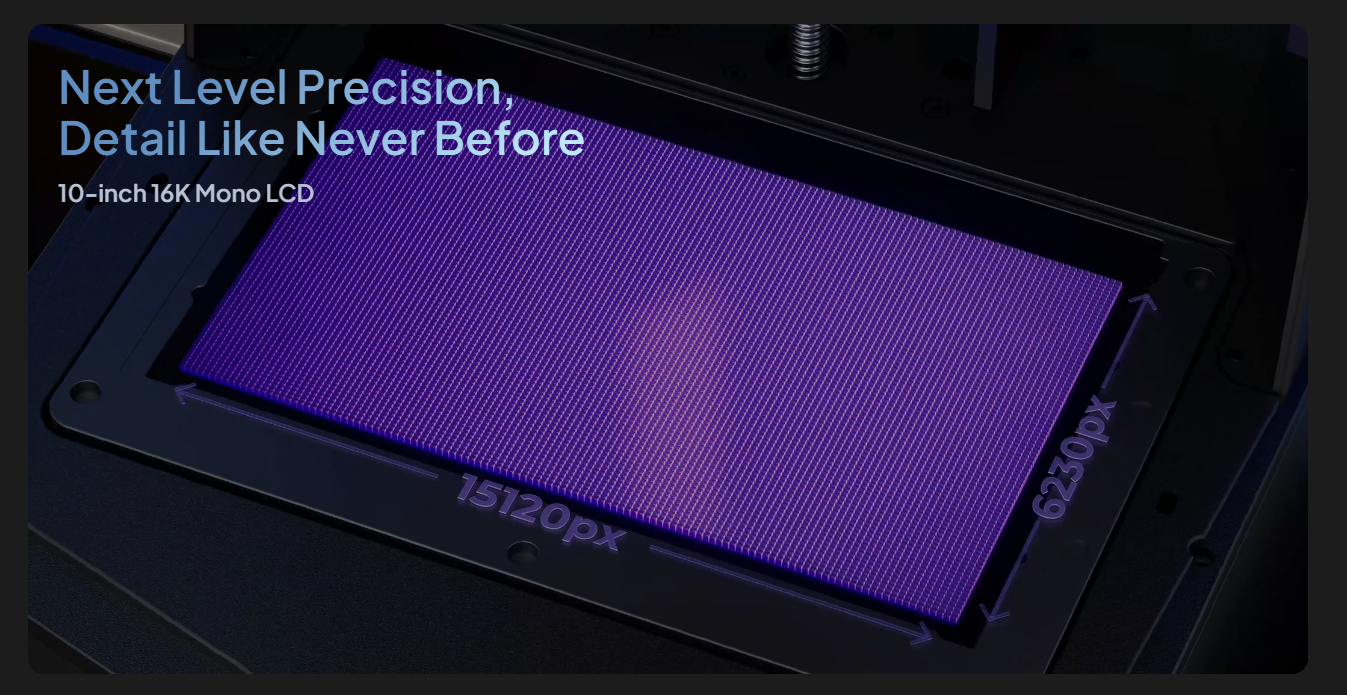

- 10-inch 16K mono LCD, resolution 15,120 × 6,230; XY resolution 14 × 19 μm
- Max print speed 150 mm/h; 5.5 s per layer in fast mode — 2x faster than Saturn 3 Ultra
- Tilt release technology for fast peeling

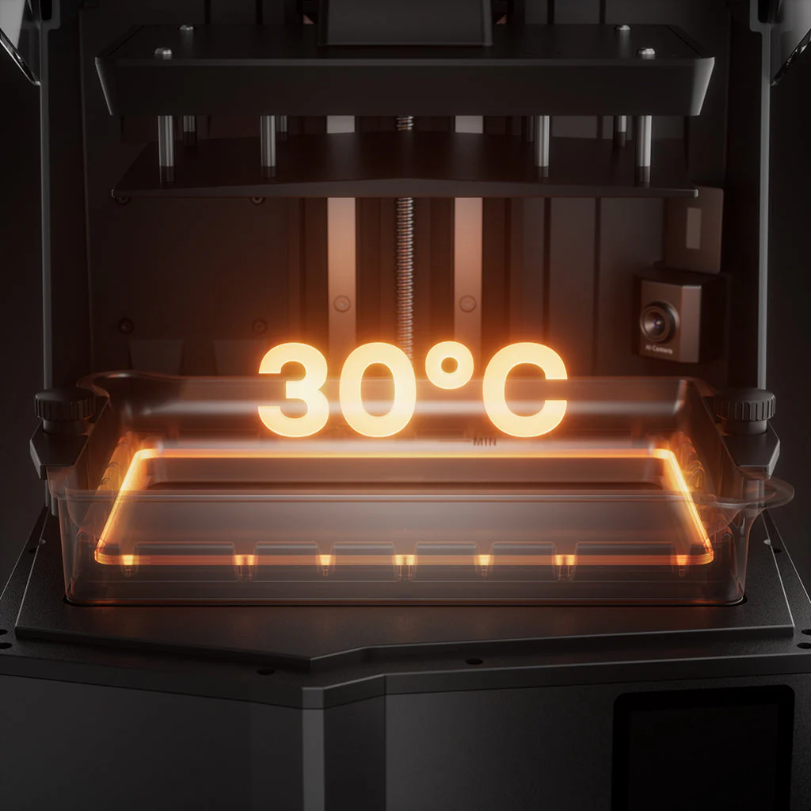

- Smart tank heating holds resin at 30 °C with auto heating and temperature detection

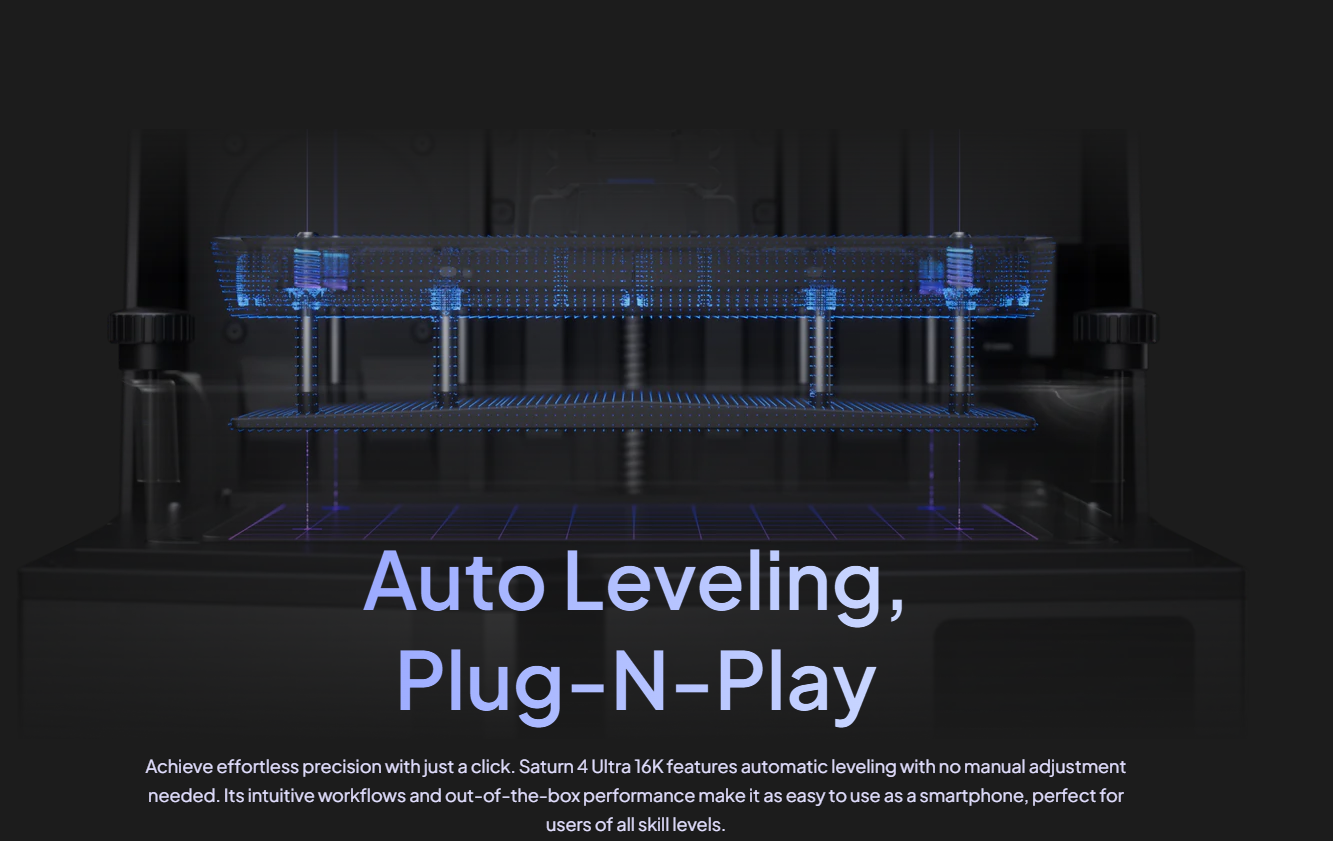

- Auto leveling, plug-and-play, no manual adjustment
- AI camera with built-in light: empty plate detection, warp detection, real-time monitoring, time-lapse
- Smart mechanical sensor: residue detection, resin shortage alarm, leveling failure alarm
- Overheating protection (pauses above 80 °C LED temp); power loss recovery; one-tap self-test
- Wi-Fi cluster printing (dual-band); 9H tempered glass protector; PFA release film
Specifications
| Build Volume | 211.68 × 118.37 × 220 mm |
| Technology | LCD 16K (MSLA) |
| Layer Thickness | 0.01-0.2 mm |
| Print Speed | Max 150 mm/h (Fast/Slow modes) |
| Light Source | COB light source + Fresnel collimating lens (405 nm) |
| Connectivity | USB, built-in Wi-Fi |
| Machine Dimensions | 327.4 × 329.2 × 548 mm |
| Machine Weight | 16.1 kg (net) |
| Voltage | 100-240 VAC, 50/60 Hz, 24V 6A |
| XY Resolution | 14 × 19 μm (15120 × 6230) |
| Z-axis Accuracy | 0.02 mm |
| System | EL3D-4.0 |
NOST 3D supplies ELEGOO equipment as an authorized distributor. Request a quote for wholesale pricing, bulk orders and current lead times — our team replies within one business day.
