Description

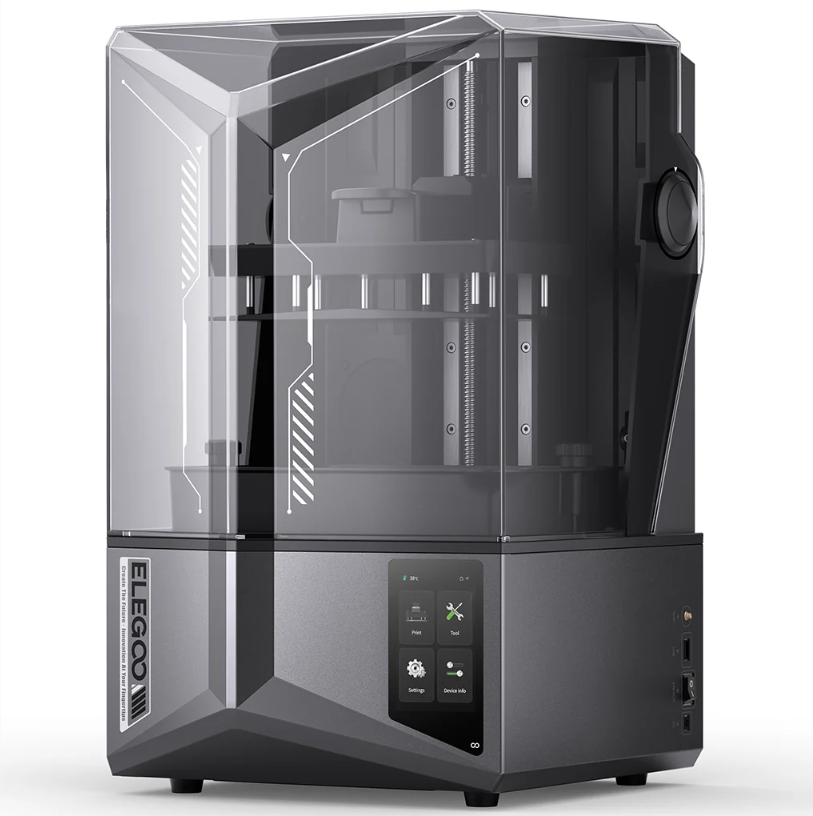

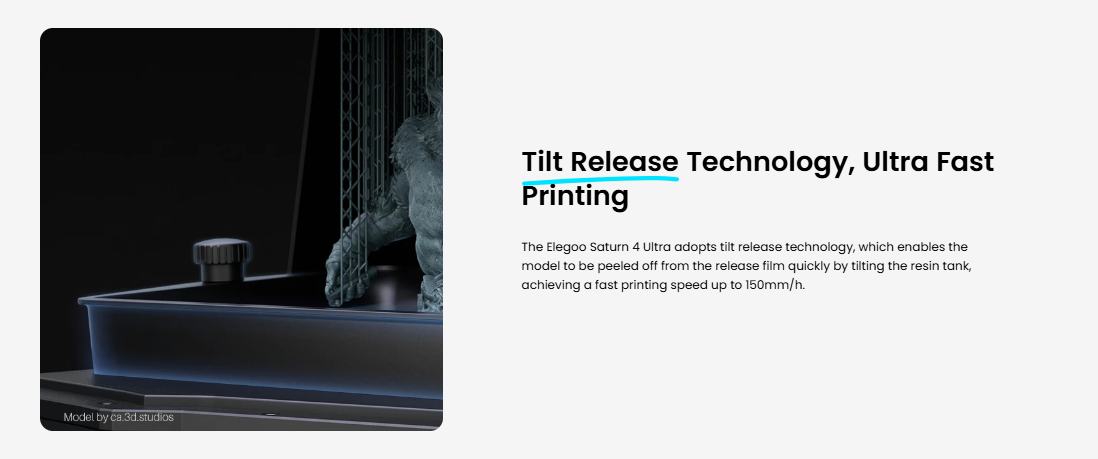

The ELEGOO Saturn 4 Ultra uses innovative tilt release technology for fast peeling at up to 150 mm/h, with an AI camera and intelligent mechanical sensors monitoring every print.
- Build volume: 218.88 × 122.88 × 220 mm
- 10-inch 12K mono LCD, resolution 11,520 × 5,120; XY resolution 19 × 24 μm
- Layer thickness 0.01–0.2 mm; Z-axis accuracy 0.02 mm
- Max print speed 150 mm/h with tilt release technology

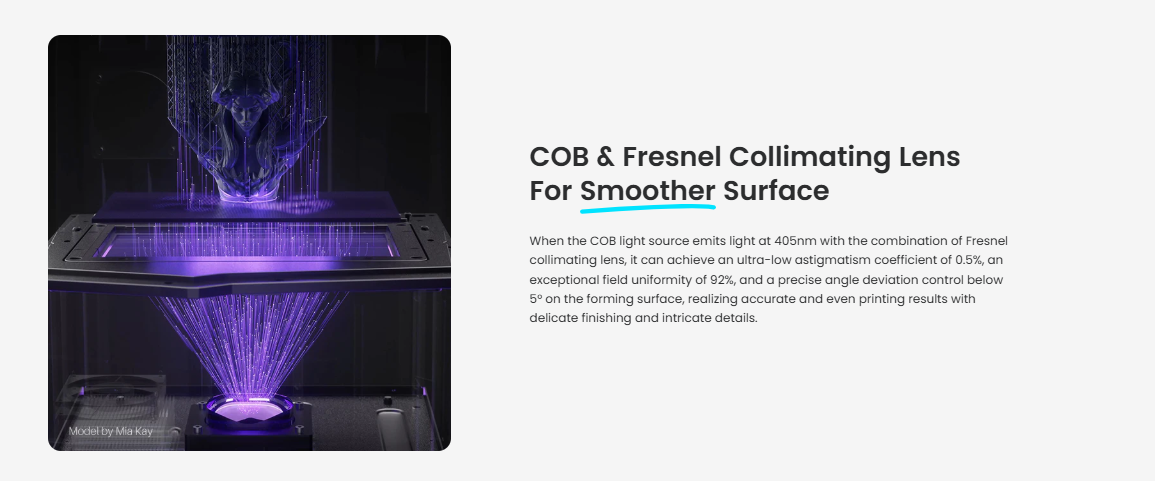

- COB + Fresnel collimating lens, 405 nm wavelength

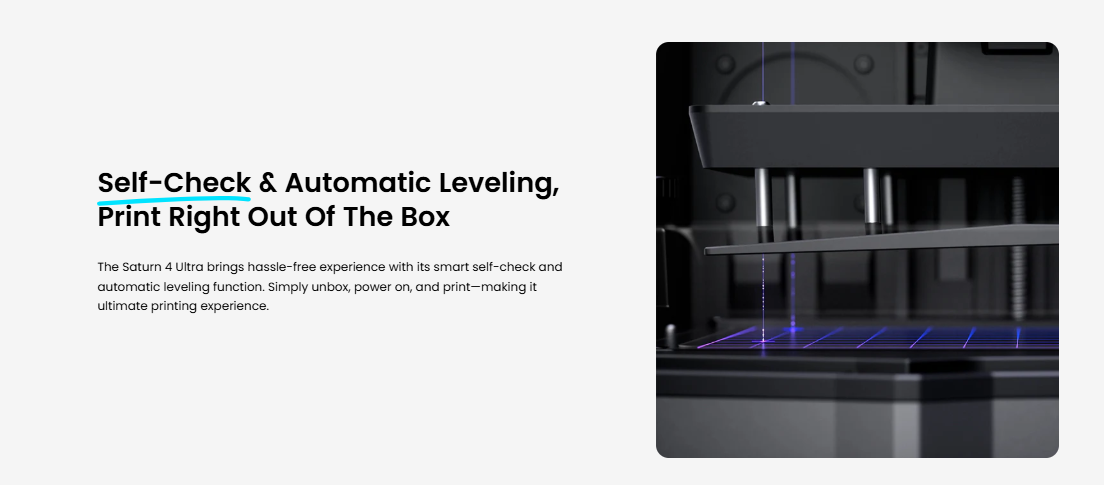

- One-click auto leveling with intelligent mechanical sensor

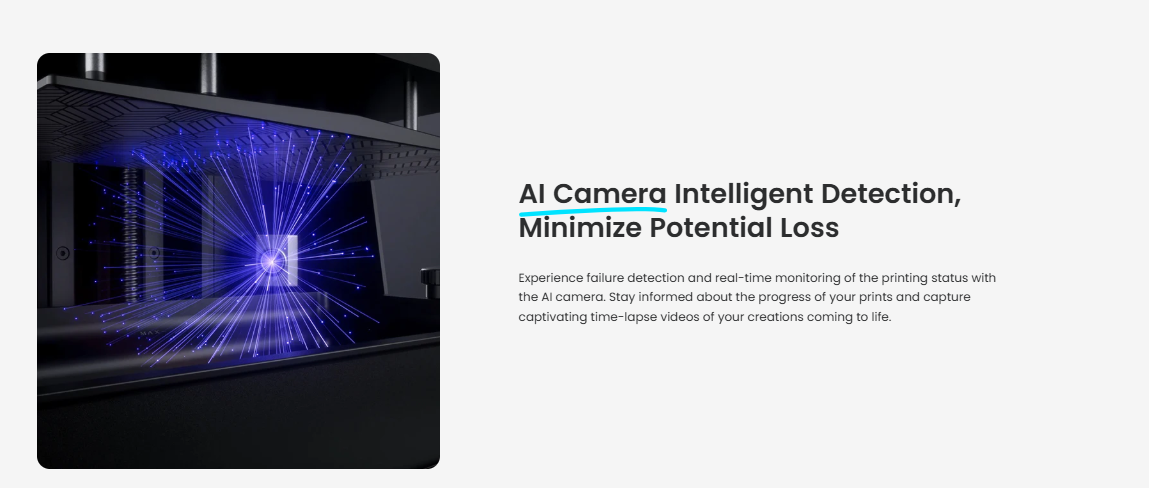

- AI camera: empty build plate detection, warp detection, real-time monitoring, time-lapse

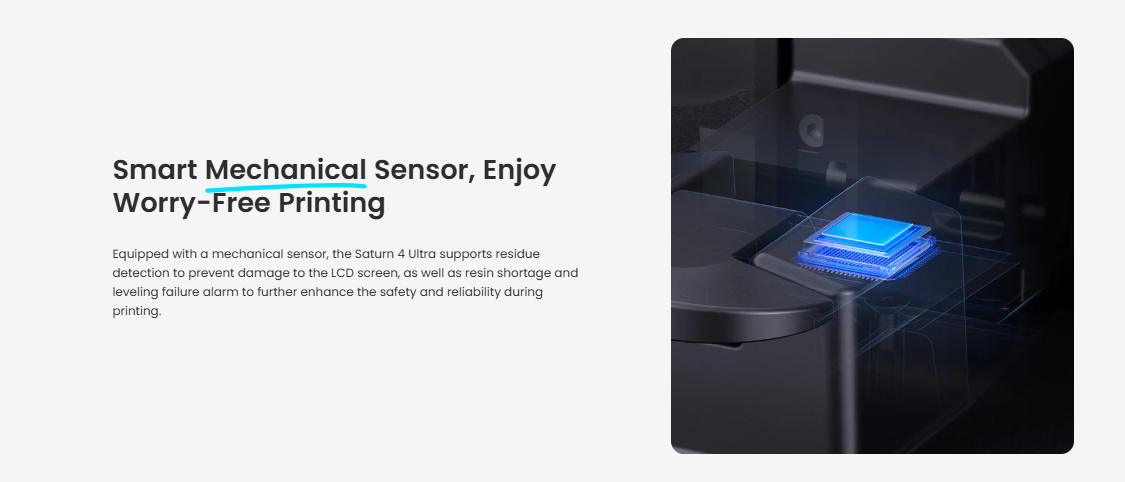

- Smart alarms: resin shortage, residue detection, leveling failure
- Power loss resume printing; 4-inch capacitive touch screen; Wi-Fi + USB
- EL3D-4.0 system; 9H tempered glass protector; PFA release film
Specifications
| Build Volume | 218.88 × 122.88 × 220 mm |
| Technology | LCD 12K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 150 mm/h |
| Light Source | COB light source + Fresnel collimating lens (405 nm) |
| Connectivity | Wi-Fi, USB |
| Machine Dimensions | 327.4 × 329.2 × 548 mm |
| Machine Weight | 14.5 kg (net) |
| Voltage | 100-240V 50/60 Hz 24V 6A |
| XY Resolution | 19 × 24 μm (11520 × 5120) |
| System | EL3D-4.0 |
