Description

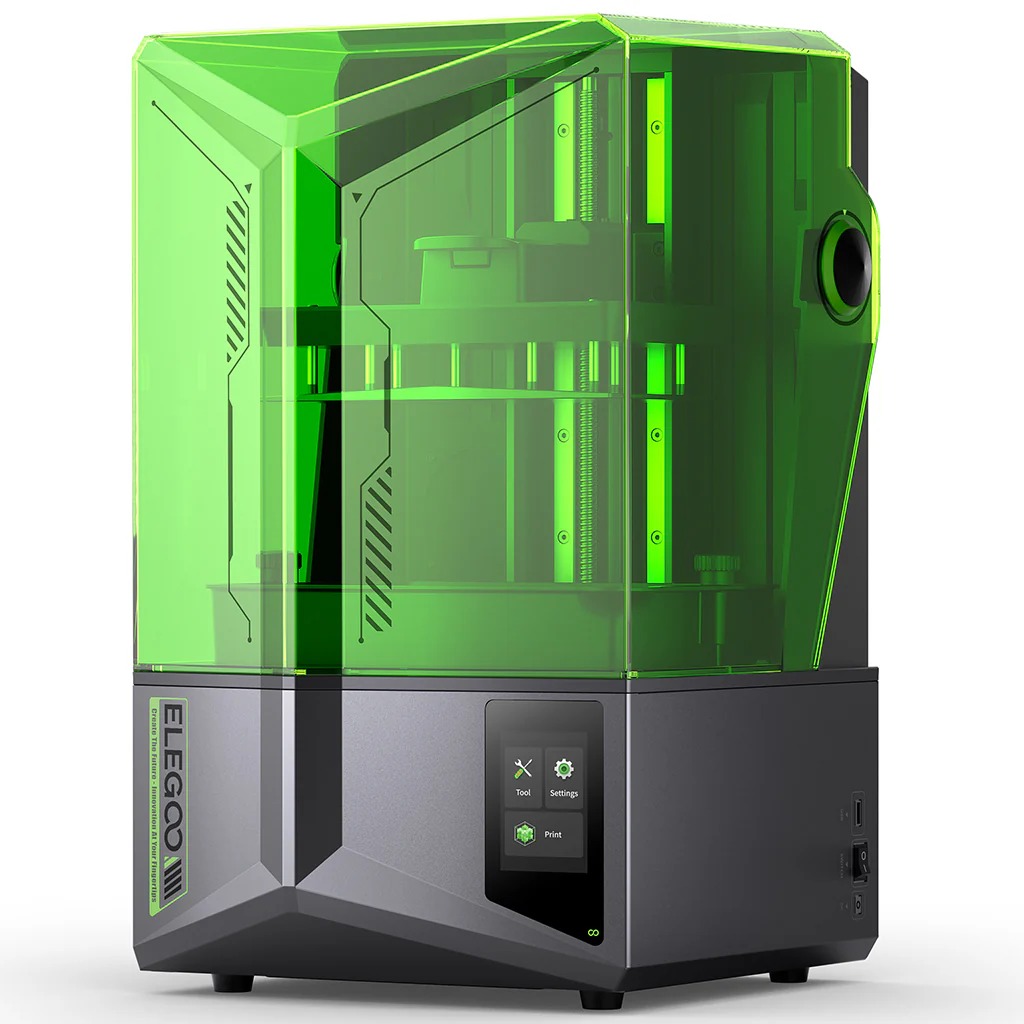

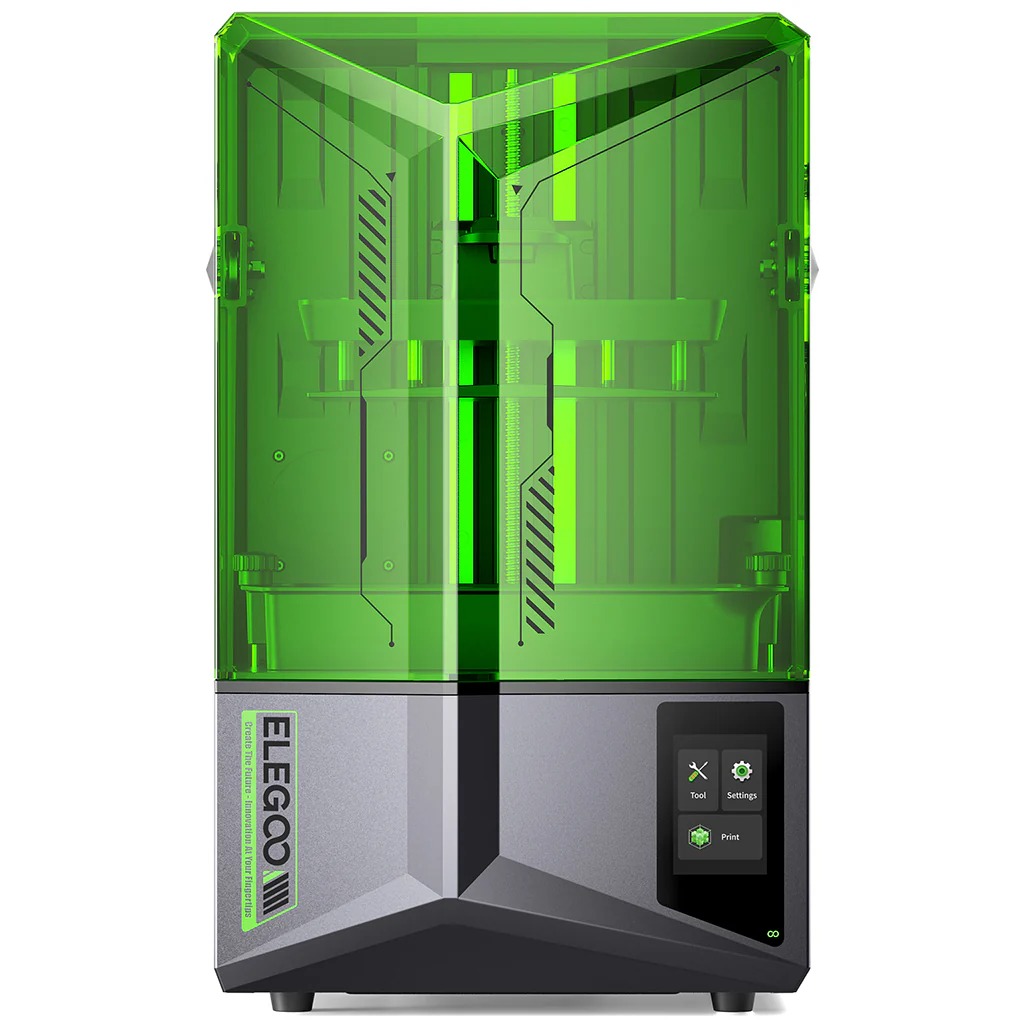

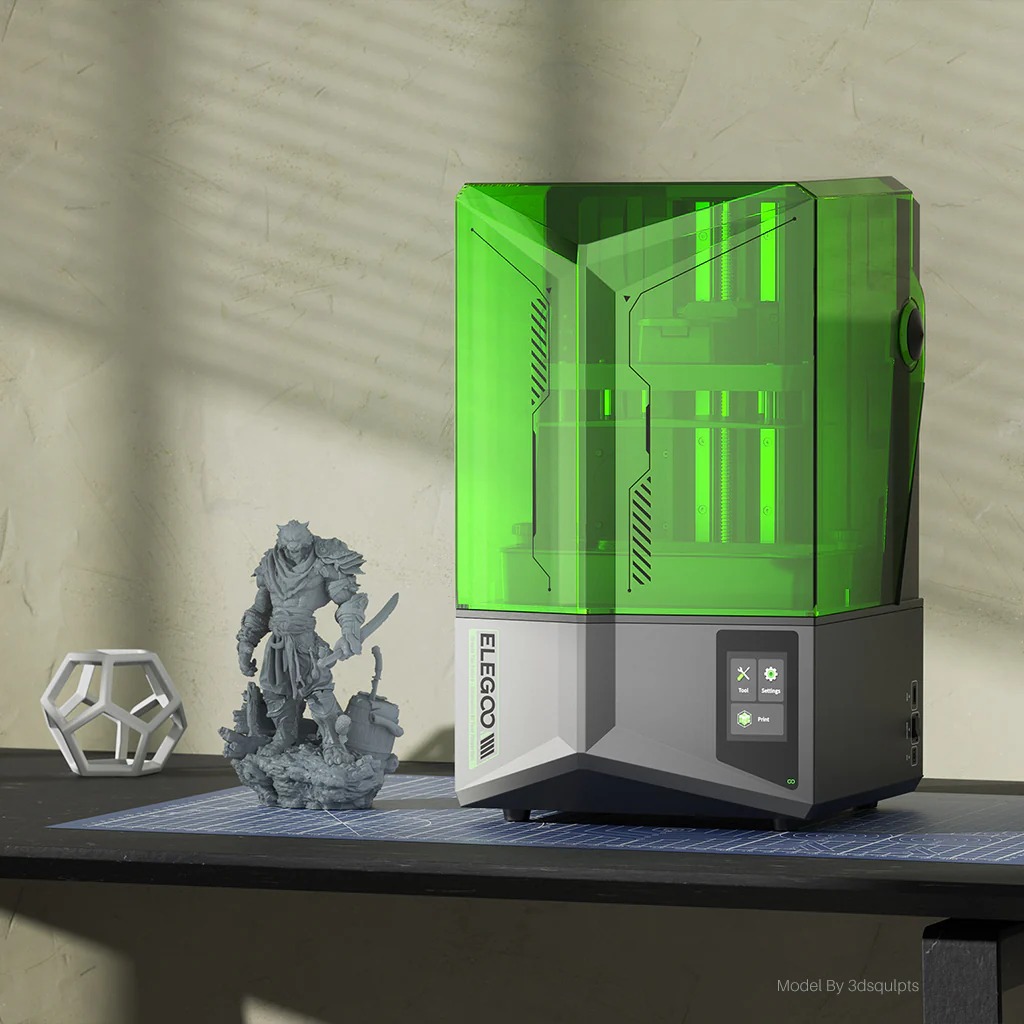

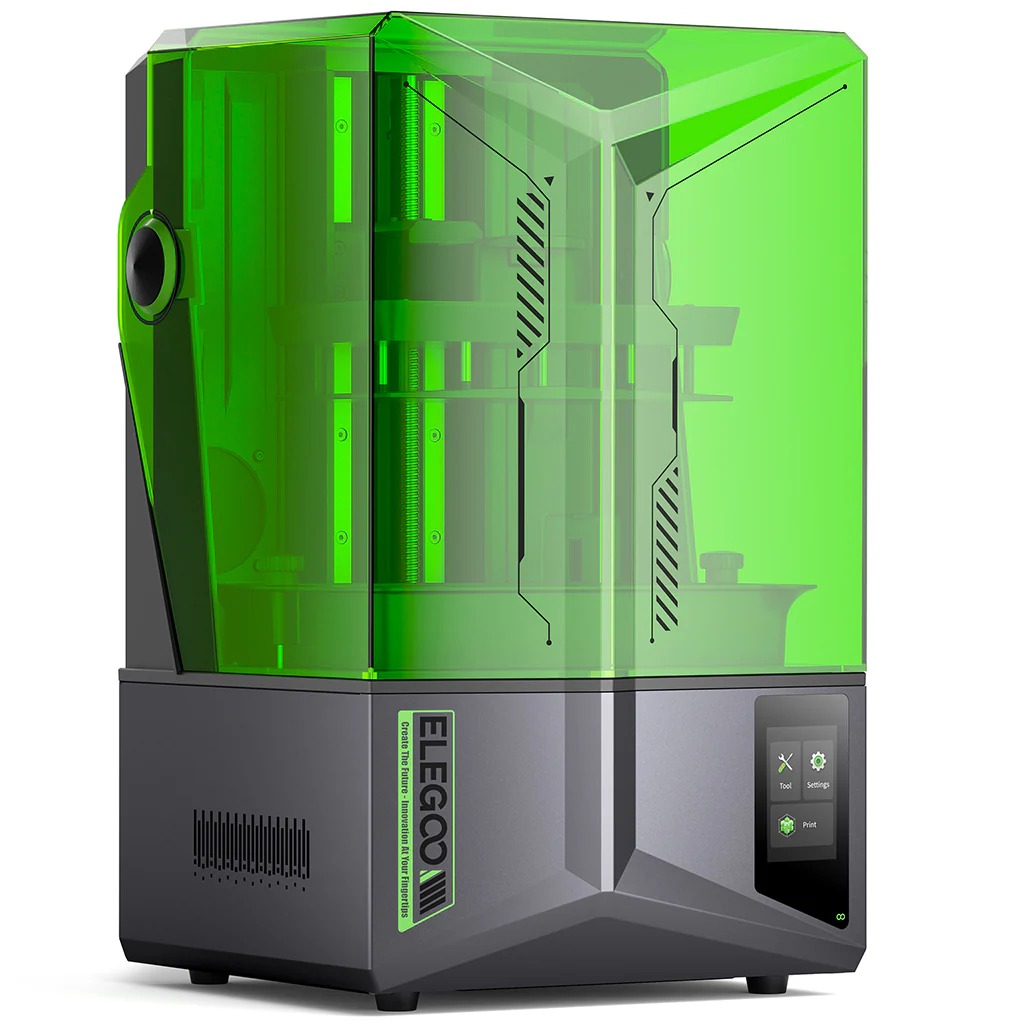

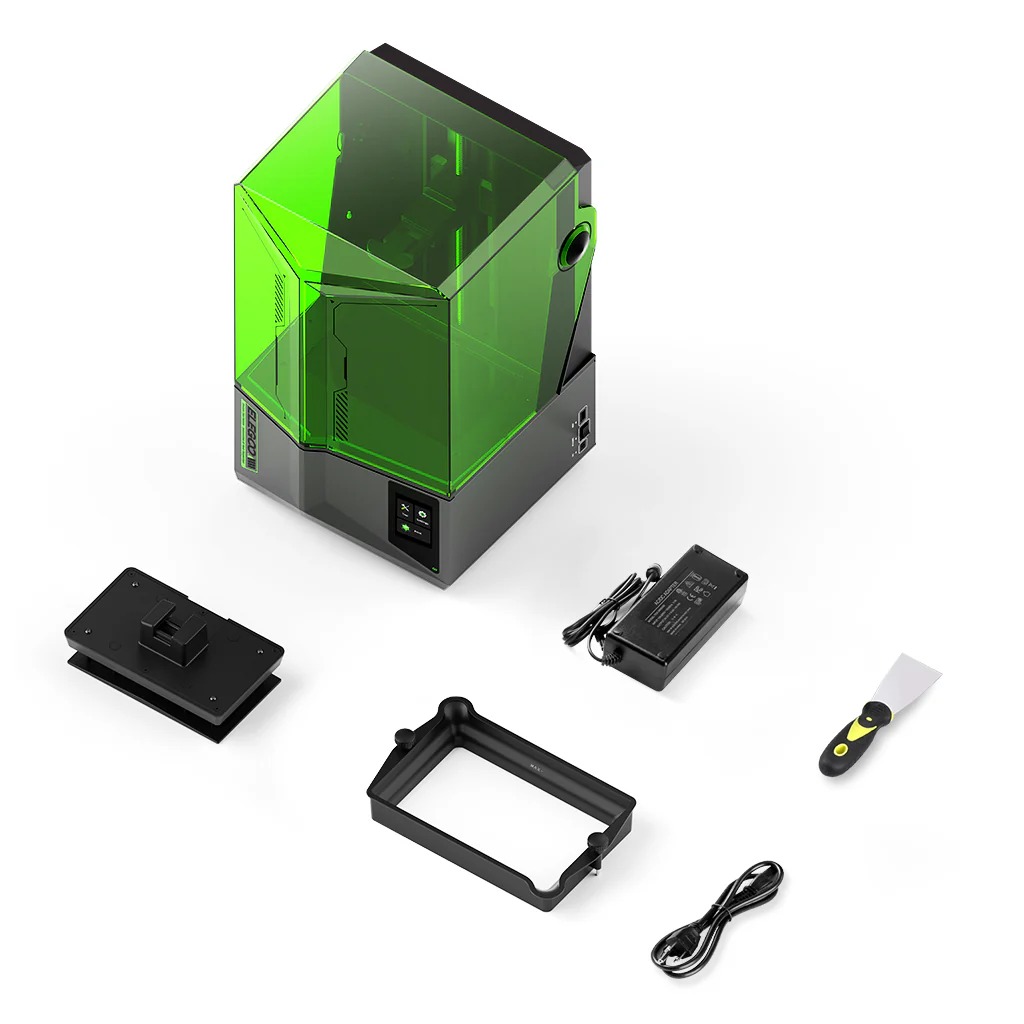

The ELEGOO Saturn 4 is a 10-inch 12K resin 3D printer with one-click automatic leveling and an intelligent mechanical sensor that watches for residue, resin shortage and leveling failure.
- Build volume: 218.88 × 122.88 × 220 mm

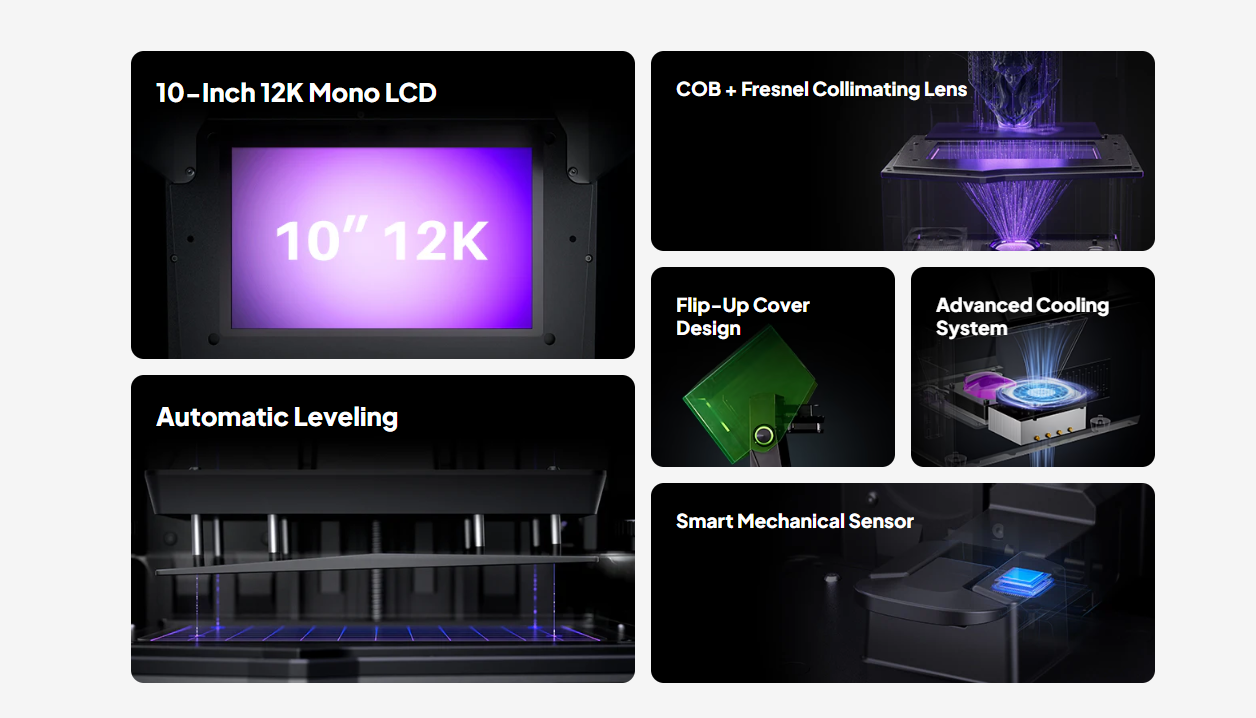

- 10-inch 12K mono LCD, resolution 11,520 × 5,120; XY resolution 19 × 24 μm
- Layer thickness 0.01–0.2 mm; Z-axis accuracy 0.02 mm
- Max print speed 70 mm/h
- COB + Fresnel collimating light source, 405 nm (0.5% astigmatism, 92% field uniformity)

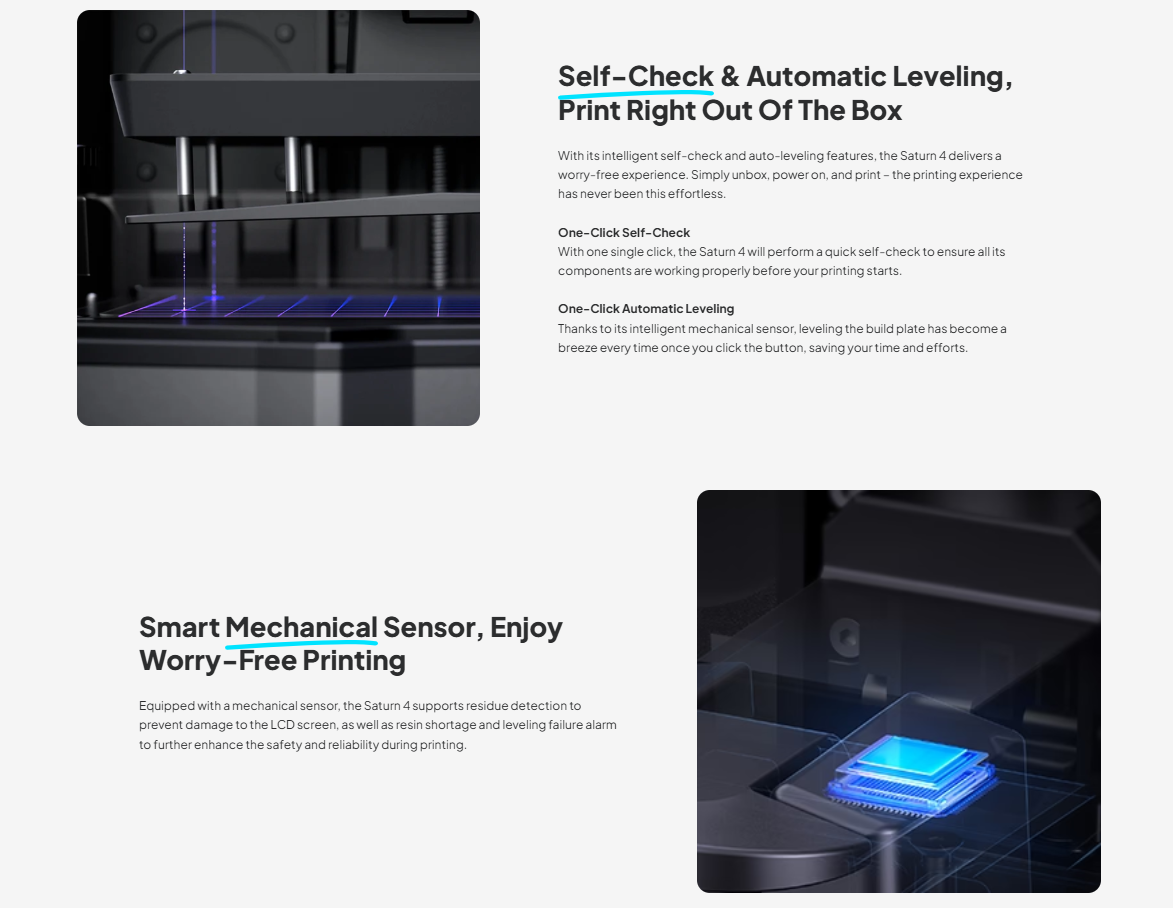

- One-click automatic leveling and one-click self-check
- Smart mechanical sensor: residue detection, resin shortage alarm, leveling failure alarm

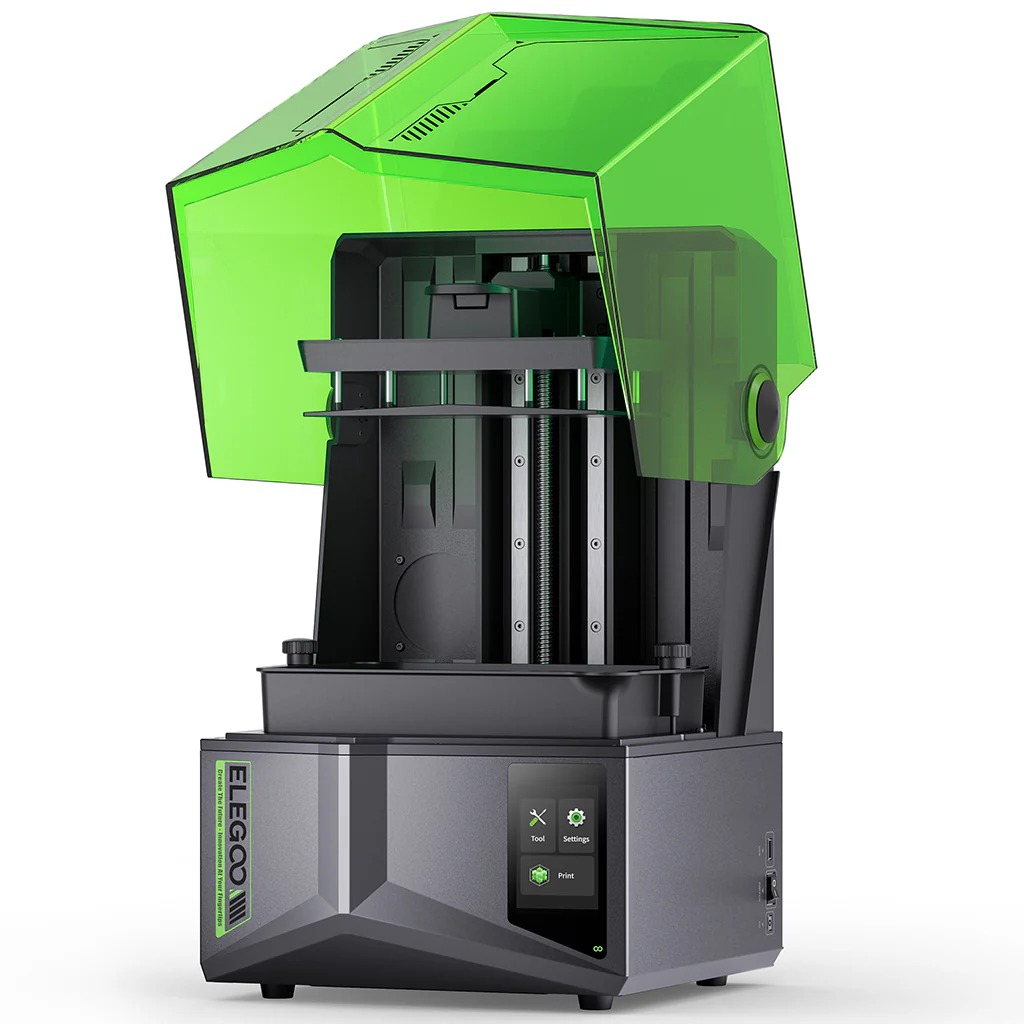

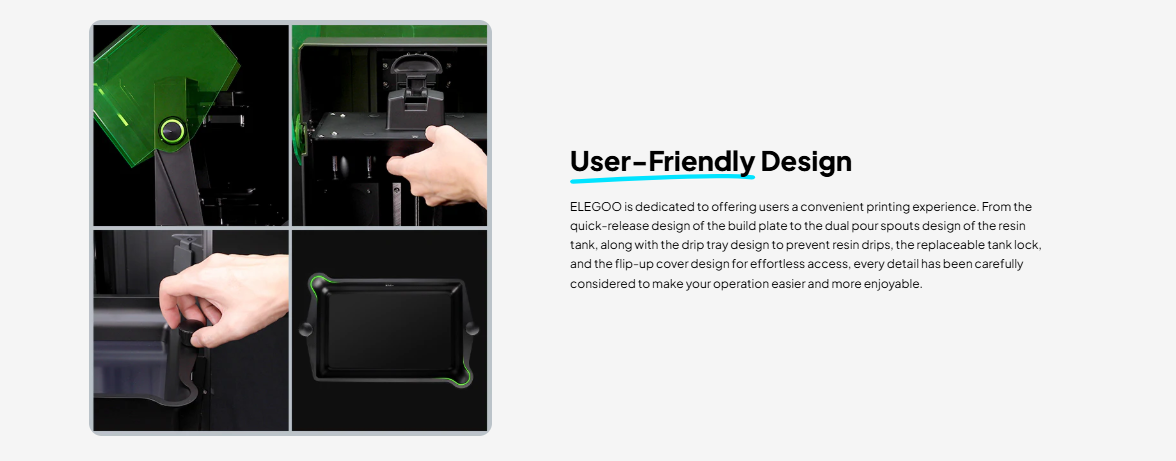

- Flip-up cover; 9H tempered glass screen protector; PFA release film
- Laser-engraved build plate; Mars Mate air purifier compatible
- 3.5-inch resistive touch screen, USB

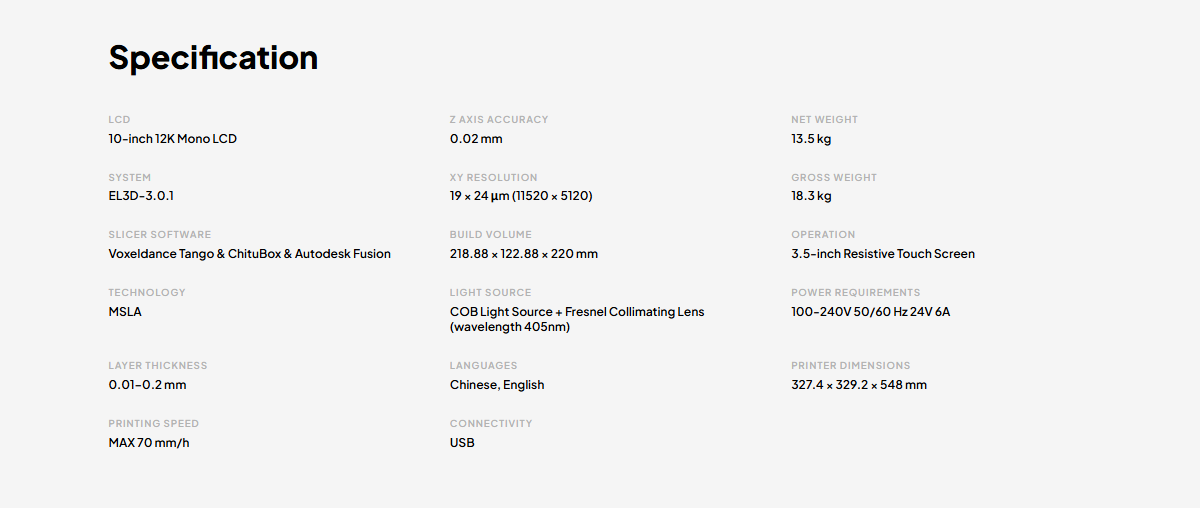

Specifications
| Build Volume | 218.88 × 122.88 × 220 mm |
| Technology | LCD 12K (MSLA) |
| Layer Thickness | 0.01–0.2 mm |
| Print Speed | Max 70 mm/h |
| Light Source | COB light source + Fresnel collimating lens (405 nm) |
| Connectivity | USB |
| Machine Dimensions | 327.4 × 329.2 × 548 mm |
| Machine Weight | 13.5 kg (net) |
| Voltage | 100-240V 50/60 Hz 24V 6A |
| XY Resolution | 19 × 24 μm (11520 × 5120) |
| System | EL3D-3.0.1 |
