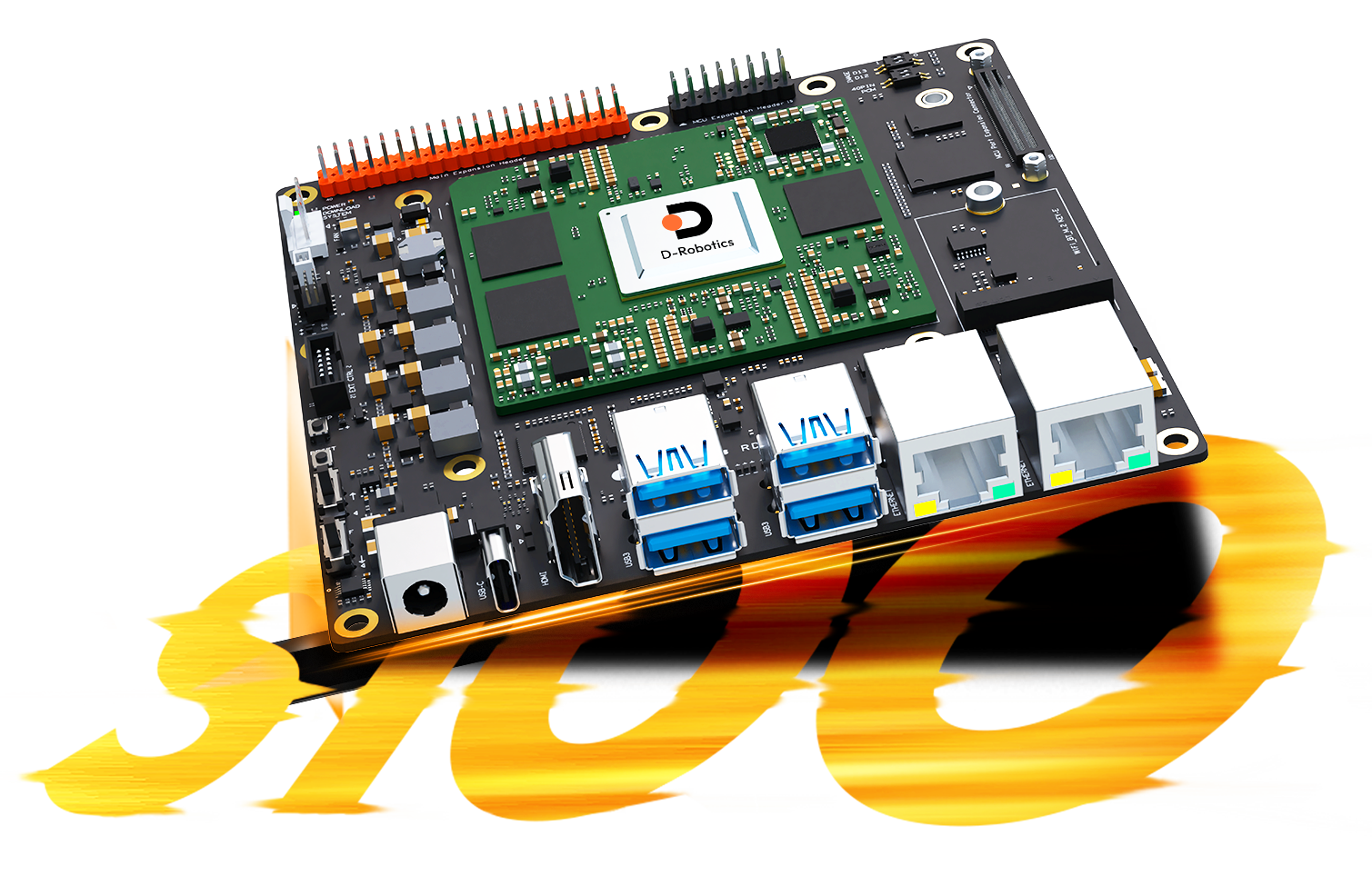

RDK S100 Developer Kit (12GB)

D-Robotics

RDK S100 Developer Kit (12GB)

RDK S100 algorithm-control integrated developer kit pairing 80 TOPS Nash-architecture BPU compute with an Arm Cortex-R52+ MCU domain for embodied-AI research and prototyping (S100P variant: 128 TOPS, 24 GB). Supplied by NOST as your China sourcing partner — available for bulk inquiry.

MOQ: 10 units

Specifications (indicative)
AI80 TOPS INT8 BPU (Nash architecture); S100P variant: 128 TOPS
CPU6× Arm Cortex-A78AE @ 1.5 GHz (S100P: 2.0 GHz)
MCU4× Arm Cortex-R52+ @ 1.2 GHz
RAM12 GB LPDDR5 (S100P: 24 GB)
Storage64 GB eMMC + M.2 Key M (PCIe 3.0)
I/OUSB 3.0 × 4, HDMI 2K@60fps, 2× GbE, M.2 Key E (Wi-Fi/BT), JTAG, 40-pin GPIO
SoftwareHardware-accelerated ROS 2 packages, real-time kernel support
Dimensions120 × 121 × 51 mm (with case)
Add to Quote
Category: Brand:

Description

RDK S100 algorithm-control integrated developer kit pairing 80 TOPS Nash-architecture BPU compute with an Arm Cortex-R52+ MCU domain for embodied-AI research and prototyping (S100P variant: 128 TOPS, 24 GB). Supplied by NOST as your China sourcing partner — available for bulk inquiry.

Specifications
CPU / AI SoC D-Robotics Sunrise S100 — 6x Arm Cortex-A78AE @ 1.5GHz + 4x Arm Cortex-R52+ MCU @ 1.2GHz + BPU Nash; 1x Arm Mali-G78AE GPU (100 GFLOPS)
AI Performance (TOPS) 80 TOPS @ INT8 (equivalent compute)
Memory 12GB LPDDR5 (96-bit)
Storage 64GB eMMC; 1x M.2 Key M (PCIe 3.0 x1)
Interface 2x Gigabit Ethernet RJ45, 4x USB 3.0, 1x USB 2.0 Type-C (flash & debug), HDMI 1.4 up to 2K@60, M.2 Key E (PCIe 3.0 x1 + UART) for Wi-Fi/Bluetooth, JTAG header, 40-pin main GPIO header, 16-pin MCU GPIO header, camera expansion header, MCU port expansion header
OS Support RDK OS (Linux, real-time kernel support); RDK Studio tooling
Power 12-20V DC
Dimensions 120 x 121 x 51 mm (case included)
