Description

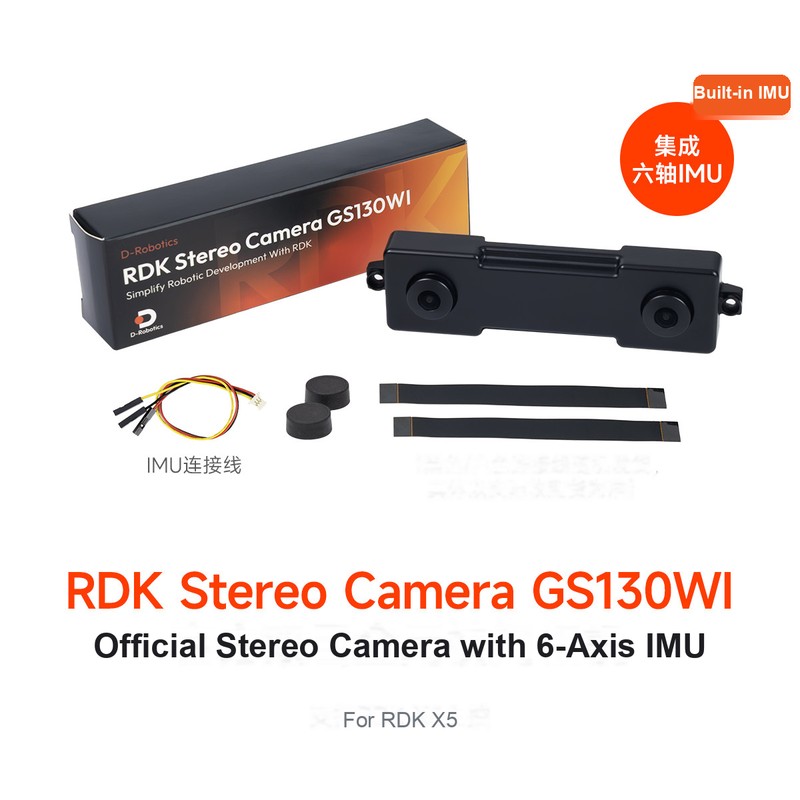

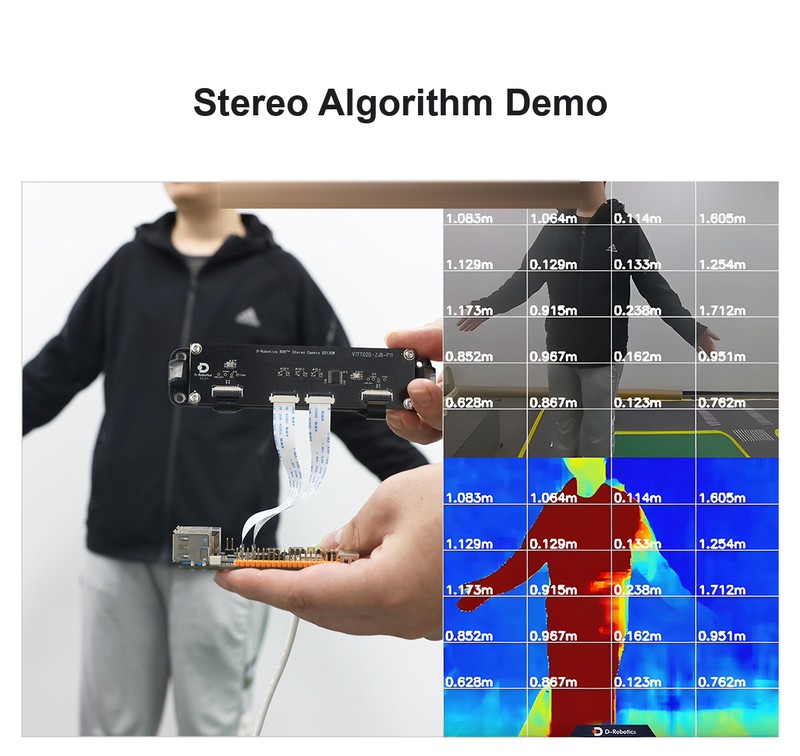

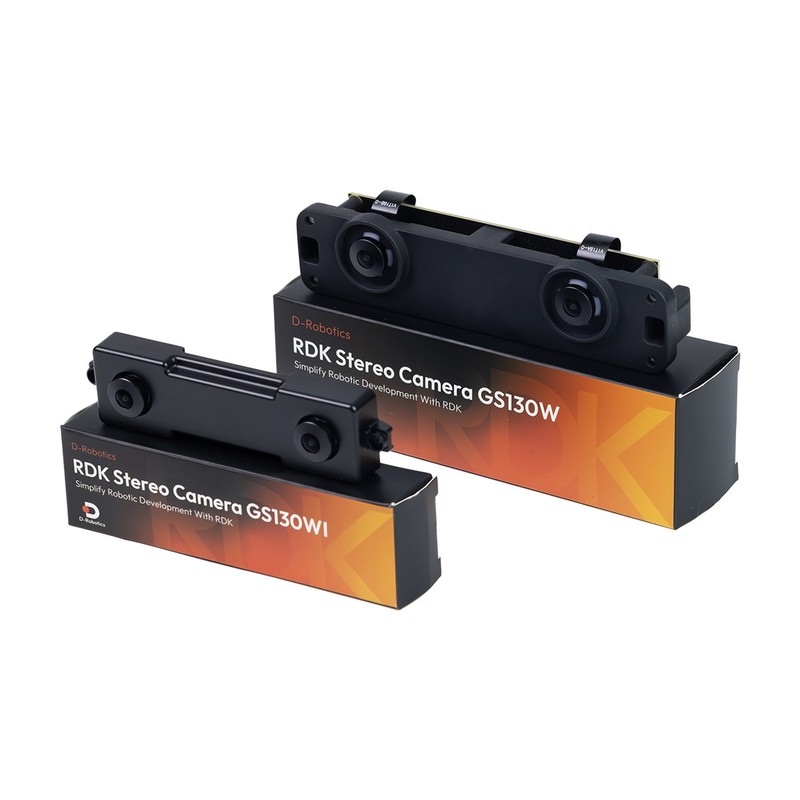

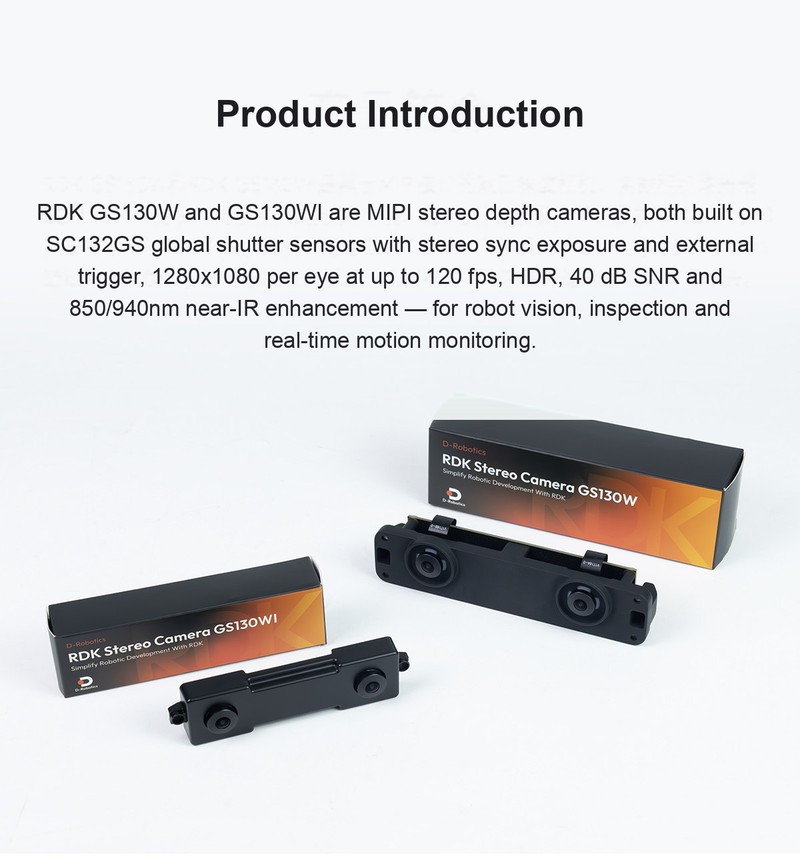

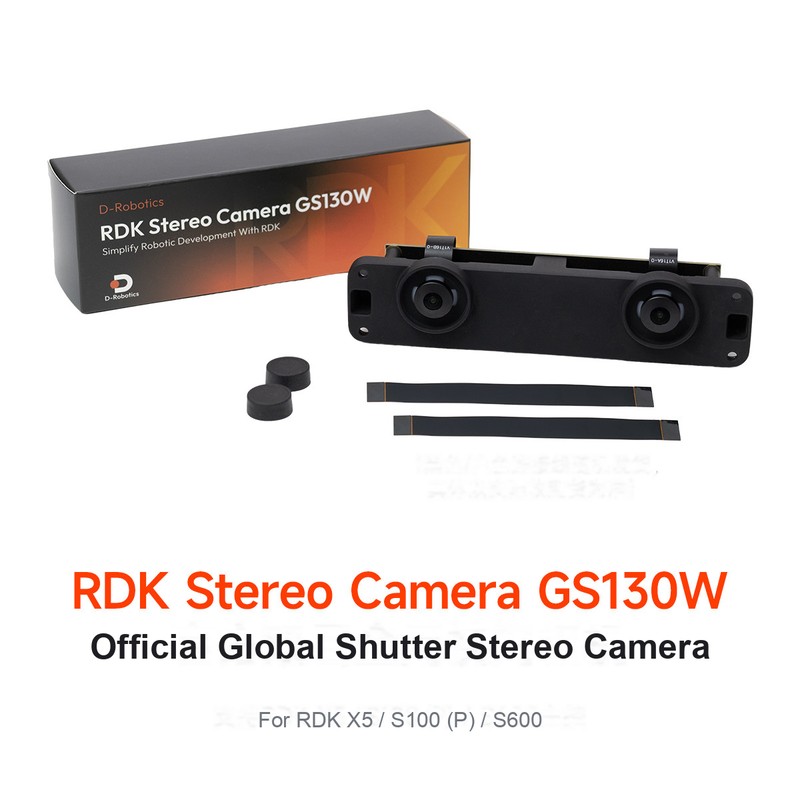

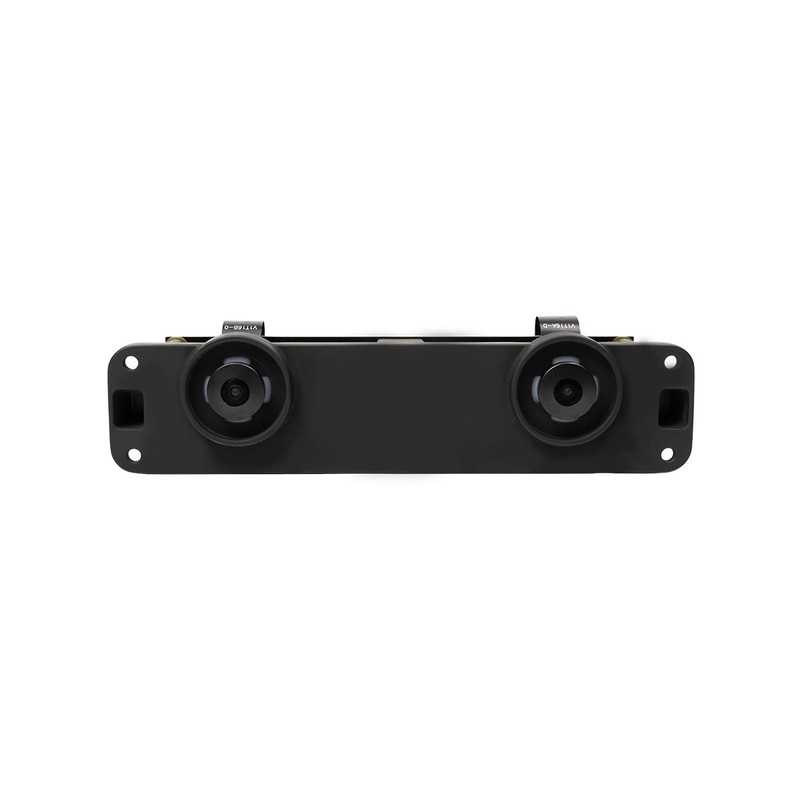

RDK Stereo Camera GS130W / GS130WI — official global-shutter stereo depth camera from D-Robotics for robot vision, machine vision inspection and real-time motion monitoring. Dual SC132GS global shutter sensors with stereo sync exposure and external trigger, 1280×1080@120fps, HDR, 40 dB SNR, 850/940nm near-IR enhancement; the GS130WI variant adds a 6-axis IMU. Compatible with RDK X5 / S100 (P) / S600 (W) and RDK X5 (WI). Supplied by NOST as your China sourcing partner — cameras and accessories available for bulk inquiry.
Specifications
| Sensor | 2x SmartSens SC132GS global-shutter sensors, 1.3 MP (1280 x 1080 per channel), HDR, 40dB SNR, 850/940nm near-IR enhancement; GS130WI variant adds TDK InvenSense ICM-42688-P 6-axis IMU |

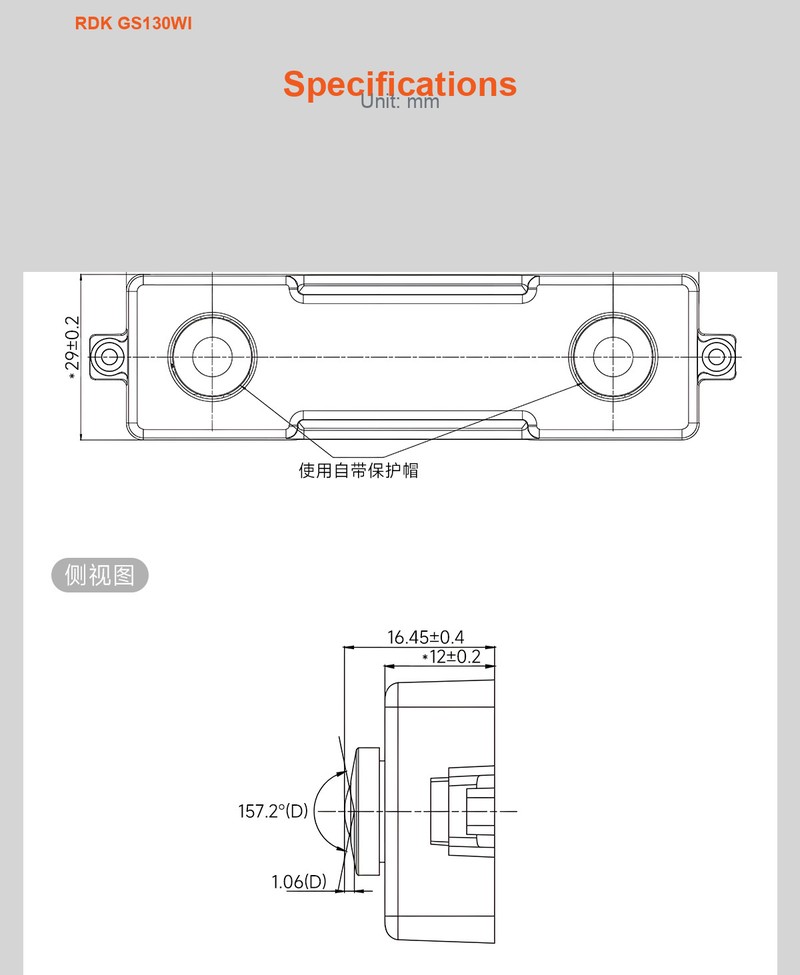

| FOV options | GS130W: H 115.6 / V 96.8 / D 157.2 degrees; GS130WI: H 96.8 / V 115.6 / D 157.2 degrees |

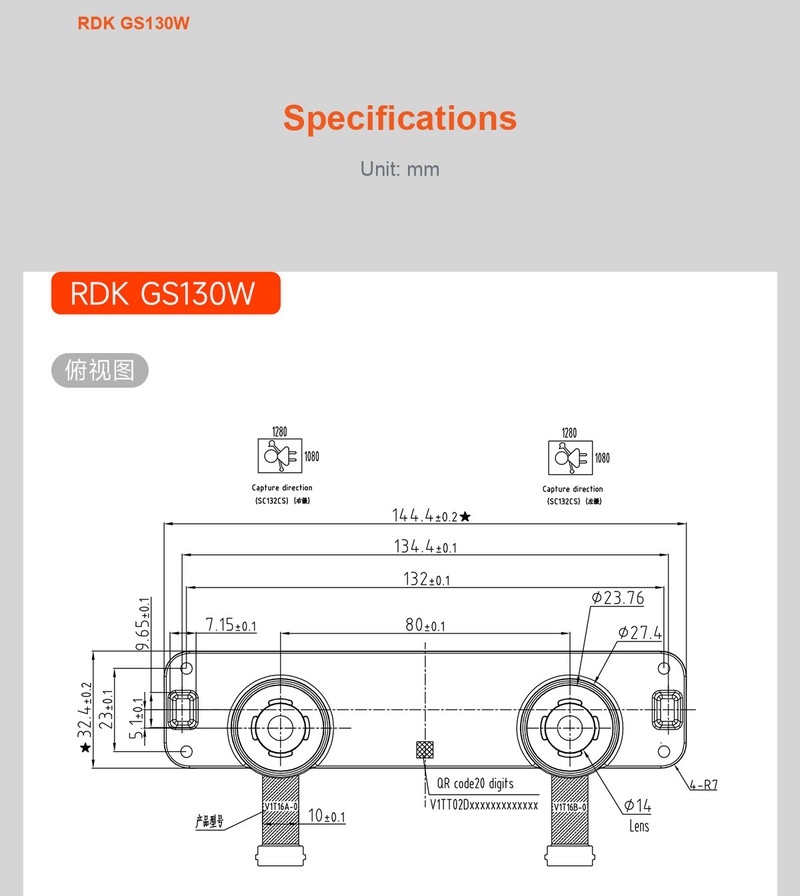

| Baseline / Frame Rate | Stereo baseline 80mm (GS130W) / 70mm (GS130WI); up to 120 fps; RAW RGB 12/10/8-bit output; synchronized stereo exposure with external trigger |
| Interface | 2x MIPI CSI-2 2-lane (max 2.4 Gbps per lane pair); external interrupt interface (GS130WI) |

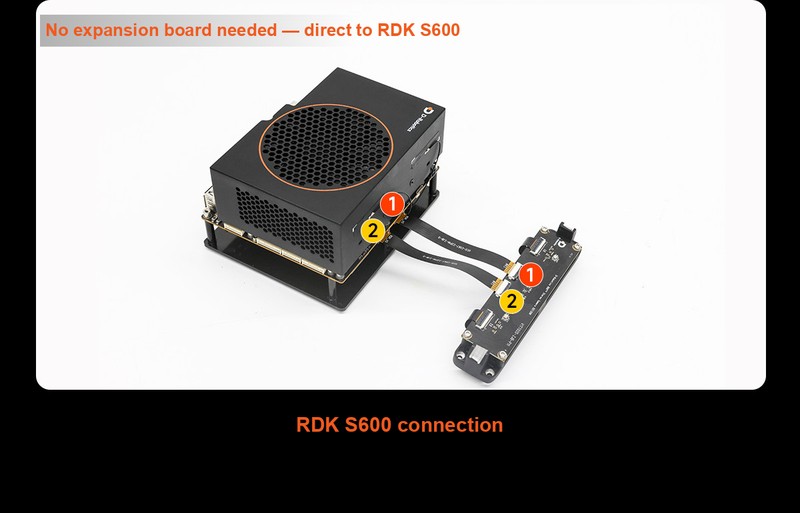

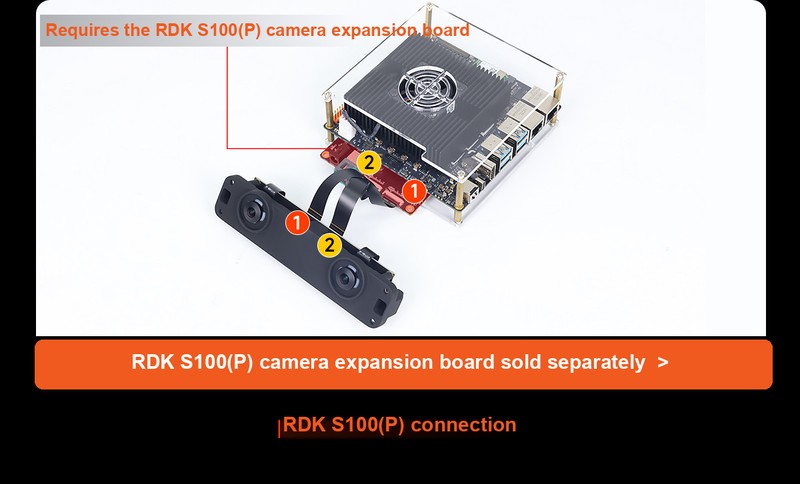

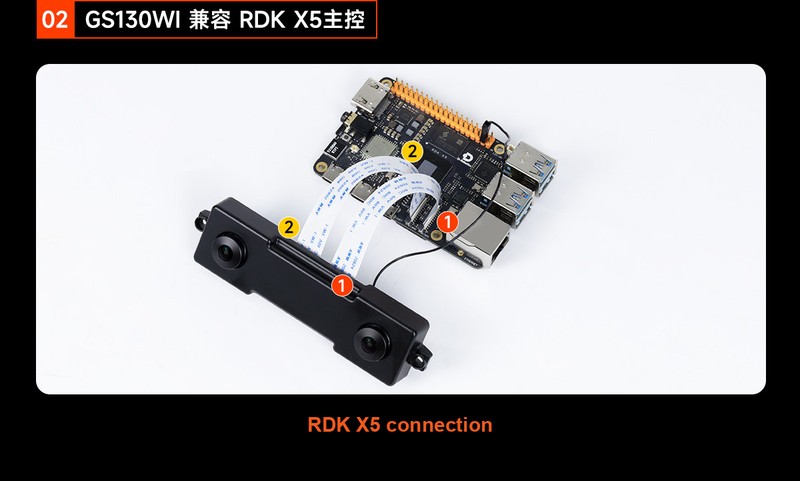

| Compatibility | RDK X5 (native), RDK X5 Module (with official carrier board), RDK S100/S100P (with camera expansion board), RDK S600; not supported on RDK X3 (single MIPI) |
